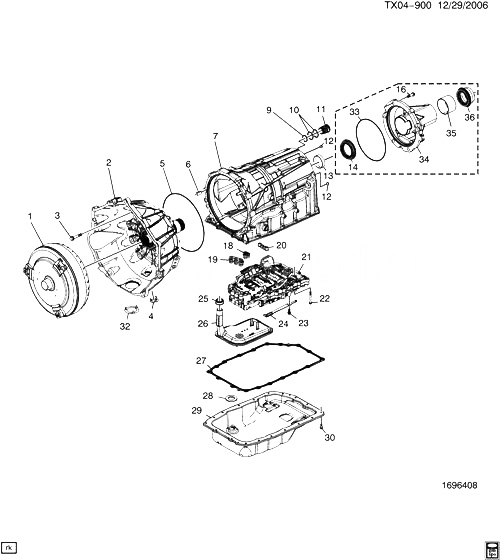

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
17804387 |
CONVERTER, TORQ (REMAN) |
N2 (MYC) |
2008-2009 |
01 |
| 002 |
|
HOUSING, T/CV (W/ ГИДРОНАСОС) (SEE GROUP 04.000 TORQUE CONVERTOR HOUSING AND ГИДРОНАСОС FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2009 |
|
| 003 |
24224574 |
БОЛТ, T/CV HSG |
N2 (MYC) |
2008-2009 |
09 |
| 004 |
24205900 |
COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900)
| N2 (MYC) |
2008-2009 |
01 |
|
| 005 |
24224577 |
SEAL, A/TRNS ГИДРОНАСОС |
N2 (MYC) |
2008-2009 |
01 |
| 006 |
90351710 |
PIN, T/CV HSG LOC (0.293) |
N2 (MYC) |
2008-2009 |
01 |
| 007 |
24237785 |
CASE, A/TRNS (INCLS 12, 13) (ACDelco #24237785) |
N2 (MYC) |
2008-2009 |
01 |
| 009 |
|
SEAL, A/TRNS WRG CONN (*KIT1, KIT2) |
|
2008-2009 |
|
| 010 |
|
SEAL, A/TRNS WRG CONN (O RING) (*KIT1, KIT2) |
|
2008-2009 |
|
| 011 |
24239878 |
SLEEVE, A/TRNS ELEC CONN PASG
| N2 (MYC) |
2008-2009 |
01 |
|
| 012 |
|
PLUG, A/TRNS CASE (PART OF 7) |
|
2008-2009 |
|
| 013 |
|
BUSHING, OUTPUT SHF (PART OF 7) |
|
2008-2009 |
|
| 014 |
24238076 |
SEAL, OUTPUT SHF |
N2 (MYC) |
2008-2009 |
01 |
| 016 |
11515768 |
БОЛТ, HFH, REDUCED BODY, M10X1.5X40, 30THD, 22.3 O.D., HDR PT, 10.9, 7114M (A/TRNS CASE EXTN)
|
2008-2009 |
06 |
|
| 018 |
|
SEAL, A/TRNS ГИДРОНАСОС (*KIT1, KIT2) |
|
2008-2009 |
|
| 019 |
|
SEAL, A/TRNS ГИДРОНАСОС (*KIT1, KIT2) |
|
2008-2009 |
|
| 020 |
|
SEAL, CTR SUPT FLUID PASG (*KIT1, KIT2) |
|
2008-2009 |
|
| 021 |
|
VALVE, CONT (W/BODY ; VLV) (SEE GROUP 04.000 КЛАПАН УПРАВЛЕНИЯ FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2009 |
|
| 022 |
24237181 |
БОЛТ, VLV BODY (M5X0.8X73.0) |
N2 (MYC) |
2008-2009 |
06 |
| 023 |
24231074 |
БОЛТ, MAN SHFT DTNT (M10X1X14.5) |
N257 (MYC) |
2008-2008 |
01 |
| 024 |
24222646 |
DETENT, MAN SHFT (W/8MM DIA. ROLLER) (ACDelco #24222646) |
N2 (L92, MYC) |
2008-2008 |
01 |
| 025 |
|
SEAL, A/TRNS FLUID FLTR (PART OF 26) |
|
2008-2009 |
|
| 026 |
24236933 |
FILTER KIT, A/TRNS FLUID (INCLS 25) (ACDelco #24236933)
| N2 (MYC) |
2008-2009 |
01 |
|
| 027 |
24224781 |
GASKET, A/TRNS FLUID PAN (ACDelco #24224781)
| N2 (MYC) |
2008-2009 |
01 |
|
| 028 |
29535617 |
MAGNET, A/TRNS FLUID PAN (4.105) (ACDelco #29535617)
| N2 (MYC) |
2008-2009 |
01 |
|
| 029 |
24222657 |
PAN, A/TRNS FLUID (WITHOUT PLUG AND GASKET) (ACDelco #24222657) |
N2 (MYC) |
2008-2009 |
01 |
| 030 |
11569816 |
БОЛТ, HFH, M6X1X19, 11.5 THD, 14.2 OD, 8.8 STL, GMW3359-BLACK, MAT POINT (A/TRNS FLUID PAN) |
|
2008-2009 |
18 |
| 032 |
24205900 |
COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900)
| N2 (MYC) |
2008-2009 |
01 |
|
| 033 |
|
SEAL, A/TRNS CASE EXTN |
|
2008-2009 |
|
| 034 |
|
EXTENSION, A/TRNS CASE |
|
2008-2009 |
|
| 035 |
|
BUSHING, PROP SHF FRT SLIP YOKE |
|
2008-2009 |
|
| 036 |
|
SEAL, PROP SHF FRT SLIP YOKE OIL |
|
2008-2009 |
|
| K01 |
24236927 |
SEAL KIT, A/TRNS SERV (INCLS 9, 10, 18-20) (CNTRL SOL VLV ASM) (ACDelco #24236927)
| N2 (MYC) |
2008-2009 |
01 |
|
| K02 |
24248578 |
SEAL KIT, A/TRNS SERV (INCLS 9, 10, 18-20) (FULL TRANS) (ACDelco #24248578) |
N2 (MYC) |
2008-2008 |
01 |
