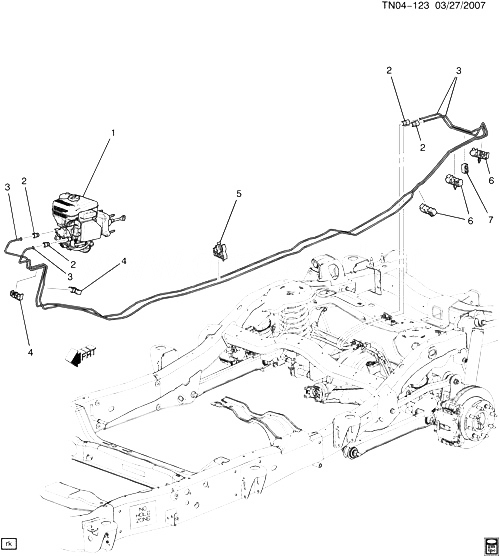

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
CYLINDER, BRK MAS (W/ P/B BOOS ; CHAS CONT MDL) (SEE GROUP 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2009 |
|
| 002 |
11518522 |
NUT, HX FLARED TUBE, M12X1.0X20.5, 11 TUBE, SAE1010, GMW4707M (RR BRK PIPE) |
|
2008-2009 |
04 |
| 003 |
88936298 |
PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (RR BRK) |
|
2008-2009 |
AR |
| 004 |
|
CLIP, BRK PIPE |
|
2008-2009 |
|
| 005 |
11561771 |
CLIP, RR BRK FRT PIPE |
N257 (JH6) |
2008-2009 |
12 |
| 006 |
11561769 |
CLIP, RR BRK FRT PIPE |
N257 (JH6) |
2008-2009 |
03 |
| 007 |
11561578 |
CLIP, RR BRK FRT PIPE (31.72X17.07X15.0) (HOLDS (2) 6.75 TUBES, ROUTING CLIP) |
N2 (JH6) |
2008-2009 |
01 |
