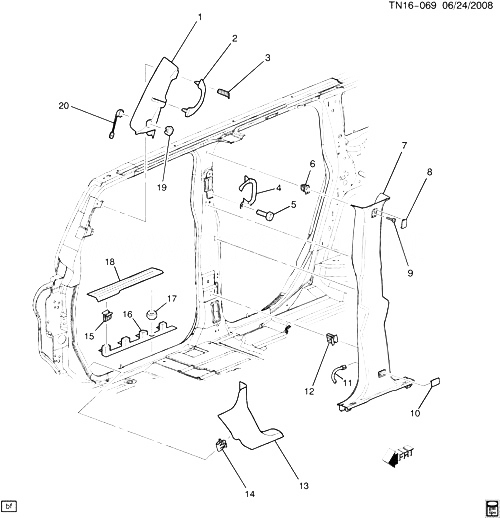

(TN16-069) - 2003-2007 N2(06) ОТДЕЛКА-ИНТЕРЬЕР-FRONT HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10369089 MOLDING, W/S SI GARN (INCLS 19, 20) (EBONY) N2 2005-2007 01
001 10369091 MOLDING, W/S SI GARN (INCLS 19, 20) (EBONY) N2 2005-2007 01
002 15115155 HANDLE, ASST (INCLS 3) (EBONY) N257 2005-2007 02
003 RETAINER, ASST HDL (PUSH ON) (PART OF 2) 2003-2007
004 21998342 HANDLE, C/PLR ASST (EBONY) N2 2005-2007 01
004 21998343 HANDLE, C/PLR ASST (EBONY) N2 2005-2007 01
005 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (C/PLR ASST HDL) 2003-2007 04
006 11609651 NUT, C/PLR T/PNL (PART OF 7) (M21.8X15.0X20.5) (14.731) N2 2006-2007 02
007 15233382 MOLDING, C/PLR GARN (INCLS 6, 8, 9, 12) (EBONY) N2 2006-2007 01
007 15233384 MOLDING, C/PLR GARN (INCLS 6, 8, 9, 12) (EBONY) N2 2006-2007 01
008 89024372 COVER, C/PLR UPR T/PNL BOLT (PART OF 7) (EBONY) (CAP COVER) N2 2006-2007 02
009 11516619 БОЛТ, HFH, M4.2X1.41X30, 21 THD, 12.5 OD, 6010M, 7153M (PART OF 7) (8.977) 2003-2007 02
010 12166036 SOCKET, C/LP (B PILLAR) (CLEAR) (W/LEADS ; LENS) (10.275) (ACDelco #LS66) N257 (06-36) 2005-2007 02
011 HARNESS, BODY WRG (SEE GROUP 02.000 ПРОВОДКА-КУЗОВ FOR DETAILED ILLUSTRATED VIEW) 2003-2007
012 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 7) 2003-2007 06
013 10392646 PANEL, BODY H/PLR TR (INCLS 14) (EBONY) N2 2005-2007 01
013 15241327 PANEL, BODY H/PLR TR (INCLS 14) (EBONY) N2 2006-2007 01
014 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 13) 2003-2007 02
015 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 18) 2003-2007 08
016 15184869 BRACKET, FRT S/D SILL TR PLT N2 2003-2007 02
017 21011332 ГАЙКА, HEX STAMPED TY DF FLG 14 (FRT S/D SILL TR PLT BRKT) (8.921) 2003-2007 08
018 10392640 PLATE, FRT S/D SILL TR (INCLS 15) (EBONY) N2 2005-2007 01
018 10392642 PLATE, FRT S/D SILL TR (INCLS 15) (EBONY) N2 2005-2007 01
019 RETAINER, RDO W/S SI G/MLDG SPKR (PART OF 1) 2003-2007
020 10369087 ДИНАМИК, RDO W/S SI G/MLDG (PART OF 1) (TWEETER) N257 2003-2007 02
