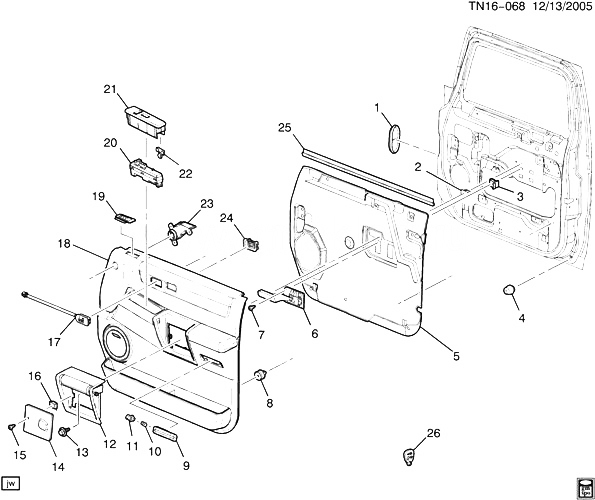

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15771323 |
PLUG, FRT S/D CHK LINK |
N2 |
2005-2007 |
02 |
| 002 |
11519497 |
NUT, PUSH IN, SPECIAL, 4.2X1.4 SINGLE THREAD, SAE 1050 STL, GM7111M (FRT S/D TR PNL)
|
2005-2007 |
02 |
|
| 003 |
11517769 |
NUT-PANEL, M6X1, 12.7X19.9 SLOT, .7-1 PANEL, 1050, 7111M, 2/RETENT TABS (FRT S/D I/S HDL) |
|
2005-2007 |
01 |
| 004 |
15039965 |
BUMPER, FRT S/D |
N2 |
2005-2007 |
02 |
| 005 |
15779319 |
DEFLECTOR, FRT S/D WAT |
N257 (06-36) |
2005-2007 |
01 |
| 006 |
15130012 |
HANDLE, FRT S/D I/S (CHROME) |
N2 (Y91) |
2005-2007 |
01 |
| 006 |
15186043 |
HANDLE, FRT S/D I/S (EBONY) |
N2 (EXC Y91) |
2005-2007 |
01 |
| 007 |
11518297 |
BOLT-HEX, M6X1X18, 10 THD, 17 OD, 9.8, 7114M, MACH, DOG-PT, 6175M ADH ON THD (FRT S/D I/S HDL) |
|
2005-2007 |
04 |
| 008 |
11519032 |
RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (PART OF 18)
|
2005-2007 |
05 |
|
| 009 |
15021518 |
LAMP, FRT S/D CTSY (INCLS 10, 11) (RED AND CLEAR) (INCLUDES SOCKET AND BULB) |
N257 (06-36) |
2005-2007 |
01 |
| 010 |
09425542 |
BULB, LAMP #192 (PART OF 9) (ACDelco #L168) |
|
2005-2007 |
01 |
| 011 |
|
SOCKET, FRT S/D CTSY) (PART OF 9) |
|
2005-2007 |
|
| 012 |
10376209 |
BEZEL, FRT S/D I/S HDL (PART OF 18) (EBONY) (INCLS PULL BAR) |
N257 (Y91, 48I) |
2005-2007 |
02 |
| 012 |
10376210 |
BEZEL, FRT S/D I/S HDL (PART OF 18) (EBONY) (INCLS PULL HANDLE) |
N257 (50I) (EXC Y91) |
2005-2007 |
02 |
| 013 |
11589010 |
SCREW, M4.2X1.4X13 HWH W/FL WA 12.5-OD 6010M TAP GMW4205, BR-PT. (FRT S/D T/PNL) |
|
2005-2007 |
04 |
| 014 |
15129833 |
BEZEL, FRT S/D I/S HDL (EBONY) (CLOSEOUT PLATE)
| N2 |
2005-2007 |
01 |
|
| 015 |
11515894 |
SCREW, RD WA HD, C/R, M4.2X1.41X20, 6010M, PEOR, 15.5 THD, AB PT, 8.4 OD (FRT S/D I/S HDL BZL)
|
2005-2007 |
01 |
|
| 016 |
11513599 |
ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (PART OF 18) (ACDelco #11513599) |
|
2005-2007 |
01 |
| 017 |
15117124 |
SWITCH, P/SEAT HTR |
N2 |
2005-2007 |
01 |
| 018 |
15846874 |
PANEL, FRT S/D TR (INCLS 8, 12, 16, 19, 23) (WHEAT) |
N2 (50I) (EXC Y91) |
2005-2007 |
01 |
| 018 |
15846878 |
PANEL, FRT S/D TR (INCLS 8, 12, 16, 19, 23) (EBONY) |
N2 (Y91, 48I) |
2005-2007 |
01 |
| 019 |
88954389 |
GRILLE, FRT S/D AIR OTLT (PART OF 18) |
N2 |
2005-2007 |
01 |
| 020 |
19115820 |
SWITCH, DR LK ; SI WDO (INCLS 26) (FRT S/D PASS SI) (INCLS MODULE) |
N2 |
2005-2007 |
01 |
| 021 |
15103770 |
BEZEL, SI WDO ; DR LK SW (INCLS 22) |
N257 |
2005-2007 |
01 |
| 022 |
15594543 |
RETAINER, SI WDO SW BZL (PART OF 21) (12.7 X 10.4) (9.665)
| N2 |
2005-2007 |
02 |
|
| 023 |
88954391 |
DUCT, FRT S/D AIR (PART OF 18) |
N2 |
2005-2007 |
01 |
| 024 |
15176140 |
LEVER, FRT S/D LK
| N2 |
2005-2007 |
02 |
|
| 025 |
15223812 |
SEALING STRIP, FRT S/D WDO INR
| N257 (06-36) |
2005-2007 |
01 |
|
| 026 |
21997127 |
TRANSMITTER, R/CON DR LK (PART OF 20) (REQUIRES DEALER PROGRAMMING) (SERVICES FOB #1 ; FOB #2) (PARTS LABELED W/OEM 15132197 ; 15132198) (NEW PART CAN BE USED IF OEM P/NS ARE NOT AVAILABLE)
| N2 |
2005-2007 |
02 |
|
