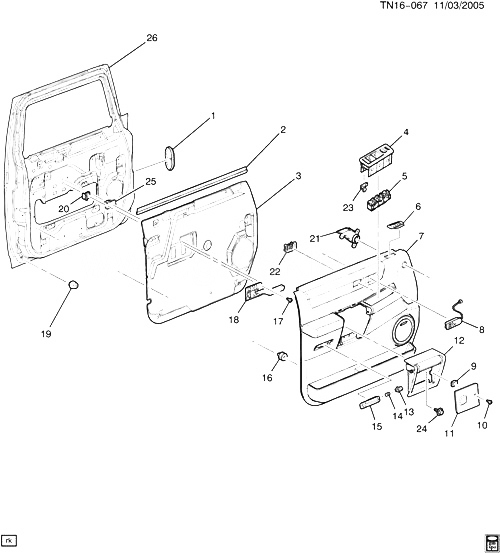

(TN16-067) - 2005-2007 N2 ПЕРЕДНЯЯ БОКОВАЯ ДВЕРЬ-DRIVER HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15771323 PLUG, FRT S/D CHK LINK N2 2005-2007 02
002 15223811 SEALING STRIP, FRT S/D WDO INR N257 (06-36) 2005-2007 01
003 15779318 DEFLECTOR, FRT S/D WAT N257 (06-36) 2005-2007 01
004 15103769 BEZEL, SI WDO ; DR LK SW (INCLS 23) N257 2005-2007 01
005 15883429 SWITCH, DR LK ; SI WDO N2 2005-2007 01
006 88954390 GRILLE, FRT S/D AIR OTLT (PART OF 7) N2 2005-2007 01
007 15846872 PANEL, FRT S/D TR (INCLS 6, 9, 12, 16, 21) (WHEAT) N2 (50I) (EXC Y91) 2005-2007 01
007 15846876 PANEL, FRT S/D TR (INCLS 6, 9, 12, 16, 21) (EBONY) N257 (Y91, 48I) 2005-2007 01
008 15117125 SWITCH, D/SEAT ADJR MEMORY ; HTR N257 2005-2007 01
008 15117125 SWITCH, D/SEAT ADJR MEMORY ; HTR (16.682) N257 2005-2007 01
009 11513599 ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (PART OF 7) (ACDelco #11513599) 2005-2007 02
010 11515894 SCREW, RD WA HD, C/R, M4.2X1.41X20, 6010M, PEOR, 15.5 THD, AB PT, 8.4 OD (FRT S/D I/S HDL BZL) 2005-2007 02
011 15129832 BEZEL, FRT S/D I/S HDL (EBONY) (CLOSEOUT PLATE) N2 2005-2007 01
012 10376209 BEZEL, FRT S/D I/S HDL (PART OF 7) (EBONY) (INCLS PULL BAR) N257 (Y91, 48I) 2005-2007 02
012 10376210 BEZEL, FRT S/D I/S HDL (PART OF 7) (EBONY) (INCLS PULL HANDLE) N257 (50I) (EXC Y91) 2005-2007 02
013 SOCKET, FRT S/D CTSY) (PART OF 15) (06) 2005-2007
014 09425542 BULB, LAMP #192 (PART OF 15) (ACDelco #L168) 2005-2007 01
015 15021517 LAMP, FRT S/D CTSY (INCLS 13, 14) (RED AND CLEAR) (INCLUDES SOCKET AND BULB) N257 (06-36) 2005-2007 01
016 11519032 RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (PART OF 7) 2005-2007 05
017 11518297 BOLT-HEX, M6X1X18, 10 THD, 17 OD, 9.8, 7114M, MACH, DOG-PT, 6175M ADH ON THD (FRT S/D I/S HDL) 2005-2007 04
018 15130013 HANDLE, FRT S/D I/S (CHROME) N2 (Y91) 2005-2007 01
018 15186042 HANDLE, FRT S/D I/S (EBONY) N2 (EXC Y91) 2005-2007 01
019 15039965 BUMPER, FRT S/D N2 2005-2007 02
020 11519497 NUT, PUSH IN, SPECIAL, 4.2X1.4 SINGLE THREAD, SAE 1050 STL, GM7111M (FRT S/D TR PNL) 2005-2007 04
021 88954392 DUCT, FRT S/D AIR (PART OF 7) N2 2005-2007 01
022 15176140 LEVER, FRT S/D LK N2 2005-2007 02
023 15594543 RETAINER, SI WDO SW BZL (PART OF 4) (12.7 X 10.4) (9.665) N2 2005-2007 02
024 11589010 SCREW, M4.2X1.4X13 HWH W/FL WA 12.5-OD 6010M TAP GMW4205, BR-PT. (FRT S/D T/PNL) 2005-2007 04
025 11519497 NUT, PUSH IN, SPECIAL, 4.2X1.4 SINGLE THREAD, SAE 1050 STL, GM7111M (FRT S/D TR PNL) 2005-2007 01
026 25887984 ДВЕРЬ, ПЕРЕДНЯЯ SI (SEE GROUP 16.000 КУЗОВ-БОКОВЫЕ ДЕТАЛИ FOR DETAILED ILLUSTRATED VIEW) N2 2005-2007 01
