| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

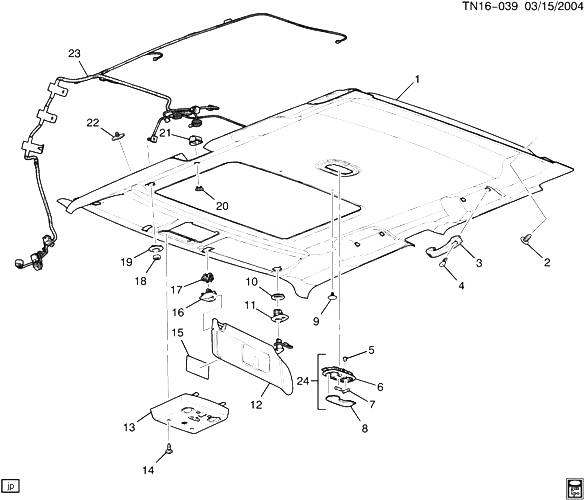

| 001 |
15938022 |
PANEL, HDLNG TR (INCLS 2-21, 23, 24) (GRAY) |
N257 (36) |
2007-2007 |
01 |
| 002 |
11588305 |
RETAINER, HDLNG T/PNL (PUSH IN) (PART OF 1) (TO КРЫША С ЛЮКОМ MODULE) |
N257 (06-36) |
2005-2007 |
02 |
| 003 |
15079241 |
HANDLE, ASST (RR HEADLINER) (PART OF 1) (INCLS 4) (GRAY) (INCLS COAT HOOK) |
N2 |
2005-2007 |
01 |
| 003 |
15079242 |
HANDLE, ASST (RR HEADLINER) (PART OF 1) (INCLS 4) (GRAY) (INCLS COAT HOOK) |
N2 |
2005-2007 |
01 |
| 004 |
|
RETAINER, ASST HDL (PUSH ON) (PART OF 1, 3) |
|
2005-2007 |
|
| 005 |
15166059 |
PUSHBUTTON, RDG LP SW (PART OF 1, 24) (EBONY) |
N2 |
2005-2007 |
02 |
| 006 |
15032587 |
HOUSING, DM ; RDG LP (INCLS 7) (PART OF 1, 24) |
N2 |
2005-2007 |
01 |
| 007 |
12450074 |
BULB, TRADE #578 (PART OF 1, 6, 24) (ACDelco #578)
|
2005-2007 |
03 |
|
| 008 |
15032588 |
LENS, DM ; RDG LP (PART OF 1, 24) (3 BULB STYLE) |
N2 |
2005-2007 |
01 |
| 009 |
11588305 |
RETAINER, HDLNG T/PNL (PUSH IN) (PART OF 1) (TO КРЫША С ЛЮКОМ MODULE) |
N257 (06-36) |
2005-2007 |
02 |
| 010 |
|
CLIP, S/S SUPT (PART OF 1, 12) |
|
2005-2007 |
|
| 011 |
|
BEZEL, S/S ROD (PART OF 1, 12) |
|
2005-2007 |
|
| 012 |
15938026 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 10, 11, 15) (PART OF 1) (GRAY) |
N2 (36) (50I) |
2005-2007 |
01 |
| 012 |
15938027 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 10, 11, 15) (PART OF 1) (GRAY) |
N2 (06-36) (DK6, DK8, 50I) |
2005-2007 |
01 |
| 013 |
10358690 |
CONSOLE, RF (PART OF 1) (SEE GROUP 16.000 КОНСОЛЬ-КРЫША FOR DETAILED ILLUSTRATED VIEW) (GRAY) (SHORT CONSOLE) (USE T/W 19122215 FOR SPECIAL EDITION VEHS) |
N2 (CF5, DK8, 50I) |
2005-2007 |
01 |
| 013 |
15222133 |
CONSOLE, RF (PART OF 1) (SEE GROUP 16.000 КОНСОЛЬ-КРЫША FOR DETAILED ILLUSTRATED VIEW) (GRAY) (LONG CNSL) (USE T/W 19122215 FOR SPECIAL EDITION VEHS)
| N2 (DK6, 50I) (EXC CF5) |
2005-2007 |
01 |
|
| 014 |
|
БОЛТ, RF CONSOLE (PART OF 1) |
|
2005-2007 |
|
| 015 |
|
LABEL, INFL RST SYS WRNG (PART OF 1, 12) |
|
2007-2007 |
|
| 016 |
15877252 |
RETAINER, S/S (PART OF 1) (GRAY) |
N2 (50I) |
2005-2007 |
01 |
| 016 |
15877253 |
RETAINER, S/S (PART OF 1) (GRAY) |
N2 (50I) |
2005-2007 |
01 |
| 017 |
|
RETAINER, S/S (PART OF 1) |
|
2005-2007 |
|
| 018 |
15264477 |
MICROPHONE, MOBILE TEL (PART OF 1) (GRAY) |
N257 |
2005-2007 |
01 |
| 019 |
22666403 |
BEZEL, MOBILE TEL MIC (PART OF 1) (GRAY) |
N257 |
2005-2007 |
01 |
| 020 |
15075507 |
GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 1) (GRAY) |
N2 |
2005-2007 |
01 |
| 021 |
25903301 |
ASPIRATOR, I/S AIR TEMP SEN (PART OF 1) (ACDelco #15-51256)
| N2 |
2005-2007 |
01 |
|
| 022 |
15763887 |
RETAINER, HDLNG FRT T/PNL (BLACK) (SQ 26.0 X DIA 7.89) (W/VELCRO) |
N257 (36) |
2005-2007 |
02 |
| 023 |
|
HARNESS, RF ACSRY WRG (PART OF 1) |
|
2005-2007 |
|
| 024 |
15166932 |
LAMP, DM ; RDG (INCLS 5-8, PART OF 1) (GRAY) |
N2 |
2005-2007 |
01 |
