| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
89024882 |

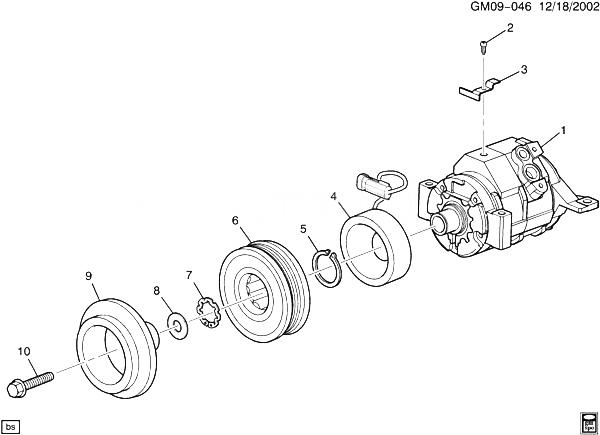

COMPRESSOR KIT, A/C (INCLS 2-10) (8.0 OZ. OIL SERVICE COMP KIT) (ACDelco #89024882)
| N2 |
2003-2007 |
01 |
|
| 002 |
|
БОЛТ, A/C CMPR BR (PART OF 1) (*KIT1) |
|
2003-2009 |
|
| 003 |
|
BRACKET, A/C CMPR (PART OF 1) (*KIT1) |
|
2003-2009 |
|
| 004 |
|
COIL, A/C CLU (PART OF 1) (*KIT1) |
|
2003-2009 |
|
| 005 |
|
RING, A/C CLU COIL RET (PART OF 1) (*KIT1) |
|
2003-2009 |
|
| 006 |
|
BEARING, A/C CMPR PUL (PART OF 1) (*KIT1) |
|
2003-2009 |
|
| 007 |
|
RING, A/C CMPR PUL BRG RET (PART OF 1) (*KIT1) |
|
2003-2009 |
|
| 008 |
|
WASHER, A/C CMPR PUL (PART OF 1) (*KIT1) |
|
2003-2009 |
|
| 009 |
|
CLUTCH, A/C (PART OF 1) (*KIT1) |
|
2003-2009 |
|
| 010 |
11561365 |
БОЛТ, A/C CMPR PUL (PART OF 1) (*KIT1) |
N257 |
2003-2009 |
01 |
| K01 |
12476085 |
CLUTCH KIT, A/C (4 SPLINED, DENSO) (INCLS 2-10) (INCL PULLEY) (LOW MOUNT) (ACDelco #15-4709) |
N2 |
2003-2008 |
01 |
