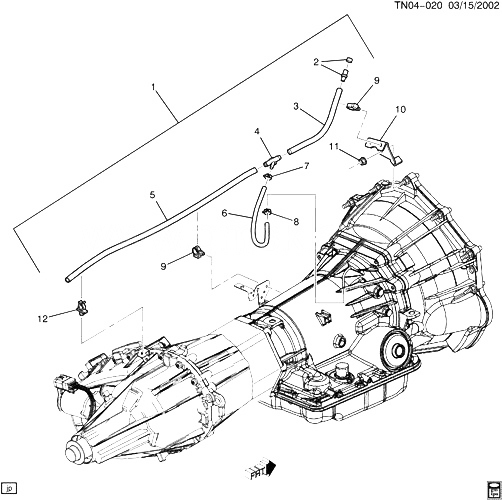

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15064719 |
HOSE, TRANS VENT (INCLS 2-9, 12) |
N257 (M32) |
2003-2007 |
01 |
| 002 |
15771000 |
VENT, TRFER CASE (4.104) (ACDelco #15771000)
| N2 (M32) |
2003-2007 |
01 |
|
| 003 |
|
HOSE, TRANS VENT |
|
2003-2007 |
|
| 004 |
|
CONNECTOR, TRANS VENT HOSE |
|
2003-2007 |
|
| 005 |
|
HOSE, TRANS VENT |
|
2003-2007 |
|
| 006 |
|
HOSE, TRANS VENT |
|
2003-2007 |
|
| 007 |
|
CLAMP, TRANS VENT HOSE |
|
2003-2007 |
|
| 008 |
|
CLAMP, TRANS VENT HOSE |
|
2003-2007 |
|
| 009 |
08905794 |
CLIP (TRANS VENT HOSE) |
|
2003-2007 |
02 |
| 010 |
15854320 |
BRACKET, TRANS VENT HOSE CLIP |
N2 (M32) |
2007-2007 |
01 |
| 011 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (TRANS VENT HOSE CLIP BRKT) (8.915) (ACDelco #11514596) |
|
2003-2007 |
01 |
| 012 |
10150076 |
RETAINER, TRANS VENT HOSE (18.8 MM DIA) (ROUND CLIP) (3.425) |
N257 (M32) |
2003-2007 |
01 |
