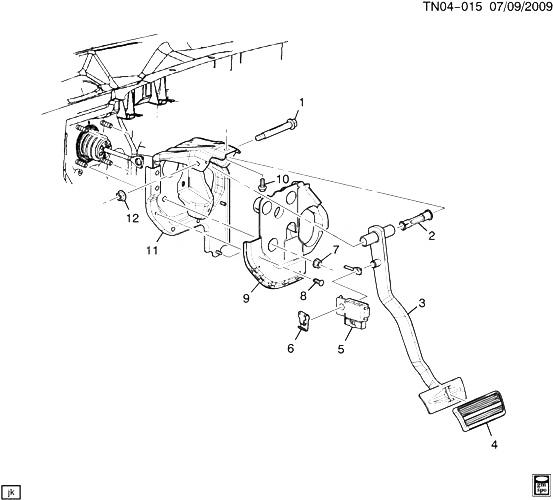

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15000145 |
БОЛТ, BRK PED PIV (12X1.75X120, 25) |
N2 (JH6) |
2003-2007 |
01 |
| 002 |
15157907 |
BUSHING, BRK PED PIV |
N257 (JH6) |
2003-2007 |
01 |
| 003 |
15734409 |
ПЕДАЛЬ, ТОРМОЗА |
N2 (JH6) |
2003-2007 |
01 |
| 004 |
15706042 |
COVER, BRK PED |
N257 (JH6) |
2003-2007 |
01 |
| 005 |
25771554 |
SWITCH, S/LP (ACDelco #D1588G)
| N2 |
2003-2007 |
01 |
|
| 006 |
11569844 |
RETAINER, BRK PED PUSH ROD (WITH BOLT) |
N2 (JH6) |
2007-2007 |
01 |
| 006 |
15048329 |
RETAINER, BRK PED PUSH ROD (29.13 MM) (WITHOUT BOLT) |
N257 (JH6) |
2003-2007 |
01 |
| 007 |
11517996 |
NUT, P/B BOOS (M10X1.5, 11.2 THK) (8.917)
| N2 (JH6) |
2003-2007 |
04 |
|
| 008 |
|
RETAINER, BRK ; ACCEL ; CLU PED BRKT INSL (PUSH IN) (PART OF 11) |
|
2006-2007 |
|
| 009 |
|
INSULATOR, DA PNL (PART OF 11) |
|
2003-2007 |
|
| 010 |
11515763 |
БОЛТ, HFH, M10X1.5X16, 21.5 O.D., MACH PT, 9.8, 7114 (BRK PED BRKT) |
|
2003-2007 |
01 |
| 010 |
89021297 |
ADHESIVE/SEALANT, THREADLOCKER HI STRENGTH 10ML ERI (BRK PED BRKT)
|
2003-2007 |
AR |
|
| 011 |
15827711 |
BRACKET, BRK ; ACCEL PED (INCLS 8, 9) |
N2 (JH6) |
2006-2007 |
01 |
| 012 |
11588927 |
ГАЙКА, HEX FLANGE, M12X1.75X12, 26 OD, 10, 7111M, PREVAILING TORQUE (BRK PED PIV) |
|
2003-2007 |
01 |
