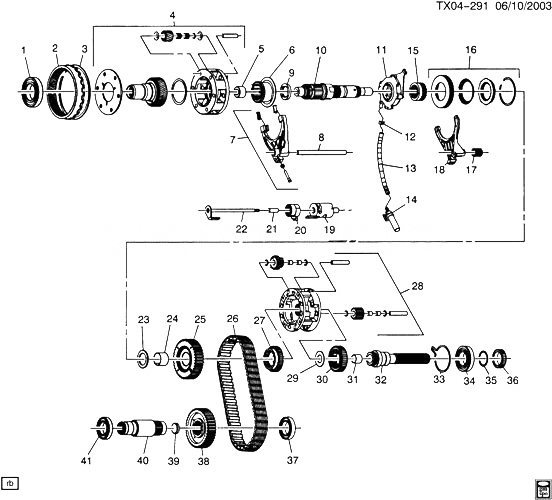

(TX04-291) - 2003-2007 N2 КАРТЕР И КРЫШКИ КОРОБКИ ПЕРЕДАЧ PART 2 INTERNAL COMPONENTS (BORG WARNER 4484) HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88984507 BEARING, TRFER CASE INPUT SHF (*KIT1) N257 (M32) 2003-2007 01
002 88984534 GEAR, TRFER CASE PLNT CARR INTL N257 (M32) 2003-2007 01
003 15580249 RING, TRFER CASE HIGH/LOW INT GR RET N257 (M32) 2003-2007 01
004 89059606 CARRIER, TRFER CASE HIGH/LOW PLNT N257 (M32) 2003-2007 01
005 12334624 BEARING, TRFER CASE MAIN SHF FRT (ACDelco #12334624) N257 (M32) 2003-2007 01
006 88996561 HUB, TRFER CASE HIGH/LOW CLU GR N257 (M32) 2003-2007 01
007 19167563 FORK, TRFER CASE HIGH/LOW SHFT N2 (MYC) 2007-2007 01
007 88996629 FORK, TRFER CASE HIGH/LOW SHFT N257 (M32) 2003-2007 01
008 88984531 SHAFT, TRFER CASE SHFT FORK N257 (M32) 2003-2007 01
009 89058756 WASHER, TRFER CASE INPUT SHF THR N257 (M32) 2003-2007 01
010 89059604 SHAFT, TRFER CASE INPUT N257 (M32) 2005-2007 01
011 89059682 PUMP, TRFER CASE OIL N257 (M32) 2006-2007 01
012 88984502 CLAMP, TRFER CASE O/PMP SUC HOSE N257 (M32) 2003-2007 01
013 88984498 HOSE, TRFER CASE O/PMP SUC (4.510) N257 (M32) 2003-2007 01
014 88984525 SCREEN, TRFER CASE O/PMP N257 (M32) 2003-2007 01
015 88996672 HUB, TRFER CASE TWO/FOUR WHL DRV CLU GR N257 (M32) 2003-2007 01
016 COLLAR, TRFER CASE SYN (*KIT3) 2003-2007
016 HUB, TRFER CASE TWO/FOUR WHL DRV SYN (*KIT3) 2003-2007
016 RING, TRFER CASE TWO/FOUR WHL DRV SYN RET (*KIT3) 2003-2007
016 88984512 SPRING, TRFER CASE TWO/FOUR WHL DRV SYN INS (*KIT3) N257 (M32) 2003-2007 01
017 15663532 SPRING, TRFER CASE SHFT FORK N257 (M32) 2003-2007 01
018 19180821 FORK, TRFER CASE TWO/FOUR WHL DRV SHFT N257 (M32) 2003-2007 01
019 88996628 LEVER, TRFER CASE SHFT DTNT N257 (M32) 2003-2007 01
020 88984497 SPRING, TRFER CASE HIGH/LOW SHFT FORK SHF DTNT N257 (M32) 2003-2007 01
021 88984496 SPACER, TRFER CASE SHFT DTNT LVR N257 (M32) 2003-2007 01
022 88984532 SHAFT, TRFER CASE SHFT DTNT LVR (4.555) N257 (M32) 2003-2007 01
023 88984518 WASHER, TRFER CASE FRT OUTPUT SHF DRVN SPKT THR N257 (M32) 2003-2007 01
024 19168732 BUSHING, TRFER CASE FRT OUTPUT SHF DRV SPKT (ACDelco #19168732) N257 (M32) 2003-2007 01
025 19167564 SPROCKET, TRFER CASE FRT OUTPUT SHF DRV N257 (06) (M32) 2003-2007 01
026 19151772 CHAIN, TRFER CASE TWO/FOUR WHL DRV N2 (M32) 2007-2007 01
027 88984523 GEAR, TRFER CASE PLNT CARR SUN (OUTPUT) N257 (06) (M32) 2003-2007 01
028 89059279 CARRIER, FRT/RR DRV DIFF N257 (M32) 2003-2007 01
029 89059525 WASHER, TRFER CASE PLNT CARR SUN GR THR N257 (M32) 2006-2007 01
030 88996595 GEAR, TRFER CASE PLNT CARR SUN (STEEL) N257 (06) (M32) 2003-2007 01
031 19168733 BUSHING, TRFER CASE RR OUTPUT SHF (PART OF 32) N257 (M32) 2003-2007 01
032 19168725 SHAFT, TRFER CASE RR OUTPUT (INCLS 31, 34-36) N257 (M32) 2006-2007 01
033 88984508 RING, TRFER CASE RR OUTPUT SHF RR BRG OTR RET (80MM I.D.) (4.535) N257 (M32) 2003-2007 01
034 88984506 BEARING, TRFER CASE RR OUTPUT SHF RR (PART OF 32) N257 (M32) 2003-2007 01
035 88984493 RING, TRFER CASE RR OUTPUT SHF RR BRG RET (PART OF 32) (41MM I.D.) (ACDelco #88984493) N257 (M32) 2005-2007 01
036 88984522 КОЛЕСО, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (PART OF 32) (4.329) N257 (06-36) 2005-2007 01
036 88984522 КОЛЕСО, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (PART OF 32) N257 (06-36) 2005-2007 01
037 88996564 BEARING, TRFER CASE FRT OUTPUT SHF DRV SPKT (*KIT2) N257 (M32) 2003-2007 02
038 88984540 SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN N257 (M32) 2003-2007 01
039 89059602 PLUG, TRFER CASE FRT OUTPUT SHF HOLE (PART OF 40) N257 (M32) 2005-2007 01
040 19153149 SHAFT, TRFER CASE FRT OUTPUT (INCLS 39) N257 (M32) 2007-2007 01
041 88996564 BEARING, TRFER CASE FRT OUTPUT SHF DRV SPKT (*KIT1) N257 (M32) 2003-2007 02
K01 19132936 CASE, TRFER (FRT HALF) (INCLS 1, 41) N257 (M32) 2006-2007 01
K02 19167206 CASE, TRFER (RR HALF) (INCLS 37) N257 (M32) 2007-2007 01
K03 89059281 COLLAR, TRFER CASE TWO/FOUR WHL DRV SYN (INCLS 16) N257 (M32) 2005-2007 01
