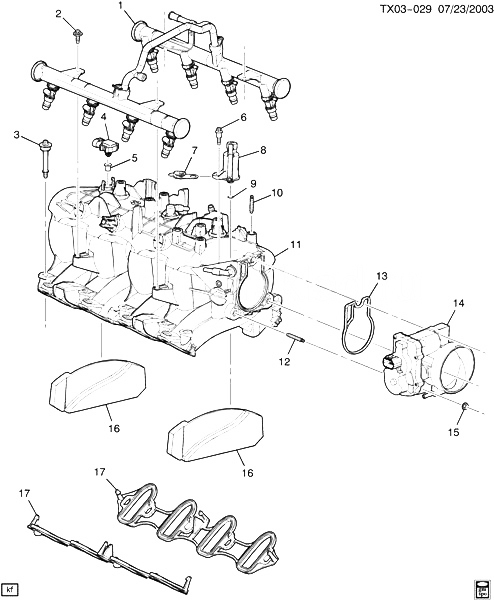

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
RAIL, SEQ M/PORT F/INJN FUEL (SEE GROUP 03.000 РАМА ТОПЛИВНОГО ИНЖЕКТОРА FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2007 |
|
| 002 |
|
БОЛТ, F/INJN FUEL RL (*KIT1) |
|
2004-2007 |
|
| 003 |
17122601 |
БОЛТ, INT MANIF (INSERT, UPPER MANIFOLD) (*KIT1) |
N257 (06-36) (LQ4) |
2005-2007 |
10 |
| 004 |
09359409 |
ДАТЧИК, MAP (INCLS SEAL) (INCLS 5) (ACDelco #9359409) |
N257 (06-36) |
2005-2007 |
01 |
| 005 |
16194007 |
SEAL, MAP SEN (PART OF 4)
| N257 (06-36) |
2005-2007 |
01 |
|
| 006 |
|
БОЛТ, EVAP EMIS CNSTE PURGE SOL VLV (PART OF 8) (*KIT1) |
|
2004-2007 |
|
| 007 |
|
INSULATOR, EVAP EMIS CNSTR PURGE SOL VLV (PART OF 8) (*KIT1) |
|
2004-2007 |
|
| 008 |
12581282 |
VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 6, 7, 9) (ACDelco #214-1105)
| N2 (LQ4) |
2004-2007 |
01 |
|
| 009 |
|
SEAL, EVAP EMIS CNSTR PURGE SOL VLV (O RING) (PART OF 8) |
|
2004-2007 |
|
| 010 |
|
LOCATOR, F/INJN FUEL RL CVR (*KIT1) |
|
2004-2007 |
|
| 011 |
89017363 |
MANIFOLD, INT (INCLS 15) |
N257 (06-36) (LQ4) |
2005-2007 |
01 |
| 012 |
89017691 |
STUD, THROT BODY (STRAIGHT, M6X1.0X26.5, M6X1.0X10, 46 TL, STEEL) |
N257 (06-36) (LQ4) |
2005-2007 |
03 |
| 013 |
17113561 |
SEAL, THROT BODY
| N257 (06-36) (LQ4) |
2005-2007 |
01 |
|
| 014 |
12570800 |
BODY, THROT (W/THROT ACTR) (ACDelco #217-2293)
| N257 (06-36) (LQ4) |
2005-2007 |
01 |
|
| 015 |
|
NUT, THROT BODY (PART OF 11) |
|
2004-2007 |
|
| 016 |
17113563 |
INSULATOR KIT, INT MANIF |
N257 (06-36) (LQ4, NC1, M32) |
2005-2007 |
01 |
| 017 |
89060413 |
GASKET KIT, INT MANIF
| N2 (LQ4) |
2004-2007 |
01 |
|
| 017 |
89060413 |
GASKET KIT, INT MANIF
| N257 (06-36) (LQ4) |
2005-2007 |
01 |
|
| K01 |
89017368 |
BOLT KIT, INT MANIF (INCLS 2, 3, 6, 7, 10) (KIT INCLS 5 BOLTS.TWO KITS REQD PER ДВИГАТЕЛЬ) |
N257 (06-36) (LQ4) |
2005-2007 |
01 |
