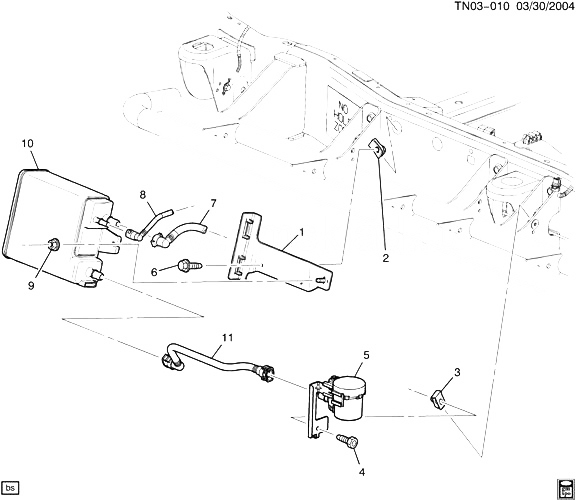

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
10350157 |
BRACKET, EVAP EMIS CNSTR SUPT |
N257 |
2005-2009 |
01 |
| 002 |
11516149 |
NUT, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (EVAP EMIS CNSTR BRKT)
|
2004-2009 |
02 |
|
| 003 |
11518444 |
NUT, U, M8X1.25, 25X14.2, 3.4-6.3 PNL, 1050, 6173M (EVAP EMIS CNSTR CONT VLV)
|
2004-2009 |
01 |
|
| 004 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (EVAP EMIS CNSTR CONT VLV) (ACDelco #11570082)
|
2004-2009 |
01 |
|
| 005 |
|
VALVE, EVAP EMIS CNSTR VENT SOL |
|
2004-2009 |
|
| 005 |
25932571 |
SOLENOID, EVAP EMIS CNSTR (ACDelco #214-2149)
| N2 (LQ4) |
2004-2007 |
01 |
|
| 006 |
11515758 |
БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (EVAP EMIS CNSTR BRKT)
|
2004-2009 |
02 |
|
| 007 |
|
HOSE, FUEL FEED ; EVAP EMIS ; RTN (SEE GROUP 03.000 ТОПЛИВНАЯ СИСТЕМА-FRONT FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2009 |
|
| 008 |
|
HOSE, EVAP EMIS (SEE GROUP 03.000 ТОПЛИВНЫЙ БАК FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2009 |
|
| 009 |
11517792 |
ГАЙКА, HEX W/FL WA, M8X1.25, 10.75 THK, 24 OD, 10, 7111M (EVAP EMIS CNSTR) |
|
2004-2009 |
01 |
| 010 |
12573649 |
CANISTER, EVAP EMIS (ACDelco #215-457)
| N2 (LQ4) |
2004-2007 |
01 |
|
| 011 |
|
HOSE, EVAP EMIS CNSTR VENT |
|
2004-2007 |
|
| 011 |
88963669 |
HOSE, EVAP EMIS CNSTR VENT (3.130) |
N2 (LQ4) |
2006-2007 |
01 |
