| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15830248 |

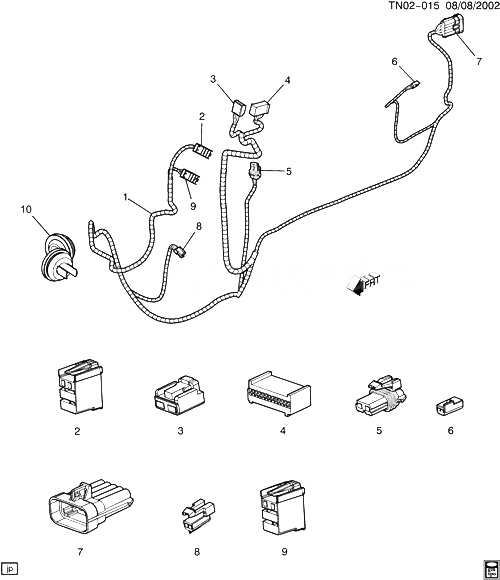

HARNESS, FRT S/D DR WRG (INCLS 2-10) |
N2 |
2006-2007 |
01 |
| 001 |
15830249 |
HARNESS, FRT S/D DR WRG (INCLS 2-10) |
N257 (06-36) |
2005-2007 |
01 |
| 002 |
15306107 |
CONNECTOR, GND BLK (PART OF 1) (BLACK) (6-WAY F W/LEADS) (2.530) (ACDelco #PT1268) |
N2 |
2003-2007 |
01 |
| 003 |
88986436 |
CONNECTOR, SW-SI WDO ; M/FUNC (PART OF 1) (4-WAY FEMALE W/LEADS) (10.777) |
N257 (06-36) |
2005-2007 |
01 |
| 004 |
88987996 |
CONNECTOR, SW-SI WDO ; M/FUNC (PART OF 1) (26-WAY FEMALE) (W/O LEADS) (WITH THREE RETAINERS W/LEVERS) |
N2 |
2007-2007 |
01 |
| 005 |
88988609 |
CONNECTOR, MOT-WDO REG (PART OF 1) (GRAY) (2-WAY FEMALE) (W/LEADS) (10.783) (ACDelco #PT2072) |
N257 (06-36) |
2005-2007 |
AR |
| 006 |
12166036 |
CONNECTOR, LP-CTSY (PART OF 1) (CLEAR) (W/LEADS ; LENS) (10.275) (ACDelco #LS66) |
N257 (36) |
2006-2007 |
02 |
| 009 |
15306198 |
CONNECTOR, BLK-I/P WRG JUNC (PART OF 1) (BLACK) (12-WAY FEMALE W/LEADS) (ACDelco #PT1353) |
N257 (06-36) |
2005-2007 |
01 |
| 010 |
15369323 |
GROMMET, FRT S/D DR WRG HARN (PART OF 1) |
N257 |
2003-2007 |
02 |
