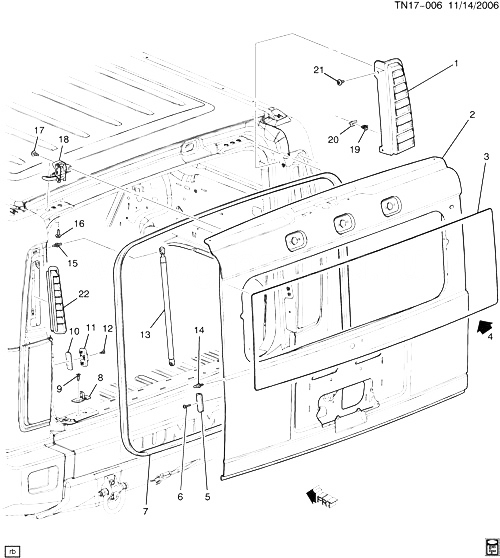

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15206328 |
APPLIQUE, Q/PNL UPR (INCLS 19) |
N2 (06) |
2003-2009 |
01 |
| 001 |
15206329 |
APPLIQUE, Q/PNL UPR (INCLS 19)
| N2 (06) |
2003-2009 |
01 |
|
| 002 |
10384904 |
GATE, LIFT
| N2 (06) (E52) |
2003-2009 |
01 |
|
| 003 |
15772337 |
СТЕКЛО, L/GATE
| N2 (06) (E52) (EXC ANJ) |
2005-2009 |
01 |
|
| 003 |
15909803 |
СТЕКЛО, L/GATE |
N2 (06) (ANJ, E52) |
2006-2009 |
01 |
| 004 |
12346392 |
ADHESIVE KIT, GLASS URETHANE (GLS URETHANE) (FOR INSTALLATION OF ALL STATIONARY WINDOW GLASS) |
|
2003-2009 |
AR |
| 005 |
10422037 |
WEDGE, L/GATE (L/GATE SI) (12.237) |
N2 (06) (E52) |
2003-2009 |
02 |
| 006 |
11561656 |
SCREW, RND WA, M6X1X28, 23 THD, 16.38 OD, 10.9, GMW4205, ADH 6175M, TORX (L/GATE WGE (L/GATE SI)) |
|
2003-2009 |
02 |
| 007 |
15772338 |
WEATHERSTRIP, L/GATE |
N2 (06) (E52) |
2003-2009 |
01 |
| 008 |
15182587 |
STRIKER, L/GATE LK |
N2 (06) (E52) |
2003-2009 |
02 |
| 009 |
15157917 |
БОЛТ, L/GATE LK STKR (M8X1.25X30) |
N2 (06) (E52) |
2003-2009 |
04 |
| 010 |
10310141 |
SEAL, L/GATE WGE (BODY SI) (12.237) |
N2 (06) |
2003-2009 |
02 |
| 011 |
15089910 |
WEDGE, L/GATE (BODY SI) |
N2 (06) (E52) |
2003-2009 |
02 |
| 012 |
11609900 |
SCREW, PAN WASH, M6X1X39, 31 THD, 12.25 OD, 8.8, GMW4700, TORX, MACH, PPOI (L/GATE WGE (BODY SI)) |
|
2003-2009 |
02 |
| 013 |
15230038 |
STRUT, L/GATE |
N2 (06) (E52) |
2003-2008 |
01 |
| 013 |
15230039 |
STRUT, L/GATE |
N2 (06) (E52) |
2003-2008 |
01 |
| 014 |
11561330 |
STUD, L/GATE STRUT (L/GATE SI) (STUD, BALL, M8X1.25X23, W/FL WA) |
N2 (06) (E52) |
2005-2009 |
02 |
| 015 |
11561330 |
STUD, L/GATE STRUT (BODY SI) (STUD, BALL, M8X1.25X23, W/FL WA) |
N2 (06) (E52) |
2005-2009 |
02 |
| 016 |
11518607 |
БОЛТ, W/WA, W/SEALANT, M8X1.25X30, 25 THD, 24 O.D., 10.9, 7114M (L/GATE HGE (BODY SI)) |
|
2003-2009 |
06 |
| 017 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (L/GATE HGE (L/GATE SI)) (ACDelco #11570082)
|
2003-2009 |
04 |
|
| 018 |
88979799 |
HINGE, L/GATE |
N2 (06) (E52) |
2003-2009 |
02 |
| 019 |
15053100 |
RETAINER, Q/PNL UPR APLQ (PART OF 1) (13MM X 16MM DEEP) (SQUARE HEAD) (16.650)
| N2 (E52) |
2003-2009 |
04 |
|
| 020 |
10271562 |
RETAINER, Q/PNL UPR APLQ (RADIUS 7.5 INCH) (PLASTIC) (12.976) |
N2 (06) |
2003-2009 |
04 |
| 021 |
11561905 |
БОЛТ, Q/PNL UPR APLQ (M6X1X25) |
N2 (06) |
2005-2009 |
04 |
| 022 |
15816854 |
VALVE, BK BODY OPG FRM PRESS RLF |
N2 |
2003-2009 |
02 |
