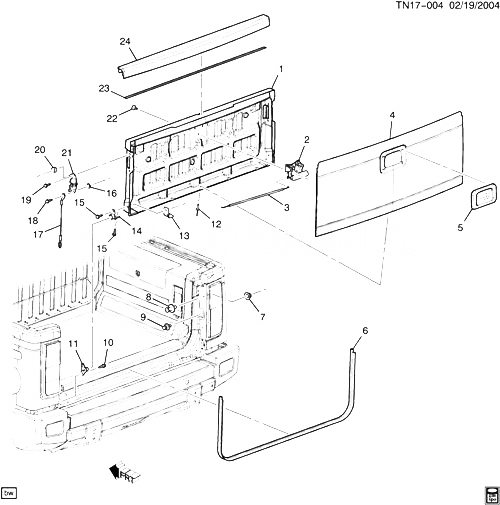

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
PANEL, E/GATE INR (*KIT1) |
|
2005-2009 |
|
| 002 |
15997911 |
HANDLE, PUBX E/GATE LAT (BLACK) (INCLS ROD RETAINERS) (*KIT1) |
N2 (36) |
2005-2009 |
01 |
| 003 |
88980702 |
ROD, E/GATE HDL (*KIT1) |
N2 (36) |
2005-2009 |
02 |
| 004 |
|
PANEL, E/GATE (*KIT1) |
|
2005-2009 |
|
| 005 |
15163229 |
BEZEL, PUBX E/GATE LAT HDL (BLACK) (*KIT1) |
N2 (36) |
2005-2009 |
01 |
| 006 |
15170074 |
WEATHERSTRIP, PUBX E/GATE |
N2 (36) |
2005-2009 |
01 |
| 007 |
11516754 |
ГАЙКА, HEX, W/CON SPR WA, M10X1.5, 10THK, 28 O.D., 10, 7111M (PART OF 8)
|
2005-2009 |
02 |
|
| 008 |
11570162 |
STRIKER, PUBX E/GATE (INCLS 7) (BLACK) (*KIT1) |
N2 (36) |
2005-2006 |
02 |
| 009 |
11609938 |
БОЛТ, PUBX E/GATE CBL (*KIT1) |
N257 (36) |
2005-2009 |
02 |
| 010 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (E/GATE HGE BRKT (BODY SI)) (ACDelco #11570082)
|
2005-2009 |
04 |
|
| 011 |
15078745 |
HINGE, PUBX E/GATE (PUBX SI) |
N2 (36) |
2005-2009 |
01 |
| 011 |
15078746 |
HINGE, PUBX E/GATE (PUBX SI) |
N2 (36) |
2005-2009 |
01 |
| 012 |
|
RIVET, PUBX E/GATE LINK (*KIT1) |
|
2005-2009 |
|
| 013 |
|
REINFORCEMENT, E/GATE HGE (E/GATE SI) (*KIT1) |
|
2005-2009 |
|
| 014 |
10382541 |
HINGE, E/GATE (*KIT1) |
N2 (36) |
2005-2009 |
01 |
| 014 |
15080226 |
HINGE, E/GATE (*KIT1) |
N2 (36) |
2005-2009 |
01 |
| 015 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (PUBX E/GATE HGE) (*KIT1) (ACDelco #11570082)
|
2005-2009 |
04 |
|
| 016 |
10009923 |
NUT, BOLT RETAINING SPRING, M8X1.25, 25 O.D., ZOR (PART OF 21) (*KIT1) |
|
2005-2009 |
02 |
| 017 |
88980509 |
CABLE, E/GATE (PART OF 21) (STAINLESS STEEL) (*KIT1) |
N2 (36) |
2005-2007 |
01 |
| 017 |
88980510 |
CABLE, E/GATE (PART OF 21) (STAINLESS STEEL) (*KIT1) |
N2 (36) |
2005-2007 |
01 |
| 018 |
16641546 |
БОЛТ, E/GATE LAT (PART OF 21) (M8X1.25X35) (HOLDS CABLE TO LATCH) (*KIT1) |
N2 (36) |
2005-2009 |
02 |
| 019 |
16641546 |
БОЛТ, E/GATE LAT (PART OF 21) (M8X1.25X35) (HOLDS CABLE TO LATCH) (*KIT1) |
N2 (36) |
2005-2009 |
02 |
| 020 |
|
BUMPER, E/GATE (PART OF 21) (*KIT1) |
|
2005-2009 |
|
| 021 |
15931521 |
LATCH, PUBX E/GATE (W/CABLE) (INCLS 16-20) (*KIT1) |
N2 (36) |
2005-2009 |
01 |
| 021 |
15938233 |
LATCH, PUBX E/GATE (W/CABLE) (INCLS 16-20) (*KIT1) |
N2 (36) |
2005-2009 |
01 |
| 022 |
|
БОЛТ, E/GATE HDL (*KIT1) |
|
2005-2009 |
|
| 023 |
|
ADHESIVE TAPE/CAP (*KIT1) |
|
2005-2009 |
|
| 024 |
88980701 |
CAP, E/GATE UPR FIN MLDG END (*KIT1) |
N2 (36) |
2005-2009 |
01 |
| K01 |
10382534 |
GATE, PUBX END (INCLS 1-5, 8, 9, 12-24) (SAND) |
N2 (36) (18U) |
2005-2006 |
01 |
| K01 |
10382535 |
GATE, PUBX END (INCLS 1-5, 8, 9, 12-24) (GRAY) |
N2 (36) (46U) |
2005-2008 |
01 |
| K01 |
10382536 |
GATE, PUBX END (INCLS 1-5, 8, 9, 12-24) (PEWTER) |
N2 (36) (11U) |
2005-2007 |
01 |
| K01 |
10382538 |
GATE, PUBX END (INCLS 1-5, 8, 9, 12-24) (YELLOW) |
N2 (36) (43U) |
2005-2008 |
01 |
| K01 |
10382539 |
GATE, PUBX END (INCLS 1-5, 8, 9, 12-24) (WHITE) |
N2 (36) (50U) |
2005-2008 |
01 |
| K01 |
15250202 |
GATE, PUBX END (INCLS 1-5, 8, 9, 12-24) (RED) |
N2 (36) (49U) |
2006-2007 |
01 |
| K01 |
15291435 |
GATE, PUBX END (INCLS 1-5, 8, 9, 12-24) (BLUE) |
N2 (36) (91U) |
2006-2006 |
01 |
| K01 |
15794207 |
GATE, PUBX END (INCLS 1-5, 8, 9, 12-24) (ORANGE) |
N2 (36) (55U) |
2006-2007 |
01 |
| K01 |
25849288 |
GATE, PUBX END (INCLS 1-5, 8, 9, 12-24) (BLACK) |
N2 (36) (41U) |
2005-2009 |
01 |
| K01 |
25849293 |
GATE, PUBX END (INCLS 1-5, 8, 9, 12-24) (WHITE) |
N2 (36) (50U) |
2005-2009 |
01 |
