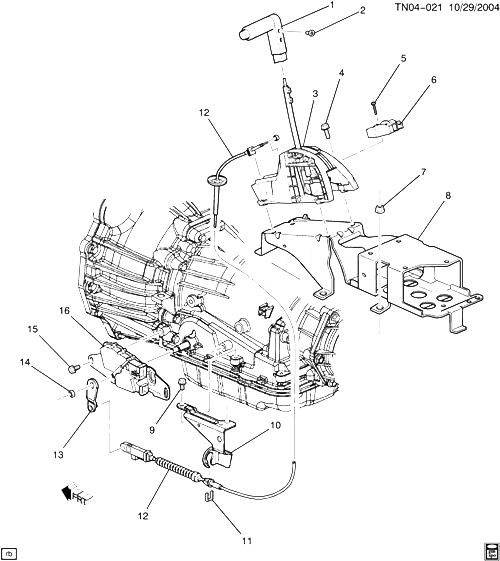

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15848861 |
HANDLE, A/TRNS CONT LVR (HANDLE W/2 FASTENERS ON REAR FACE OF KNOB) |
N257 (M32) |
2005-2007 |
01 |
| 002 |
11609376 |
БОЛТ, A/TRNS CONT LVR HDL CVR (8.913) |
N257 (M32) |
2005-2007 |
02 |
| 003 |
15823790 |
CONTROL, A/TRNS (INCLS 5, 6) (HANDLE HAS 2 FASTENERS ON REAR FACE OF KNOB) |
N257 (M32, Y91) |
2005-2007 |
01 |
| 004 |
11516589 |
SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (A/TRNS CONT) |
|
2005-2007 |
04 |
| 005 |
|
БОЛТ, A/TRNS SHFT LK CONT SOL (PART OF 3) |
|
2005-2007 |
|
| 006 |
88967140 |
SOLENOID, A/TRNS SHFT LK CONT (PART OF 3)
| N257 (M32) |
2005-2007 |
01 |
|
| 007 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/TRNS CONT BRKT) (8.915) (ACDelco #11514596) |
|
2005-2007 |
06 |
| 008 |
15113995 |
BRACKET, A/TRNS CONT (W/ALIGNED BOLTS TO SHIFTER ASM) |
N257 |
2005-2006 |
01 |
| 009 |
11561015 |
SCREW-M8X1.25X21.5, 15 THD, 17 OD, 9.8, GMW4700ZNNI BLACK (A/TRNS RANGE SEL LVR CBL BRKT) |
|
2005-2007 |
02 |
| 010 |
15200802 |
BRACKET, A/TRNS RANGE SEL LVR CBL (ACDelco #15200802) |
N257 (M32) |
2005-2007 |
01 |
| 011 |
10217245 |
RETAINER, A/TRNS RANGE SEL LVR CBL (U-SHAPE)
| N257 (M32) |
2005-2007 |
01 |
|
| 012 |
15268403 |
CABLE, A/TRNS RANGE SEL LVR (AT TRNS)
| N257 (M32) |
2005-2007 |
01 |
|
| 013 |
15082892 |
LEVER, A/TRNS RANGE SEL LVR EQLZR
| N257 (M32) |
2005-2007 |
01 |
|
| 014 |
11514597 |
ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (A/TRNS RANGE SEL LVR EQLZR LVR) (2.383) |
|
2005-2007 |
01 |
| 015 |
11509640 |
БОЛТ, HEX W/CON WA, M8X1.25X16, 9.8, PZOR, 17.0-OD, W/DOG PT, TT WASH (PARK/NEU POSN ; B/U LP SW) |
|
2005-2007 |
02 |
| 016 |
24221125 |
SWITCH, PARK/NEU POSN ; B/U LP (TRANS MTD) (12-PIN CONN) (4.054) (ACDelco #D2257C)
| N257 (M32) |
2005-2007 |
01 |
|
| 016 |
24221125 |
SWITCH, PARK/NEU POSN ; B/U LP (TRANS MTD) (12-PIN CONN) (ACDelco #D2257C)
| N257 (M32) |
2005-2007 |
01 |
|
