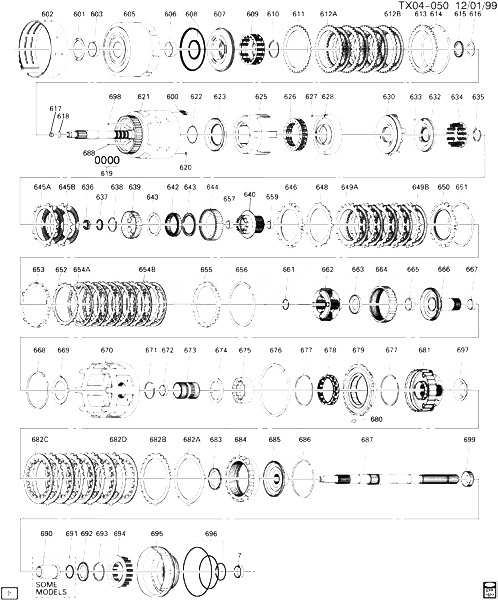

(TX04-050) - 2003-2007 N2 АВТОМАТИЧЕСКАЯ ТРАНСМИССИЯ, АКПП (M32) PART 3 (4L65-E) ДЕТАЛИ СЦЕПЛЕНИЯ HUMMER - H2 SUV 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
007 08680027 BUSHING, PROP SHF FRT SLIP YOKE (INSIDE DIA 1.506-1.509) (PART OF TRANS CASE) (4.104) N2 (LQ4, M32) 2006-2007 01
600 08667424 SPRING, 3RD ; 4TH CLU BOOST (INCLS RET ; (2) SPRINGS) (*KIT9) (ACDelco #8667424) N257 (M32) 2003-2007 05
601 08642041 WASHER, REV INPUT CLU HSG THR (1.52-1.63MM) (4.226) (ACDelco #08642041) N257 (M32) 2003-2007 01
602 24232236 BAND, 2-4 (ACDelco #24232236) N257 (M32) 2003-2007 01
603 BUSHING, REV INPUT CLU HSG FRT (PART OF 605) 2003-2007
605 08681295 HOUSING, REV INPUT CLU (INCLS 603, 606) (ACDelco #8681295) N257 (M32) 2003-2007 01
606 BUSHING, REV INPUT CLU HSG RR (PART OF 605) 2003-2007
607 08667841 PISTON, REV INPUT CLU (.095 HOLE) (ACDelco #8667841) N257 (M32) 2003-2007 01
608 08683960 SEAL KIT, REV INPUT CLU (ACDelco #8683960) N257 (M32) 2003-2007 01
609 08647284 SPRING, REV INPUT CLU (ACDelco #8647284) N257 (M32) 2003-2007 01
610 08628059 RING, REV INPUT CLU SPR RET (*KIT4) (ACDelco #8628059) N257 (M32) 2003-2007 01
611 08663074 PLATE, REV INPUT CLU (WAVED) (ACDelco #8663074) N257 (M32) 2003-2007 01
612 08673605 PLATE, REV INPUT CLU (ILLUSTRATED AS 612B) (153MM DIA) (FIBER) (ACDelco #8673605) N257 (M32) 2003-2007 04
612 24205267 PLATE, REV INPUT CLU (1.97MM THICK) (ILLUSTRATED AS 612A) (1.97MM THICK) (W/HOLES IN TURB PLATES) (STEEL) (*KIT9) (ACDelco #24205267) N257 (M32) 2003-2007 04
613 24212463 PLATE, REV INPUT CLU BKG (5.787-5.947MM) (ACDelco #24212463) N257 (M32) 2003-2007 01
613 24212464 PLATE, REV INPUT CLU BKG (6.518-6.678MM) (ACDelco #24212464) N257 (M32) 2003-2007 01
613 24212465 PLATE, REV INPUT CLU BKG (7.409-7.249MM) (ACDelco #24212465) N257 (M32) 2003-2007 01
614 08667022 RING, REV INPUT CLU BKG PLT RET (ACDelco #8667022) N257 (M32) 2003-2007 01
615 08642066 BEARING, REV INPUT CLU HSG THR (ACDelco #8642066) N257 (M32) 2003-2007 01
616 08642067 WASHER, REV INPUT CLU HSG THR (1.87-1.97MM) (4.158) (ACDelco #8642067) N257 (M32) 2003-2007 01
616 08642068 WASHER, REV INPUT CLU HSG THR (2.04-2.14MM) (4.158) (ACDelco #8642068) N257 (M32) 2003-2007 01
616 08642069 WASHER, REV INPUT CLU HSG THR (2.21-2.31MM) (4.158) (ACDelco #8642069) N257 (M32) 2003-2007 01
616 08642070 WASHER, REV INPUT CLU HSG THR (2.38-2.48MM) (4.158) (ACDelco #8642070) N257 (M32) 2003-2007 01
616 08642071 WASHER, REV INPUT CLU HSG THR (2.55-2.65MM) (4.158) (ACDelco #8642071) N257 (M32) 2003-2007 01
616 08642072 WASHER, REV INPUT CLU HSG THR (2.72-2.82MM) (4.158) (ACDelco #8642072) N257 (M32) 2003-2007 01
616 08642073 WASHER, REV INPUT CLU HSG THR (2.89-2.99MM) (4.158) (ACDelco #8642073) N257 (M32) 2003-2007 01
616 08642074 WASHER, REV INPUT CLU HSG THR (3.06-3.16MM) (4.158) (ACDelco #8642074) N257 (M32) 2003-2007 01
617 08685839 VALVE, TURB SHF BALL CHK (ACDelco #8685839) N257 (M32) 2003-2007 01
618 24212987 SEAL, TURB SHF (O RING) (*KIT2) (ACDelco #24212987) N257 (M32) 2003-2007 01
619 08667035 RING, INPUT SHF FLUID SEAL (TEFLON) (*KIT2) (ACDelco #8667035) N257 (M32) 2003-2007 04
620 24208262 VALVE, 3-4 CLU HSG BALL CHK (PART OF 621) (ACDelco #24208262) N257 (M32) 2003-2007 01
621 24230654 HOUSING, 3-4 CLU (W/INPUT SHF) (INCLS 620, 688, 698) (ACDelco #24230654) N2 (M32) 2006-2007 01
622 SEAL, FWD CLU HSG (O RING) (*KIT2) 2003-2007
623 24200290 PISTON, 3-4 CLU (ACDelco #24200290) N257 (M32) 2003-2007 01
625 08685043 RING, 3-4 CLU APPL (*KIT9) (ACDelco #8685043) N257 (M32) 2003-2007 01
626 08685244 SPRING, 3-4 CLU (BOOST) (105.12MM O.D.) (ACDelco #8685244) N257 (M32) 2003-2007 01
627 24205181 VALVE, FWD CLU HSG BALL CHK (PART OF 628) (SHORT ; WIDE) (ACDelco #24205181) N257 (M32) 2003-2007 01
628 24205298 HOUSING, FWD CLU (INCLS 627, 633) (INCLS HOUSINGS ; VALVE) (ACDelco #24205298) N257 (M32) 2003-2007 01
630 24205272 PISTON, FWD CLU (INCLS SEALING ELEMENT) (ACDelco #24205272) N257 (M32) 2003-2007 01
632 24205273 PISTON, OVERRUN CLU (INCLS 633) (STEEL W/ INTEGRAL SEAL) (ACDelco #24205273) N257 (M32) 2003-2007 01
633 07002117 2003-2007 AR
634 24206085 SPRING, OVERRUN CLU (ACDelco #24206085) N257 (M32) 2003-2007 01
635 11500692 RING, OVERRUN CLU SPR RET (*KIT4) (ACDelco #11500692) 2003-2007 AR
636 08677268 SEAL, OUTPUT SHF (29 TEETH/SPLINE) (*KIT2) (ACDelco #8677268) N257 (M32) 2003-2007 01
637 08642162 BEARING, INPUT SUN GR THR (ACDelco #8642162) N257 (M32) 2003-2007 01
638 08647083 RING, OVERRUN CLU HUB RET (*KIT4, KIT11) (ACDelco #8647083) N257 (M32) 2003-2007 01
639 HUB, OVERRUN CLU (*KIT11) 2003-2007
640 GEAR, INPUT SUN (*KIT11) 2003-2007
642 24241477 SPRAG, FWD CLU (*KIT11) (ACDelco #24241477) N257 (M32) 2005-2007 01
643 RETAINER, FWD CLU RLR (*KIT11) 2003-2007
644 RACE, FWD CLU RLR OTR (*KIT11) 2003-2007
645 08642154 PLATE, OVERRUN CLU (ILLUSTRATED AS 645A) (2.34MM THK) (FLAT STEEL) (*KIT9) (ACDelco #8642154) N257 (M32) 2003-2007 02
645 24210766 PLATE, OVERRUN CLU (ILLUSTRATED AS 645B) (1.93-2.13 THK) (GROOVED) (ACDelco #24210766) N257 (M32) 2003-2007 02
646 24212462 PLATE, FWD CLU APPLY (ACDelco #24212462) N257 (M32) 2003-2007 01
648 08647058 PLATE, FWD CLU (WAVED) (ACDelco #8647058) N257 (M32) 2003-2007 01
649 08642154 PLATE, OVERRUN CLU (ILLUSTRATED AS 649B) (2.34MM THK) (FLAT STEEL) (*KIT5, KIT9) (ACDelco #8642154) N257 (M32) 2003-2007 02
649 08654325 PLATE, FWD CLU (ILLUSTRATED AS 649A) (STEEL) (*KIT5, KIT9) (ACDelco #8654325) N257 (LQ4, M32) 2003-2007 05
650 24212466 PLATE, FWD CLU BKG (4.56MM-4.71MM) (ACDelco #24212466) N257 (M32) 2003-2007 01
650 24212467 PLATE, FWD CLU BKG (5.15MM-5.30MM) (ACDelco #24212467) N257 (M32) 2003-2007 01
650 24212468 PLATE, FWD CLU BKG (5.74MM-5.89MM) (ACDelco #24212468) N257 (M32) 2003-2007 01
650 24212469 PLATE, FWD CLU BKG (6.33MM-6.48MM) (ACDelco #24212469) N257 (M32) 2003-2007 01
650 24212470 PLATE, FWD CLU BKG (6.9-7.1MM) (ACDelco #24212470) N257 (M32) 2003-2007 01
651 08642170 RING, FWD CLU BKG PLT RET (ACDelco #8642170) N257 (M32) 2003-2007 01
652 PLATE, 3-4 CLU (NOT REQUIRED) (*KIT9) 2003-2007
653 24217451 PLATE, 3-4 CLU APPLY (*KIT9) (ACDelco #24217451) N257 (M32) 2003-2007 01
654 PLATE, 3-4 CLU (*KIT9) 2003-2007
655 24212460 PLATE, 3-4 CLU BKG (4.79-4.99MM) (ACDelco #24212460) N257 (M32) 2003-2007 01
655 24217450 PLATE, 3-4 CLU BKG (3.67MM) (ACDelco #24217450) N257 (M32) 2003-2007 01
655 24217453 PLATE, 3-4 CLU BKG (4.18MM) (ACDelco #24217453) N257 (M32) 2003-2007 01
655 24217516 PLATE, 3-4 CLU BKG (5.61MM) (ACDelco #24217516) N257 (M32) 2003-2007 01
655 24217517 PLATE, 3-4 CLU BKG (6.12MM) (ACDelco #24217517) N257 (M32) 2003-2007 01
656 08663636 RING, 3-4 CLU BKG PLT RET (ACDelco #8663636) N257 (M32) 2003-2007 01
657 08642181 BUSHING, OUTPUT SHF (FRT) (FRT ; RR) (*KIT11) (4.159) (ACDelco #8642181) N257 (M32) 2003-2007 02
659 08642181 BUSHING, OUTPUT SHF (REAR) (FRT ; RR) (*KIT11) (4.159) (ACDelco #8642181) N257 (M32) 2003-2007 02
661 08654141 RING, OUTPUT SHF RET (*KIT2, KIT4) (ACDelco #8654141) N257 (M32) 2003-2007 01
662 24243874 CARRIER KIT, INPUT (INCLS 665-667) (ACDelco #24243874) N257 (M32) 2003-2006 01
663 24217327 BEARING, REACTION CARR THR (43.0 ID X 64.57 OD) (ACDelco #24217327) N257 (M32) 2003-2007 01
664 24219410 GEAR, INPUT INTL (ACDelco #24219410) N257 (M32) 2003-2007 01
665 BUSHING, REACTION CARR SHF FRT (PART OF 662) 2003-2007
666 SHAFT, REACTION CARR (PART OF 662) 2003-2007
667 BUSHING, REACTION CARR SHF RR (PART OF 662) 2003-2007
668 08642201 RING, REACTION CARR SHF RET (ACDelco #8642201) N257 (M32) 2003-2007 01
669 24217328 BEARING, REACTION CARR THR (73.7 ID X 91 OD) (ACDelco #24217328) N257 (M32) 2003-2007 01
670 24217145 SHELL, REACTION SUN GR (ACDelco #24217145) N257 (M32) 2003-2007 01
671 08681553 RING, REACTION SUN GR RET (ACDelco #8681553) N257 (M32) 2003-2007 01
672 BUSHING, REACTION SUN GR (PART OF 673) 2003-2007
673 24219411 GEAR, REACTION SUN (INCLS 672) (ACDelco #24219411) N257 (M32) 2003-2007 01
673 24241250 GEAR, REACTION SUN (INCLS 672) (ACDelco #24241250) N257 (M32) 2003-2007 01
674 08642331 WASHER, REACTION SUN GR SHELL THR (4.176) (ACDelco #8642331) N257 (M32) 2003-2007 01
675 08673300 RACE, LOW CLU RLR INR (ACDelco #8673300) N257 (M32) 2003-2007 01
676 24200278 RING, LOW ; REV CLU SUPT RET (ACDelco #24200278) N257 (M32) 2003-2007 01
677 06261051 RING, LOW CLU RLR RET (ACDelco #6261051) N257 (M32) 2003-2007 02
678 24217231 ROLLER, LOW CLU (*KIT6) (ACDelco #24217231) N257 (M32) 2003-2007 01
679 24217232 SUPPORT, LOW ; REV CLU (*KIT6) (ACDelco #24217232) N257 (M32) 2003-2007 01
680 06261415 SPRING, LOW ; REV CLU SUPT (ACDelco #6261415) N257 (M32) 2003-2007 01
681 24227591 CARRIER, REACTION (INCLS 697) (ACDelco #24227591) N257 (M32) 2003-2007 01
682 08676362 PLATE, LOW ; REV CLU (WAVED) (ILLUSTRATED AS 682A) (*KIT6) (ACDelco #8676362) N257 (M32) 2003-2007 01
682 24205268 PLATE, LOW ; REV CLU (ILLUSTRATED AS 682B) (1.829MM) (HAS HOLES IN TURB PLATES) (STEEL) (*KIT6) (ACDelco #24205268) N257 2003-2007 01
682 24205268 PLATE, LOW ; REV CLU (ILLUSTRATED AS 682D) (1.829MM) (HAS HOLES IN TURB PLATES) (STEEL) (*KIT6) (ACDelco #24205268) N257 (M32) 2003-2007 04
682 24216946 PLATE, LOW ; REV CLU (ILLUSTRATED AS 682C) (FIBER) (SEGMENTED-DO NOT MIX SEGMENTED W/NON-SEGMENTED CLUTCH PLATES) (*KIT8) (ACDelco #24216946) N257 (M32) 2003-2007 05
683 08642215 BEARING, REACTION CARR THR (TO SUPT) (52.42 ID X 72.4 OD) (4.176) (ACDelco #8642215) N257 (M32) 2003-2007 01
684 24233619 GEAR, REACTION INTL (ACDelco #24233619) N257 (M32) 2003-2007 01
685 24225931 SUPPORT, REACTION INTL GR (ACDelco #24225931) N257 (M32) 2003-2007 01
686 08642220 RING, INT REACTION GR SUPT RET (ACDelco #8642220) N257 (M32) 2003-2007 01
687 24217529 SHAFT, OUTPUT (ACDelco #24217529) N257 (M32) 2003-2007 01
688 PLUG, 3-4 CLU HSG FLUID PASG HOLE (PART OF 621) 2003-2007
690 SLEEVE, PROP SHF OIL SEAL (NOT REQUIRED) 2003-2007
691 SEAL, PROP SHF OIL (NOT REQUIRED) 2003-2007
692 24217327 BEARING, REACTION CARR THR (TO REACT SHF) (43.0 ID X 64.57 OD) (ACDelco #24217327) N257 (M32) 2003-2007 01
693 08647337 RING, LOW ; REV CLU SPR RET RET (*KIT4, KIT6) (4.159) (ACDelco #8647337) N257 (M32) 2003-2007 01
694 08642227 SPRING, LOW ; REV CLU (ACDelco #8642227) N257 (M32) 2003-2007 01
695 08685549 PISTON, LOW ; REV CLU (*KIT6) (ACDelco #8685549) N257 (M32) 2003-2007 01
696 08648987 SEAL KIT, LOW ; REV CLU (INCLS INR, OTR ; INTER SEALS) (*KIT2, KIT6) (4.166) (ACDelco #8648987) 2003-2007
697 DEFLECTOR, REACTION CARR THR BRG LUB (PART OF 681) 2003-2007
698 08663707 ORIFICE, LUB FLUID (PART OF 621) (4.3MM DIA) (ACDelco #8663707) N257 (M32) 2003-2007 01
699 КОЛЕСО, VEH SPD SEN RELUCTOR (NOT REQUIRED) 2003-2007
K02 24236378 GASKET KIT, A/TRNS SERV (INCLS 618, 619, 622, 636, 661, 696) (FOR ADDITIONAL CONTENTS OF THIS KIT SEE CK АВТОМАТИЧЕСКАЯ ТРАНСМИССИЯ, АКПП M30 PARTS 2, 5) (W/PISTONS) (ACDelco #24236378) N257 (M32) 2004-2007 01
K04 24248064 RING KIT, RET (INCLS 610, 635, 638, 661, 693) (FOR ADDITIONAL CONTENTS OF THIS KIT SEE CK АВТОМАТИЧЕСКАЯ ТРАНСМИССИЯ, АКПП M30 PART 5) (ACDelco #24248064) N257 (M32) 2003-2007 01
K05 24232835 PLATE KIT, FWD CLU (INCLS 649A, 649B) (INCLS INSTR SHEET ; FWD CLUTCH PLATES (FIBERS AND STEELS) (ACDelco #24232835) N257 (M32) 2003-2007 01
K06 08687996 PLATE KIT, LOW ; REV CLU (W/SUPT) (W/PSTN) (INCLS 678, 679, 682A, 682B, 682D, 693, 695, 696) (STEEL PLATES) (ACDelco #8687996) N257 (M32) 2003-2007 01
K09 24244615 PLATE KIT, CLU (INCLS 600, 625, 652, 653) (ACDelco #24244615) N257 (M32) 2003-2007 01
K09 24244616 PLATE KIT, CLU (INCLS 612A, 645A, 649A, 649B, 654, 682C) (ACDelco #24244616) N257 (M32) 2004-2007 01
K11 24241477 SPRAG, FWD CLU (INCLS 638, 639, 640, 642, 643, 644, 657, 659) (ACDelco #24241477) N257 (M32) 2005-2007 01
