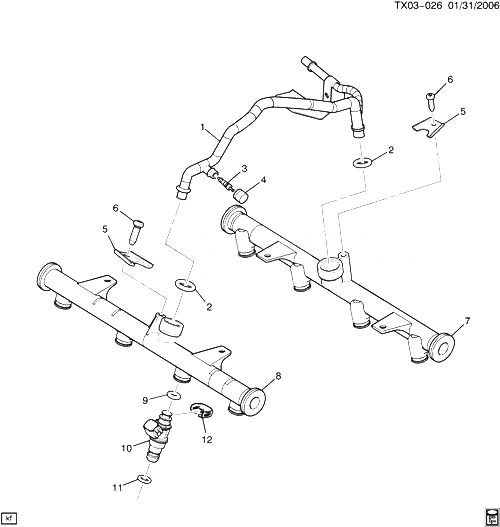

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
89017377 |
TUBE, F/INJN FUEL RL C/OVR |
N257 (06-36) (LQ4, M32, NC1, NT9) |
2005-2007 |
01 |
| 002 |
17113552 |
SEAL KIT, F/INJN FUEL RL (ACDelco #17113552)
| N2 (LQ4, M32) |
2005-2007 |
01 |
|
| 003 |
12570619 |
VALVE KIT, FUEL PRESS SERV (INCLS 4) (ACDelco #12570619)
| N257 (06-36) (LQ4) |
2005-2007 |
01 |
|
| 004 |
|
CAP, FUEL PRESS SERV VLV (PART OF 3) |
|
2004-2007 |
|
| 005 |
89017378 |
RETAINER KIT, F/INJN FUEL RL C/OVR TUBE (INCLS 6) (FLAT STEEL - Y-TYPE RETAINER ONE BOLT HOLE) |
N257 (06-36) (LQ4) |
2005-2007 |
01 |
| 006 |
|
БОЛТ, F/INJN FUEL RL C/OVR TUBE RET (PART OF 5) |
|
2004-2007 |
|
| 007 |
12602113 |
RAIL, M/PORT F/INJN FUEL (ACDelco #217-1542) |
N257 (06-36) (LQ4) |
2005-2007 |
01 |
| 008 |
17113695 |
RAIL, M/PORT F/INJN FUEL (ACDelco #17113695) |
N257 (06-36) (LQ4) |
2005-2007 |
01 |
| 009 |
|
SEAL, F/INJR (O RING) (UPPER) (PART OF 10) (*KIT1) |
|
2004-2007 |
|
| 010 |
17113698 |
INJECTOR, M/PORT FUEL (INCLS 9, 11, 12) (IF REPLACING CONN-USE W/CONN 88988814) (ACDelco #17113698)
| N257 (06-36) (LQ4) |
2005-2007 |
08 |
|
| 011 |
|
SEAL, F/INJR (O RING) (LOWER) (PART OF 10) (*KIT1) |
|
2004-2007 |
|
| 012 |
12570620 |
RETAINER KIT, F/INJR (PART OF 10) (W/ 8 RETAINERS) (ACDelco #12570620) |
N257 (06-36) (LQ4) |
2005-2007 |
01 |
| K01 |
12587147 |
SEAL KIT, F/INJR (O RING) (INCLS SEALS) (INCLS 9, 11) (W/ 8 UPPER ; 8 LOWER SEALS) (ACDelco #217-1588)
| N257 (06-36) (LQ4) |
2005-2007 |
01 |
|
