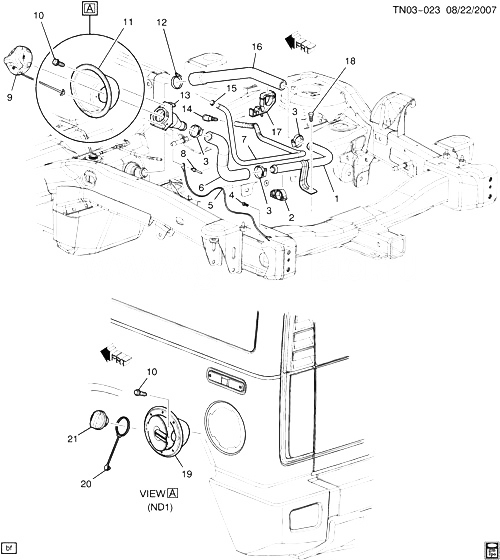

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25853757 |
PIPE, F/TNK FIL (INCLS 2, 3, 5-8, 12-17) |
N2 |
2006-2006 |
01 |
| 002 |
15090388 |
CLIP, F/TNK FIL PIPE (PART OF 1) |
N2 |
2006-2006 |
02 |
| 003 |
11610235 |
CLAMP, HEX HD WORM GEAR, TYPE F, SIZE 16, 38MM OPEN, SS (PART OF 1) (3.003) |
|
2006-2006 |
03 |
| 004 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CHAS WRG HARN TRLR LEAD)
|
2006-2006 |
01 |
|
| 005 |
15217509 |
STRAP, F/TNK FIL PIPE GND (PART OF 1) |
N2 |
2006-2006 |
01 |
| 006 |
|
HOSE, F/TNK FIL (PART OF 1) |
|
2006-2006 |
|
| 007 |
|
HOSE, EVAP EMIS (PART OF 1) |
|
2006-2006 |
|
| 008 |
|
RIVET, F/TNK FIL PIPE GND STRP (PART OF 1) |
|
2006-2006 |
|
| 009 |
25827646 |
CAP, F/TNK FIL (ACDelco #GT306)
| N2 (EXC ND1) |
2006-2006 |
01 |
|
| 010 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (F/TNK FIL PIPE SUPT) (9.665)
|
2006-2006 |
03 |
|
| 011 |
15903412 |
HOUSING, F/TNK FIL PIPE
| N2 (EXC ND1) |
2006-2006 |
01 |
|
| 012 |
11561790 |
CLAMP, F/TNK FIL HOSE (CLAMP, HEX HD WORM GEAR, TYPE F, SIZE 21, 55MM OPEN, SS, W/LOCATOR TAB) (PART OF 1) |
N2 |
2006-2006 |
01 |
| 013 |
|
RESTRICTOR, F/TNK FIL PIPE (PART OF 1) |
|
2006-2006 |
|
| 014 |
|
CONNECTOR, EVAP EMIS RR HOSE (PART OF 1) |
|
2006-2006 |
|
| 015 |
11610236 |
CLAMP, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (PART OF 1) |
|
2006-2006 |
01 |
| 016 |
|
HOSE, F/TNK FIL (PART OF 1) |
|
2006-2006 |
|
| 017 |
|
CLIP, F/TNK FIL PIPE (PART OF 1) |
|
2006-2006 |
|
| 018 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (F/TNK FIL ; VENT HOSE BRKT) |
|
2006-2006 |
02 |
| 019 |
15844367 |
ДВЕРЬ, F/TNK FIL (USE ON VEHICLES BUILT 11/21/05 AND LATER) (FOR 1ST DESIGN SEE 19159135) |
N2 (ND1) (2ND DES) |
2006-2006 |
01 |
| 019 |
19159135 |
ДВЕРЬ, F/TNK FIL (CHROME) (INSTALL .30) (0.58KGS) (W/HUMMER LOGO) (AL) (W/O LKG CAP) (USE ON VEHICLES BUILT 11/21/05 AND PRIOR) (FOR 2ND DESIGN SEE 15844367)
| N2 (ND1) (1ST DES) |
2006-2006 |
01 |
|
| 019 |
25839737 |
ДВЕРЬ, F/TNK FIL (USE TOGETHER WITH 25861414) |
N2 (ND1) (EXC WS2) |
2006-2006 |
01 |
| 021 |
25820825 |
CAP, F/TNK FIL (INCLS 20) (BUTTON TYPE TETHER) (ACDelco #GT289) |
N2 (ND1) |
2006-2006 |
01 |
| 021 |
25835357 |
CAP, F/TNK FIL (INCLS 20) (ACDelco #GT315) |
N2 (ND1) |
2006-2006 |
01 |
