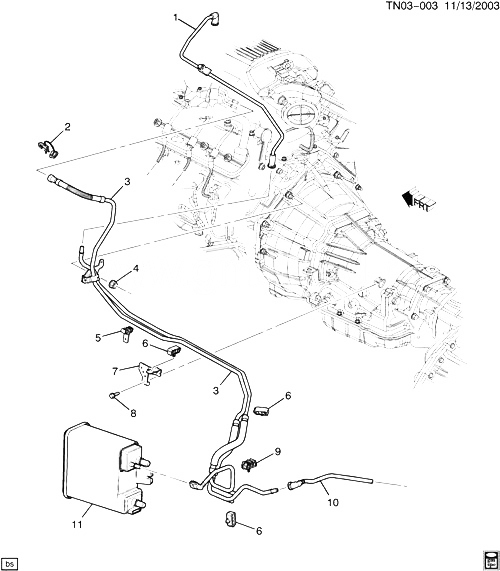

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12575527 |
TUBE, EVAP EMIS CNSTR PURGE |
N2 (LQ4) |
2005-2007 |
01 |
| 002 |
25654373 |
RETAINER, FUEL FEED HOSE CONN (PLASTIC) |
N2 |
2006-2007 |
01 |
| 003 |
15270308 |
HOSE, FUEL FEED ; EVAP EMIS ; RTN (INCLS 5-7, 9) |
N2 (LQ4) |
2006-2007 |
01 |
| 004 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL FEED ; RTN FRT HOSE BRKT) (8.915) (ACDelco #11514596) |
|
2004-2007 |
01 |
| 005 |
15011436 |
CLIP, FUEL FEED ; EVAP EMIS ; RTN HOSE (PART OF 3) (2.559) |
N2 (LQ4) |
2006-2007 |
01 |
| 006 |
15022177 |
CLIP, FUEL FEED ; EVAP EMIS ; RTN HOSE (PART OF 3) |
N2 (LQ4) |
2006-2007 |
03 |
| 007 |
15034434 |
BRACKET, FUEL FEED ; EVAP EMIS ; RTN HOSE (PART OF 3) (3.163) |
N2 (LQ4) |
2004-2007 |
01 |
| 008 |
11519124 |
BOLT-HEX, M5X.8X16, 12.5 OD, 6202M, 4435M, TAP, TR-PT (FUEL FEED ; RTN FRT HOSE BRKT) |
|
2004-2007 |
01 |
| 009 |
15112820 |
CLIP, FUEL FEED ; EVAP EMIS ; RTN HOSE (PART OF 3) |
N2 (LQ4) |
2005-2007 |
03 |
| 010 |
|
HOSE, FUEL RTN (SEE GROUP 03.000 ТОПЛИВНЫЙ БАК FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2007 |
|
| 011 |
|
CANISTER, EVAP EMIS (SEE GROUP 03.000 VAPOR CANISTER ; RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2007 |
|
