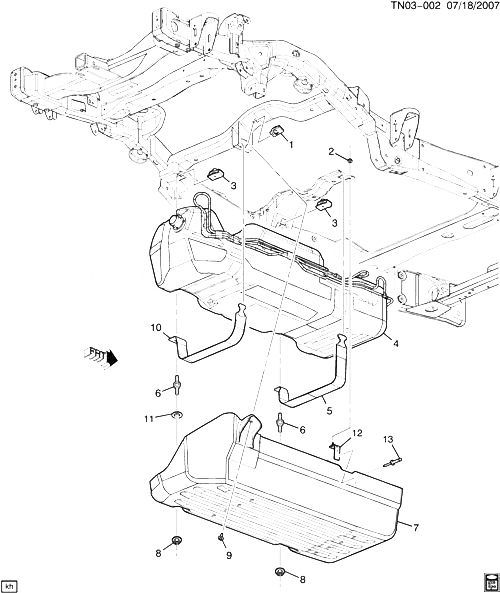

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11516149 |
NUT, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (F/TNK SHLD)
|
2003-2009 |
01 |
|
| 002 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (F/TNK SHLD)
|
2003-2009 |
01 |
|
| 003 |
11517806 |
NUT-U, M10X1.5, 30.5X28.6, 15.5 C/E, 2-5 PNL, 1050, 7111M (F/TNK STRP) |
|
2003-2009 |
02 |
| 004 |
|
TANK, FUEL (SEE GROUP 03.000 ТОПЛИВНЫЙ БАК FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2009 |
|
| 005 |
15795684 |
STRAP, F/TNK (FRONT) |
N2 |
2006-2007 |
01 |
| 006 |
15724226 |
STUD, F/TNK STRP (HFH, M8X1.25X20, M10X1.5X35, 18 OD, 64.5 TL, 9.8, 7114M) (4.047)
| N2 |
2003-2009 |
02 |
|
| 007 |
25884456 |
SHIELD, F/TNK (INCLS 12, 13) |
N2 |
2003-2006 |
01 |
| 008 |
11516780 |
ГАЙКА, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (F/TNK SHLD) (8.917)
|
2003-2009 |
02 |
|
| 009 |
11589407 |
БОЛТ, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (F/TNK SHLD)
|
2003-2009 |
01 |
|
| 010 |
15795683 |
STRAP, F/TNK (REAR) |
N2 |
2006-2007 |
01 |
| 011 |
11609679 |
WASHER, FLAT, M8 (F/TNK SHLD) |
|
2003-2009 |
01 |
| 012 |
|
BRACKET, F/TNK SHLD (PART OF 7) |
|
2003-2009 |
|
| 013 |
21095050 |
RIVET, F/TNK SHLD (PART OF 7) (4.8SHANK, 25.4 LENGTH) (ALUM) (2.342) |
N257 |
2003-2009 |
02 |
