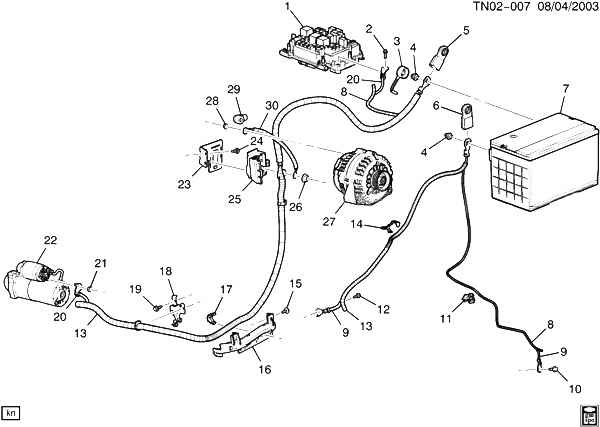

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
BLOCK, ENG WRG HARN JUNC (SEE GROUP 02.000 БЛОК-ПОДКАПОТНЫЙ FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2007 |
|
| 002 |
19115561 |
БОЛТ, HEX HD, 3/8-16X13/32, 1/4 THD, 1 5/32 TOTAL LG, 51/64 O.D., STL, ZP (PART OF 20) (8.900) (ACDelco #19115561)
|
2003-2007 |
01 |
|
| 003 |
12010050 |
NUT, BAT POS CBL TERM CVR RET (RED) (HAS SLOTTED HOLE) (SNAPS ON TO BATTERY BOLT) |
N257 (06-36) (LQ4) |
2005-2007 |
01 |
| 004 |
19115561 |
БОЛТ, HEX HD, 3/8-16X13/32, 1/4 THD, 1 5/32 TOTAL LG, 51/64 O.D., STL, ZP (BAT CBL TERM) (8.900) (ACDelco #19115561)
|
2003-2007 |
02 |
|
| 005 |
12160210 |
COVER, BAT POS CBL TERM (RED) (SURROUNDS CABLE END AT BATT SIDE TERM) |
N257 (06-36) (LQ4) |
2005-2007 |
01 |
| 006 |
12160209 |
COVER, BAT NEG CBL TERM (BLACK VINYL) (SURROUNDS CABLE END AT BATT SIDE TERM) |
N257 (06-36) (LQ4) |
2005-2007 |
01 |
| 007 |
19001845 |
BATTERY, (CCA 840) (SIDE TERM) (305X178X186) (US DEALERS CONTACT ACDELCO WD FOR ORDERING ; PRICING INFO) (ACDelco #79-6YR) (PROFESSIONAL - 6 YR) |
N257 (06) (LQ4) |
2003-2006 |
01 |
| 007 |
19001845 |
BATTERY, (CCA 840) (SIDE TERM) (305X178X186) (US DEALERS CONTACT ACDELCO WD FOR ORDERING ; PRICING INFO) (ACDelco #79-6YR) (PROFESSIONAL - 6 YR) |
N257 (36) (LQ4) |
2005-2006 |
01 |
| 008 |
12125347 |
CONDUIT, 10MM X 15 FEET (BLA/GRA NYLON) (BAT CBL) |
|
2003-2007 |
AR |
| 009 |
88861277 |
CABLE, BAT NEG (INCLS 11) (ACDelco #2SD35XA) (ALL MAKES) |
N257 (06) (LQ4) |
2005-2006 |
AR |
| 009 |
88861277 |
CABLE, BAT NEG (INCLS 11) (ACDelco #2SD35XA) (ALL MAKES) |
N257 (36) (LQ4) |
2005-2006 |
AR |
| 009 |
88986345 |
CABLE, BAT NEG (INCLS 11) (ACDelco #2SX31-1B) |
N257 (06-36) (LQ4) |
2005-2007 |
01 |
| 010 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (BAT NEG CBL)
|
2003-2007 |
01 |
|
| 011 |
|
CLIP, BAT NEG CBL (PART OF 9) |
|
2003-2007 |
|
| 012 |
11513703 |
БОЛТ, HFH M8X1.25X18 (ENG WRG HARN GND) |
|
2003-2007 |
01 |
| 013 |
08919355 |
CONDUIT, ELECTRICAL, 15 FT ROLL X 1/2 I.D. (AIR CMPR COOL RTN HOSE) |
|
2003-2007 |
AR |
| 014 |
19130464 |
STRAP, TIE 0.38 WIDTH, BUNDLE DIA 1/16-1-3/4, 8.27 LENGTH, NYLON 6/6 FITS 0. (BAT POS CBL)
|
2003-2007 |
01 |
|
| 015 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (BAT POS CBL RET) |
|
2003-2007 |
01 |
| 016 |
15326075 |
CHANNEL, BAT POS CBL (240MM LONG) |
N257 (06-36) (LQ4) |
2005-2007 |
01 |
| 017 |
15326303 |
RETAINER, BAT CBL (TO CHANNEL) |
N257 (06-36) (LQ4) |
2005-2007 |
01 |
| 018 |
15022958 |
CLIP, BAT POS CBL (RETAINS 9.5MM STL TUBING) |
N257 (06-36) (LQ4) |
2005-2007 |
01 |
| 019 |
11516521 |
БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (BAT POS CBL CLIP) |
|
2003-2007 |
01 |
| 020 |
15321247 |
CABLE, BAT POS (1981.2MM LG (INCLS 2) (POS CABLE ONLY) (ACDelco #2SX78-1A) |
N257 (LQ4) |
2003-2007 |
01 |
| 021 |
21021808 |
NUT, STRTR SOL CBL (M8X1.25X6, BRASS)
| N257 (06-36) (LQ4) |
2005-2007 |
01 |
|
| 022 |
89017844 |
STARTER, (REMAN) (PROD 12588052) (ACDelco #323-1637) (DELCO SERIES PG260H)
| N257 (LQ4) |
2006-2007 |
01 |
|
| 023 |
15045107 |
BRACKET, BAT POS CBL J/BLK |
N257 |
2003-2007 |
01 |
| 024 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (BAT POS CBL J/BLK BRKT) |
|
2003-2007 |
02 |
| 025 |
12191376 |
BLOCK, BAT POS CBL JUNC (W/1 BOLT) |
N2 |
2003-2007 |
01 |
| 026 |
19116063 |
NUT, BAT POS CBL EXTN CBL J/BLK LEAD (2.483) |
N257 (06-36) (LQ4) |
2006-2007 |
01 |
| 027 |
15263859 |
GENERATOR, (PHY ID Z7/ NEW) (ACDelco #15263859) (DELCO SERIES AD244, IR)
| N257 (06-36) (LQ4, KG3) |
2006-2006 |
01 |
|
| 028 |
11609961 |
NUT, CONICAL SPRING WASHER, M6X1, 14 MM WIDE, 6.5 MM THICK (BAT POS CBL) |
|
2006-2007 |
01 |
| 029 |
|
BOOT, WRG HARN TERM (PART OF 30) |
|
2003-2007 |
|
| 030 |
15321209 |
CABLE, GEN (INCLS 29) (286MM LG) (FUSIBLE LINK) (2.480) (ACDelco #8XX11FS) |
N257 |
2003-2007 |
01 |
| 030 |
15321209 |
CABLE, GEN (INCLS 29) (286MM LG) (FUSIBLE LINK) (ACDelco #8XX11FS) |
N257 |
2003-2007 |
01 |
