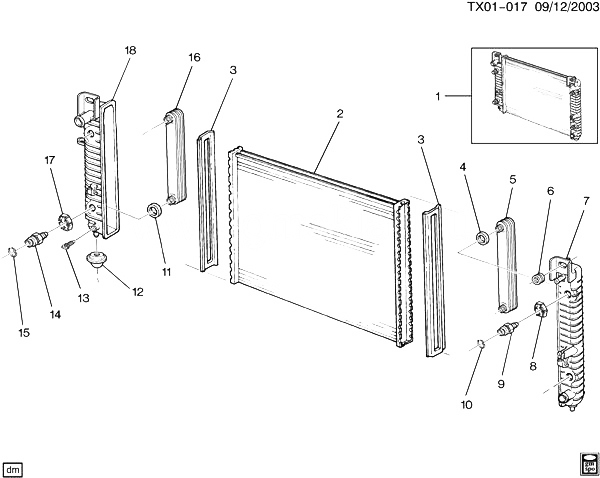

(TX01-017) - 2003-2009 N2 РАДИАТОР В СБОРЕ HUMMER - H2 SUV 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15841574 РАДИАТОР, (CORE SIZE 34IN X 18 1/2IN X 1 1/8IN, CODE ACY, ARY, APA, ATW, TRANS OIL CLR) (INCLS 2-18) (ACDelco #21653) N257 (06-36) (LQ4) 2005-2007 01
002 CORE, RAD 2003-2009
003 52469151 GASKET KIT, RAD TK (ACDelco #52469151) N257 (06-36) 2005-2006 01
004 GASKET, RAD TK 2003-2009
005 COOLER, TRANS FLUID 2004-2009
006 INSULATOR, RAD UPR 2003-2009
007 TANK, RAD OTLT 2004-2009
008 NUT, RAD 2003-2009
009 15226661 CONNECTOR, TRANS FLUID CLR PIPE (INCLS 10) (9/16-18) (3/8 BODY QUICK CONNECT) (AT RAD) (ACDelco #15226661) N2 2004-2009 02
009 19210848 CONNECTOR, TRANS FLUID CLR PIPE (INCLS 10) (W/O BEVEL WASHER) (ACDelco #19210848) N2 (M32) 2004-2007 02
010 24205103 RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 9) (EXPANDING SPRING WIRE) (ACDelco #24205103) N2 2003-2009 01
011 GASKET, RAD TK 2003-2009
012 89019121 MOUNT, RAD LWR N2 2003-2009 02
013 COCK, RAD DRN 2004-2009
014 15190249 CONNECTOR, ENG OIL CLR HOSE (INCLS 15) (ALUMINUM) N2 (LQ4) 2004-2007 02
015 15724727 RETAINER, ENG OIL CLR CONN (PART OF 14) (1/2 WIRE CLIP) N2 2003-2006 01
016 COOLER, ENG OIL 2004-2009
017 NUT, RAD 2003-2009
018 TANK, RAD INL 2004-2009
