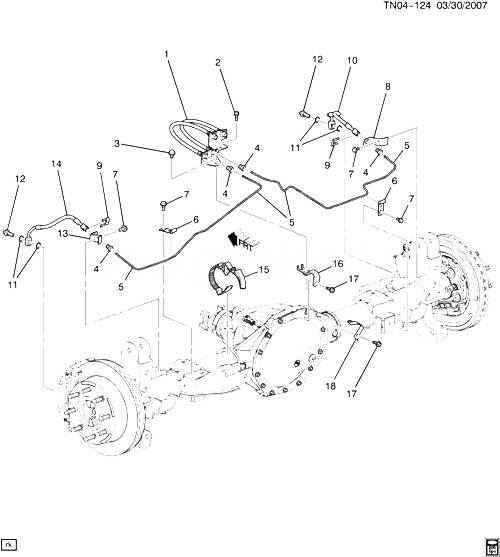

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15288885 |
HOSE, RR BRK |
N2 (JH6) |
2008-2009 |
01 |
| 002 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR BRK HOSE BRKT) (ACDelco #11570082)
|
2008-2009 |
01 |
|
| 003 |
11610167 |
БОЛТ, HFH M8X1.25X18 (BRK PIPE BRKT) |
|
2008-2009 |
01 |
| 004 |
11569751 |
NUT, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M (RR BRK C/OVR PIPE)
|
2008-2009 |
04 |
|
| 005 |
88983905 |
PIPE, BRK (3/16 X 16 FT) (BULK TUBING) (NYLON COATING)
| N2 (JH6) |
2008-2009 |
AR |
|
| 006 |
11561240 |
CLAMP, SINGLE CLOSED-LOOP, DIA 7.25MM, C-TO-C 36.5, WIDTH 20, HOLE DIA 11 (RR BRK C/OVR PIPE) (8.948) |
|
2008-2009 |
02 |
| 007 |
11508534 |
БОЛТ, HFH, M8X1.25X16, 16.8 O.D., MACH PT, 6171M, POR (RR BRK C/OVR PIPE BRKT)
|
2008-2009 |
04 |
|
| 008 |
|
BRACKET, RR BRK HOSE (PART OF 10) |
|
2008-2009 |
|
| 009 |
|
CLIP, RR BRK HOSE (PART OF 10, 14) |
|
2008-2009 |
|
| 010 |
15288887 |
HOSE, RR BRK (INCLS 8, 9, 11, 12) |
N2 (JH6) |
2008-2009 |
01 |
| 011 |
|
WASHER, RR BRK HOSE (PART OF 10, 14) |
|
2008-2009 |
|
| 012 |
|
БОЛТ, RR BRK HOSE (PART OF 10, 14) |
|
2008-2009 |
|
| 013 |
|
BRACKET, RR BRK HOSE (PART OF 14) |
|
2008-2009 |
|
| 014 |
15288886 |
HOSE, RR BRK (INCLS 9, 11-13) |
N2 (JH6) |
2008-2009 |
01 |
| 015 |
15234822 |
STRAP, RR BRK PIPE |
N2 |
2008-2009 |
01 |
| 016 |
15752275 |
BRACKET, RR BRK C/OVR PIPE |
N2 (GT4) |
2008-2009 |
01 |
| 017 |
12471307 |
БОЛТ, R/AXL HSG CVR (M8X1.25X20) |
N2 (GT4) |
2008-2009 |
14 |
| 018 |
15170787 |
CLIP, RR BRK PIPE |
N2 (GT4) |
2008-2009 |
01 |
