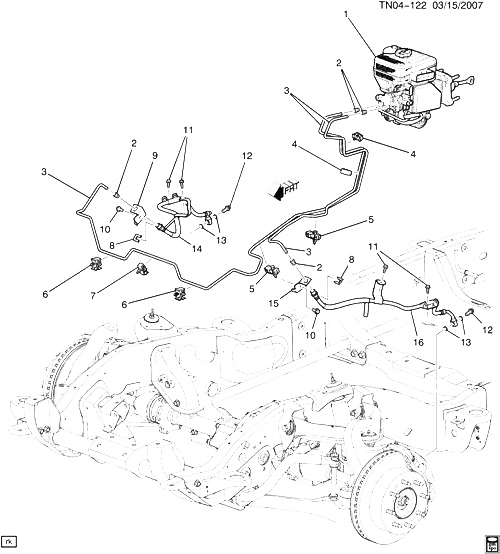

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
CYLINDER, BRK MAS (W/ P/B BOOS ; CHAS CONT MDL) (SEE GROUP 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2009 |
|
| 002 |
11518522 |
NUT, HX FLARED TUBE, M12X1.0X20.5, 11 TUBE, SAE1010, GMW4707M (FRT BRK FRT PIPE) |
|
2008-2009 |
04 |
| 003 |
88936298 |
PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (BRK) |
|
2008-2009 |
AR |
| 004 |
11570545 |
CLIP, FRT BRK FRT PIPE |
N257 (JH6) |
2008-2009 |
02 |
| 005 |
11561434 |
CLIP, FRT BRK FRT PIPE (59.4X20.0X36.0) (HOLDS TWO 6.65 DIA TUBES AND ONE 10 DIA TUBE, NYLON 6/6-BLACK) |
N257 (JH6) |
2008-2009 |
02 |
| 006 |
11561422 |
CLIP, FRT BRK FRT PIPE (FITS INTO DIA 8 HOLE) |
N257 (JH6) |
2008-2009 |
02 |
| 007 |
11561421 |
CLIP, FRT BRK FRT PIPE (FITS INTO DIA 6 HOLE) |
N257 (JH6) |
2008-2009 |
01 |
| 008 |
|
RETAINER, FRT BRK HOSE (PART OF 14, 16) |
|
2008-2009 |
|
| 009 |
|
BRACKET, FRT BRK HOSE (PART OF 14) |
|
2008-2009 |
|
| 010 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR BRK HOSE BRKT) (ACDelco #11570082)
|
2008-2009 |
02 |
|
| 011 |
11516521 |
БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (FRT BRK HOSE) |
|
2008-2009 |
04 |
| 012 |
11516521 |
БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (PART OF 14, 16) |
|
2008-2009 |
AR |
| 013 |
21012386 |
WASHER, FRT BRK HOSE (PART OF 14, 16) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386)
| N2 (JH6) |
2008-2009 |
04 |
|
| 014 |
15921148 |
HOSE, FRT BRK (INCLS 8, 9, 12, 13) (ACDelco #176-1513) |
N2 (JH6) |
2008-2009 |
01 |
| 015 |
|
BRACKET, FRT BRK HOSE (PART OF 16) |
|
2008-2009 |
|
| 016 |
15921147 |
HOSE, FRT BRK (INCLS 8, 12, 13, 15) (ACDelco #15921147) |
N2 (JH6) |
2008-2009 |
01 |
