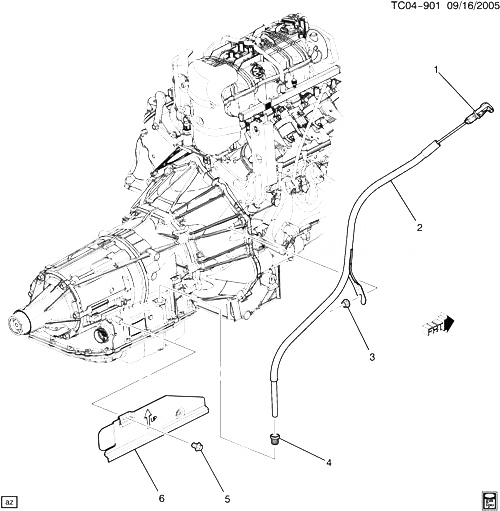

(TC04-901) - 2008-2009 N2 TRANSMISSION FILLER TUBE INDICATOR(MYC) HUMMER - H2 SUT 2009
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 15880157 | INDICATOR, TRANS FLUID LVL | N2 (MYC) | 2008-2009 | 01 |
| 002 | 25878527 | TUBE, TRANS FLUID FIL | N2 (MYC) | 2009-2009 | 01 |
| 003 | 11516780 | ГАЙКА, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (TRANS FLUID FIL TUBE) (8.917)|
| 2008-2009 |
01 |
|
| 004 | 15796802 | SEAL, TRANS FLUID FIL TUBE| N2 (MYC) |
2008-2009 |
01 |
|
| 005 | 15029928 | БОЛТ, TRANS H/SHLD (M8X1.25X12) | N2 (MYC) | 2008-2009 | 02 |
| 006 | 25980339 | SHIELD, TRANS HT | N2 (MYC) | 2008-2009 | 01 |
