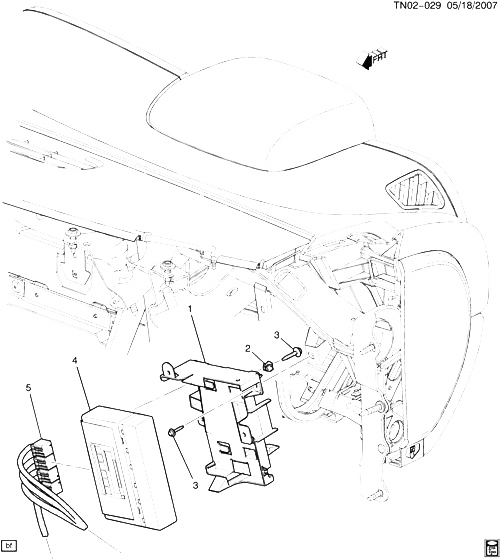

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15093913 |
BRACKET, BCM |
N2 |
2008-2009 |
01 |
| 002 |
11517228 |
NUT, PANEL, M4.2X1.41, 8.5X11.9, 2.3-2.8 THICK PNL, FITS 11.2X9.2 HOLE 1050, 4250M (BCM BRKT) |
|
2008-2009 |
02 |
| 003 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (BCM BRKT) (9.665)
|
2008-2009 |
03 |
|
| 004 |
15921352 |
MODULE, BODY CONT (REQUIRES PROGRAMMING) (LABELED 15921352) (ACDelco #15921352) |
N2 |
2008-2009 |
01 |
| 004 |
15921352 |
MODULE, BODY CONT (REQUIRES PROGRAMMING) (LABELED 15921352) (2.560) (ACDelco #15921352) |
N2 |
2008-2009 |
01 |
| 005 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2009 |
|
