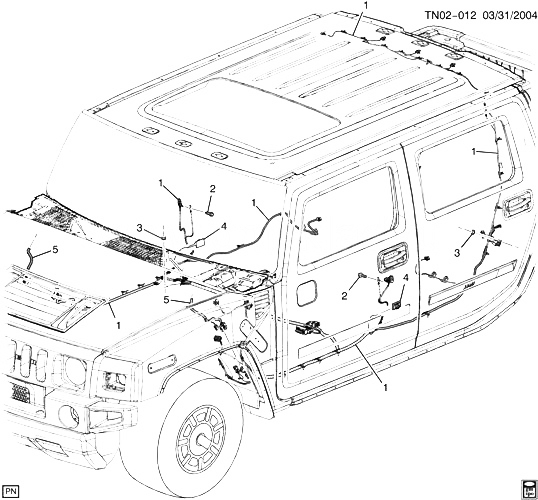

(TN02-012) - 2005-2009 N2(36) ПРОВОДКА-КУЗОВ HUMMER - H2 SUT 2009
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 25942432 | HARNESS, BODY WRG (INCLS 4) | N257 (36) (EXC U42) | 2009-2009 | 01 |
| 001 | 25942434 | HARNESS, BODY WRG (INCLS 4) | N257 (36) (U42) | 2009-2009 | 01 |
| 002 | 11516872 | BOLT-HEX M6X1X20, 11.5 THD, 17 OD, 6202M, 6280M (BODY WRG HARN GND) | 2005-2009 | 02 | |
| 003 | 11609411 | ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY WRG HARN GND)|
| 2005-2009 |
02 |
|
| 005 | HARNESS, I/P WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) | 2005-2009 |
