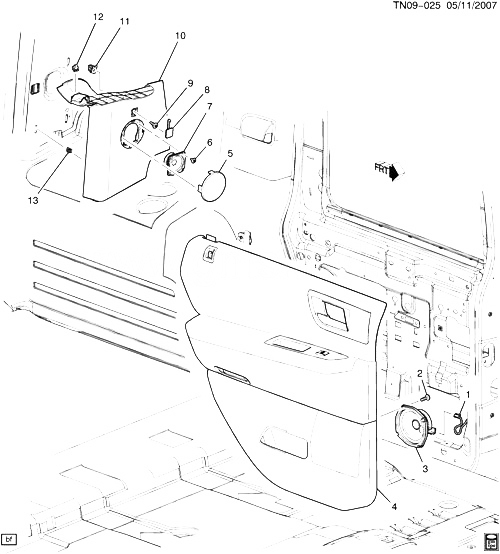

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, RR S/D DR WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ЗАДНЯЯ ДВЕРЬ FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2009 |
|
| 002 |
11509231 |
SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (PART OF 4)
|
2008-2009 |
04 |
|
| 003 |
25725733 |
ДИНАМИК, RDO RR S/D (PART OF 4) (ACDelco #25725733)
| N2 |
2008-2009 |
01 |
|
| 004 |
25888415 |
PANEL, RR S/D TR (INCLS 2, 3) (EBONY) |
N257 (19I) |
2008-2009 |
01 |
| 004 |
25888416 |
PANEL, RR S/D TR (INCLS 2, 3) (BRICK) (BUILT PRIOR TO 8/22/07) |
N2 (24I) |
2008-2008 |
01 |
| 004 |
25888418 |
PANEL, RR S/D TR (INCLS 2, 3) (EBONY) |
N257 (06-36) (19I) |
2008-2008 |
01 |
| 004 |
25888419 |
PANEL, RR S/D TR (INCLS 2, 3) (BRICK) (BUILT PRIOR TO 8/22/07) |
N257 (06-36) (24I) |
2008-2008 |
01 |
| 005 |
|
GRILLE, RDO BODY RR COR UPR GARN MLDG SPKR (PART OF 10) |
|
2008-2009 |
|
| 006 |
11509253 |
SCREW, W/LRG WA HD, M4.2X1.4X10, 11.3 O.D., BHL PT, STL, NO (PART OF 10) |
|
2008-2009 |
02 |
| 007 |
15186672 |
ДИНАМИК, RDO BODY RR COR UPR GARN MLDG (PART OF 10) (ACDelco #15186672)
| N257 (06) |
2008-2009 |
02 |
|
| 008 |
|
PLUG, BODY RR COR UPR GARN MLDG (PART OF 10) |
|
2008-2009 |
|
| 009 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (PART OF 10)
|
2008-2009 |
01 |
|
| 010 |
25909263 |
MOLDING, BODY RR COR UPR GARN (INCLS 5-9, 11-13) (SEE GROUP 16.000 ОТДЕЛКА-ИНТЕРЬЕР/BODY SIDE FOR DETAILED ILLUSTRATED VIEW) (EBONY) |
N2 (06) |
2008-2009 |
01 |
| 010 |
25909265 |
MOLDING, BODY RR COR UPR GARN (INCLS 5-9, 11-13) (SEE GROUP 16.000 ОТДЕЛКА-ИНТЕРЬЕР/BODY SIDE FOR DETAILED ILLUSTRATED VIEW) (EBONY) |
N2 (06) |
2008-2009 |
01 |
| 011 |
11609651 |
RETAINER, BODY RR COR G/MLDG (PART OF 10) (M21.8X15.0X20.5) (14.731)
| N2 (06) |
2008-2009 |
02 |
|
| 012 |
10148727 |
RETAINER, BODY RR COR UPR G/MLDG (PART OF 10) (U-TYPE) (6.760) |
N2 (06) |
2008-2009 |
04 |
| 013 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 10)
|
2008-2009 |
03 |
|
