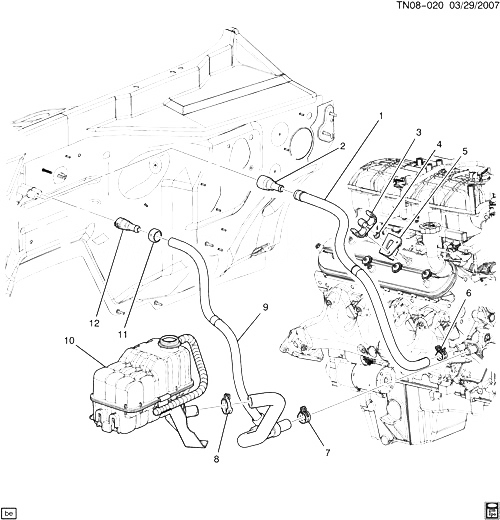

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15200960 |
HOSE, HTR INL (INCLS 2) |
N2 (36) |
2008-2009 |
01 |
| 002 |
|
CONNECTOR, HTR INL HOSE (PART OF 1) |
|
2008-2008 |
|
| 003 |
15050765 |
CLIP, HTR HOSE (PART OF 5) (73.0MM WIDE) |
N2 |
2008-2009 |
01 |
| 004 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HTR HOSE CLIP BRKT)
|
2008-2009 |
01 |
|
| 005 |
15778415 |
BRACKET, HTR HOSE CLIP (INCLS 3) |
N2 |
2008-2009 |
01 |
| 006 |
11517133 |
CLAMP, SPRING, 22-26MM, 24 NOM., BLK (HTR INL HOSE)
|
2008-2009 |
01 |
|
| 007 |
11516225 |
CLAMP, 25MM DIA, 15MM WIDTH, 6298 MATL (RAD SURGE TK OTLT HOSE) |
|
2008-2009 |
01 |
| 008 |
11562101 |
CLAMP, SPRING BAND, 35MM NOM (RAD SURGE TK OTLT HOSE) |
|
2008-2009 |
01 |
| 009 |
19130370 |
HOSE, RAD SURGE TK OTLT (INCLS 11, 12) |
N2 (36) |
2008-2009 |
01 |
| 010 |
15808715 |
TANK, RAD SURGE (SEE GROUP 01.000 ШЛАНГИ РАДИАТОРА FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15808715)
| N2 |
2008-2009 |
01 |
|
| 011 |
|
STRAP, RAD SURGE TK OTLT HOSE (PART OF 9) |
|
2008-2008 |
|
| 012 |
15032062 |
CONNECTOR, HTR OTLT HOSE (PART OF 9) (NATURAL) (74.93MM LONG) (QUICK CONNECT ASM) |
N2 (36) |
2008-2009 |
01 |
| 012 |
15059584 |
CONNECTOR, HTR OTLT HOSE (PART OF 9) (76.02MM LONG) (QUICK CONNECT ASM) |
N2 |
2008-2009 |
01 |
| 012 |
15151875 |
CONNECTOR, HTR OTLT HOSE (PART OF 9) (BLACK) (74.93MM LONG) (QUICK CONNECT ASM) |
N2 (36) |
2008-2009 |
01 |
