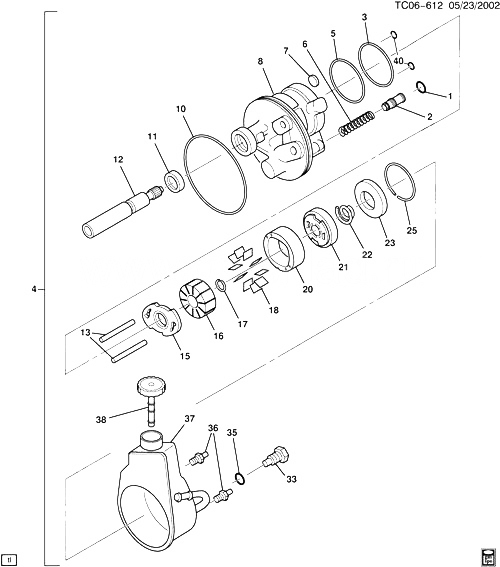

(TC06-612) - 2006-2009 N2 НАСОС РУЛЕВОГО УПРАВЛЕНИЯ ASM HUMMER - H2 SUT 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAL, P/S PUMP FLOW C/VLV (O RING) (PART OF 37) (*KIT1) 2006-2009
002 26065843 VALVE, P/S PUMP FLOW CONT (VALVE ONLY) (*KIT2) N2 (JH6) 2008-2009 01
003 SEAL, P/S PUMP END PLT (O RING) (*KIT1) 2006-2009
004 20756710 PUMP, P/S (INCLS 1-3, 5-8, 10-13, 15-18, 20-23, 25, 33, 35-38, 40) N2 (JH6) 2008-2009 01
005 SEAL, P/S PUMP PRESS PLT (O RING) (*KIT1) 2006-2009
006 SPRING, P/S PUMP FLOW C/VLV (*KIT2) 2007-2009
007 MAGNET, P/S FLUID RSVR (*KIT1) 2006-2009
008 HOUSING, P/S PUMP 2006-2009
010 SEAL, P/S PUMP RSVR (O RING) (PART OF 37) (*KIT1) 2006-2009
011 15277770 SEAL, P/S PUMP SHF (I.D.22.78MM) (USED W/19MM SHAFT) (*KIT1) N2 (JH6) 2008-2009 01
012 SHAFT, P/S PUMP 2006-2009
013 PIN, P/S PUMP RING 2006-2009
015 PLATE, P/S PUMP THR 2006-2009
016 ROTOR, P/S PUMP 2006-2009
017 RING KIT, P/S PUMP SHF RET 2006-2009
018 VANE, P/S PUMP 2006-2009
020 RING, P/S PUMP 2006-2009
021 PLATE, P/S PUMP PRESS 2006-2009
022 SPRING, P/S PUMP PRESS PLT 2006-2009
023 PLATE, P/S PUMP END 2006-2009
025 RING, P/S PUMP END PLT RET 2006-2009
033 26025709 FITTING, P/S PUMP (*KIT2) N2 (JH6) 2008-2009 01
035 SEAL, P/S PUMP FTG (O RING) (*KIT1) 2006-2009
036 26009574 STUD, P/S PUMP (M10X1.5X16) (SHORT) N2 (JH6) 2008-2009 01
037 26045594 RESERVOIR KIT, P/S FLUID (INCLS 1, 10, 40) N2 (JH6) 2008-2009 01
038 26095194 CAP, P/S PUMP RSVR N2 (JH6) 2008-2009 01
040 SEAL, P/S PUMP STUD (O RING) (PART OF 37) (*KIT1) 2006-2009
K01 15825938 SEAL KIT, P/S PUMP (INCLS 1, 3, 5, 7, 10, 11, 35, 40) (FRT SEAL NOT INCL) N2 (JH6) 2008-2009 01
K02 15246463 VALVE KIT, P/S PUMP FLOW CONT (INCLS 2, 6, 33) N2 (JH6) 2008-2009 01
