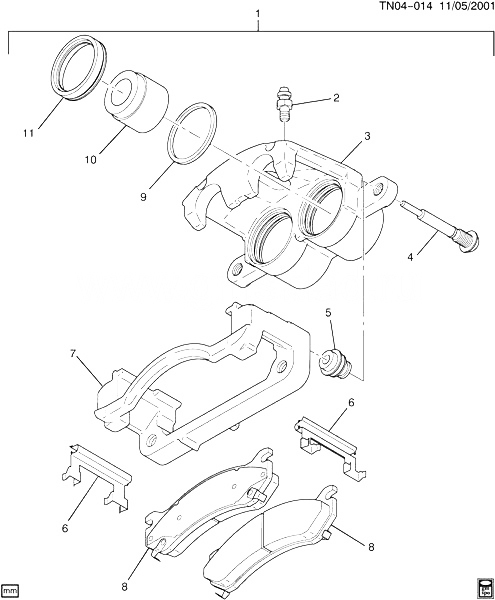

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
СУППОРТ, ЗАДНИЙ ТОРМОЗНОЙ |
|
2003-2007 |
|
| 002 |
25846360 |
VALVE, RR BRK CLPR BLEDR (M10 X 1.5) (M10X1.5) (ACDelco #25846360) |
N257 (GT5) |
2003-2007 |
02 |
| 003 |
18040101 |
СУППОРТ, ЗАДНИЙ ТОРМОЗНОЙ (INCLS 2, 9-11) (SERVICE CALIPER ONLY) (INCLS CALIPER, BOLT, BUSHING, LUBRICANT) |
N257 (GT5) |
2003-2007 |
01 |
| 003 |
25848001 |
СУППОРТ, ЗАДНИЙ ТОРМОЗНОЙ (INCLS 2, 9-11) (4.667) (ACDelco #173-0549) |
N257 (GT5) |
2003-2007 |
01 |
| 004 |
15012506 |
БОЛТ, RR BRK CLPR (M14X2.0X37, 37THD) (27.3-OD., 10.9, GM6174M) (*KIT2)
| N2 (GT5) |
2006-2007 |
04 |
|
| 004 |
18040103 |
БОЛТ, RR BRK CLPR (M16X1.5X99.5) (TORX HEAD) (INCLS 1/4 OZ. SILICONE GREASE PACKET) (*KIT2) (ACDelco #179-1337)
| N2 (GT5) |
2006-2007 |
04 |
|
| 004 |
88925518 |
БОЛТ, RR BRK CLPR (*KIT2) (ACDelco #18K1014) (DURASTOP) |
N257 (06-36) (LQ4) |
2007-2007 |
02 |
| 005 |
18029812 |
BUSHING KIT, RR BRK CLPR (*KIT2)
| N2 (GT5) |
2006-2007 |
AR |
|
| 006 |
18040097 |
SPRING, RR DISC BRK PAD (*KIT3) (ACDelco #179-1339)
| N257 (GT5) |
2003-2007 |
02 |
|
| 007 |
18040098 |
BRACKET, RR BRK CLPR |
N257 (GT5) |
2003-2007 |
01 |
| 007 |
18040099 |
BRACKET, RR BRK CLPR |
N257 (GT5) |
2003-2007 |
01 |
| 008 |
|
PAD KIT, RR DISC BRK (*KIT3) |
|
2003-2007 |
|
| 009 |
|
SEAL, RR BRK CLPR PSTN (*KIT2) |
|
2003-2007 |
|
| 010 |
18040104 |
PISTON, RR BRK CLPR (ACDelco #179-1338) |
N257 (GT5) |
2003-2007 |
04 |
| 011 |
|
BOOT, RR BRK CLPR PSTN (*KIT2) |
|
2003-2007 |
|
| K02 |
18040102 |
PISTON KIT, RR BRK CLPR (PBR AUTOMOTIVE) (INCLS 4, 5, 9, 11) (INCLS BOOT ; SEAL) (4.665) |
N257 (GT5) |
2003-2007 |
02 |
| K03 |
18041762 |
PAD KIT, RR DISC BRK (INCLS 6, 8) (ACDelco #171-626)
| N257 (GT5) |
2003-2007 |
01 |
|
