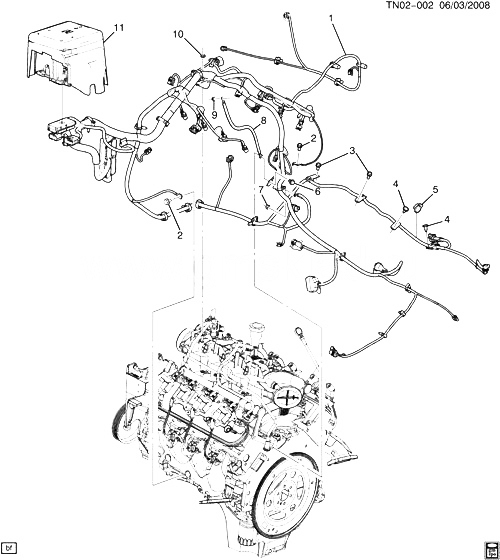

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25810825 |
HARNESS, ENG WRG |
N2 (LQ4) |
2007-2007 |
01 |
| 002 |
11610167 |
БОЛТ, HFH M8X1.25X18 (ENG WRG HARN GND) |
|
2003-2009 |
02 |
| 003 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (ENG WRG HARN OXY SEN LEAD CLIP) |
|
2003-2009 |
02 |
| 004 |
11561878 |
RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (SECD OXY SEN WRG HARN)
|
2003-2009 |
02 |
|
| 005 |
01470030 |
CLAMP, WORM TYPE (11/16 TO 1 5/16) (OXY SEN WIRE) (ACDelco #1470030) |
|
2003-2009 |
01 |
| 006 |
11609619 |
БОЛТ, HEX W/ FL WA-M10X1.5X16, 20 OD, 10.9 STL, GMW3200 FINISH (ENG WRG HARN GND)
|
2003-2009 |
01 |
|
| 007 |
11609467 |
NUT HEX, M5X0.8, 4.55 THK, 5 STL, GMW3200 (ENG WRG HARN START MTR LEAD) |
|
2003-2009 |
01 |
| 008 |
15321224 |
STRAP, ENG GND (21IN) (ACDelco #6EG21) |
N257 (06-36) (KG3) |
2005-2007 |
01 |
| 009 |
11609716 |
NUT-HFH, M6X1X5.85, 14.2 OD, 9 STL, GMW3200 (ENG GND STRP) |
|
2003-2009 |
01 |
| 010 |
11516793 |
ГАЙКА, HEX, W/CON WA, M6X1X5.5, 16 O.D., 9, 7111M (ENG WRG HARN RET) |
|
2003-2009 |
01 |
| 011 |
|
BLOCK, ENG WRG HARN JUNC (SEE GROUP 02.000 RELAYS ; MODULES FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2009 |
|
