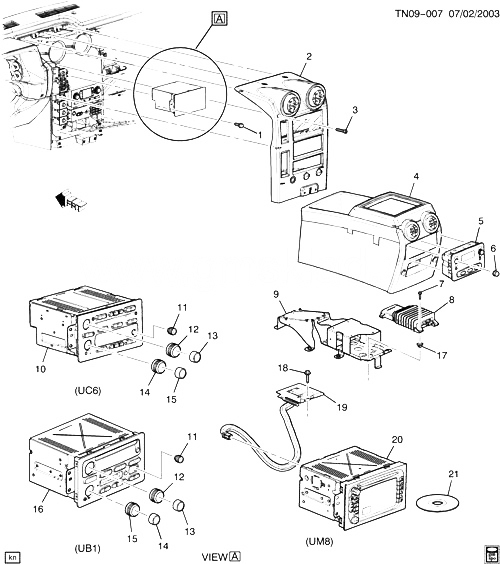

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO) (9.665)
|
2004-2007 |
03 |
|
| 002 |
25819206 |
BEZEL, I/P ACSRY (SEE GROUP 16.000 INSTRUMENT PANEL ; RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) (EBONY) |
N2 (EXC WS2) |
2006-2007 |
01 |
| 003 |
11518916 |
БОЛТ, I/P ACSRY BZL (6 X 1 X 45) (9.264)
| N2 |
2004-2007 |
02 |
|
| 004 |
88986338 |
CONSOLE, F/FLR (SEE GROUP 16.000 FLOOR CONSOLE FOR DETAILED VIEW) (INCLS 5) (WHEAT) (LESS REAR PNL) |
N257 (06) (50I) |
2004-2007 |
01 |
| 004 |
89044119 |
CONSOLE, F/FLR (SEE GROUP 16.000 FLOOR CONSOLE FOR DETAILED VIEW) (INCLS 5) (EBONY) |
N257 (06-36) (48I) |
2005-2007 |
01 |
| 005 |
15850810 |
CONTROL, AM/FM STEREO ; T/PLYR ; CD PLYR RDO (PART OF 4) (INCLS 6) (ACDelco #15850810)
| N257 |
2006-2007 |
01 |
|
| 006 |
12205116 |
KNOB, RDO VOL CONT (PART OF 5) |
N257 |
2005-2007 |
02 |
| 007 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO SPKR AMPF) (9.665)
|
2004-2007 |
04 |
|
| 008 |
15267753 |
AMPLIFIER, RDO SPKR (ACDelco #15267753) |
N257 (06) |
2004-2007 |
01 |
| 008 |
15267754 |
AMPLIFIER, RDO SPKR (ACDelco #15267754)
| N257 (36) |
2005-2007 |
01 |
|
| 009 |
15113995 |
BRACKET, A/TRNS CONT (W/ALIGNED BOLTS TO SHIFTER ASM) |
N257 |
2005-2006 |
01 |
| 010 |
15927261 |
RADIO, AM/FM STEREO ; CLK ; T/PLYR ; CD PLYR (INCLS 11-15) (LABELED 15927261) (ACDelco #15927261) |
N2 (UC6) |
2006-2007 |
01 |
| 011 |
09354886 |
KNOB, RDO TONE CONT (PART OF 10, 16) (AUDIO) (ACDelco #9354886) |
N2 (UB1, UC6) |
2005-2007 |
01 |
| 012 |
12201805 |
KNOB, RDO VOL CONT (PART OF 10, 16) (RING) |
N2 (UB1, UC6, UL8) |
2005-2007 |
01 |
| 012 |
19115568 |
KNOB, RDO VOL CONT (PART OF 10, 16) |
N2 (UM8) |
2006-2007 |
01 |
| 013 |
12210421 |
PUSHBUTTON, RDO PWR (PART OF 10, 16) (9.652) |
N2 (UC6) |
2005-2007 |
01 |
| 013 |
12210421 |
PUSHBUTTON, RDO PWR (PART OF 10, 16) |
N2 (UC6) |
2005-2007 |
01 |
| 013 |
12215318 |
PUSHBUTTON, RDO PWR (PART OF 10, 16) (9.652) |
N2 (UB1) |
2005-2007 |
01 |
| 014 |
19116095 |
PUSHBUTTON, RDO DISPLAY (PART OF 10, 16) (ACDelco #19116095) |
N2 (UC6) |
2005-2006 |
01 |
| 014 |
19116096 |
PUSHBUTTON, RDO DISPLAY (PART OF 10, 16) (ACDelco #19116096) |
N2 (UB1, UC6) |
2005-2007 |
01 |
| 015 |
12201802 |
KNOB, RDO TUNING CONT (PART OF 10, 16) (RING SOFT TOUCH AS MOLDED) (ACDelco #12201802) |
N2 (UB1, UC6, UL8) |
2005-2007 |
01 |
| 015 |
19115568 |
KNOB, RDO TUNING CONT (PART OF 10, 16) |
N2 (UM8) |
2006-2007 |
01 |
| 016 |
15849619 |
RADIO, AM/FM STEREO ; CLK ; T/PLYR ; CD PLYR (INCLS 11-15) (ACDelco #15849619) (REQUIRES DEALER REPROGRAMMING.)
| N2 (UB1) |
2005-2007 |
01 |
|
| 017 |
11589183 |
NUT, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (RDO SPKR AMPF) |
|
2004-2007 |
04 |
| 018 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (COMN INTERFACE MDL BRKT) (9.665)
|
2004-2007 |
01 |
|
| 019 |
15135178 |
MODULE, RDO ANT (INCLS CABLE AND GPS ANTENNA) (ACDelco #15135178) |
N257 (UM8) |
2004-2007 |
01 |
| 020 |
15800000 |
RADIO, AM/FM STEREO ; AUDIO DISC PLYR ; NAVN (ACDelco #15800000) |
N2 (UM8) (EXC UL8) |
2005-2007 |
01 |
| 020 |
15806581 |
RADIO, AM/FM STEREO ; AUDIO DISC PLYR ; NAVN (ACDelco #15806581) |
N2 (UL8, UM8) (EXPORT) |
2006-2007 |
01 |
| 021 |
|
DISC, NAVN DATA (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR LATEST SERVICE INFORMATION) |
|
2004-2007 |
|
