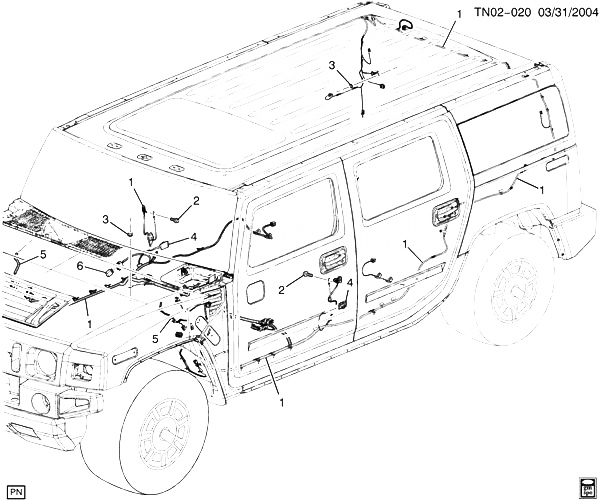

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15869960 |
HARNESS, BODY WRG (INCLS 4, 6) |
N257 (06) |
2005-2007 |
01 |
| 002 |
11516872 |
BOLT-HEX M6X1X20, 11.5 THD, 17 OD, 6202M, 6280M (BODY WRG HARN GND) |
|
2004-2007 |
02 |
| 003 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY WRG HARN GND)
|
2004-2007 |
02 |
|
| 004 |
12166036 |
SOCKET, C/LP (PART OF 1) (CLEAR) (W/LEADS ; LENS) (10.275) (ACDelco #LS66) |
N257 (06-36) |
2005-2007 |
02 |
| 005 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2007 |
|
| 006 |
13502676 |
RELAY, DR LK (BODY HARN) (PART OF 1) (2.485) (ACDelco #D1703A) |
N2 |
2004-2007 |
02 |
