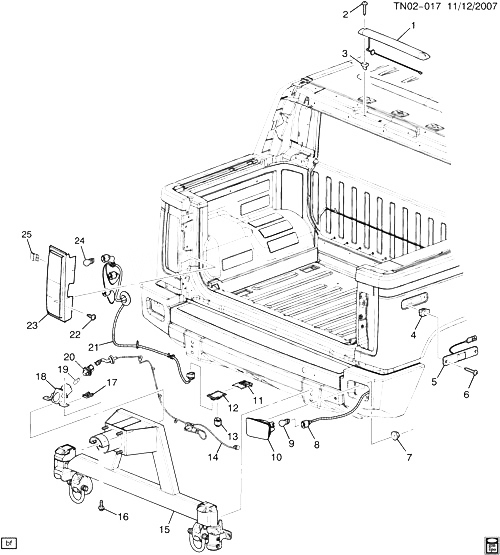

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15145321 |
LAMP, HIGH MT STOP
| N2 |
2005-2007 |
01 |
|
| 002 |
11519734 |
SCREW, ROUND WA M4.2X1.41X25, 19.2 THD, 8.38 OD, 6010M, 6138M, O-RING SEAL (HIGH MT S/LP) (8.906) |
|
2005-2007 |
02 |
| 003 |
11609857 |
NUT - M4.2X1.41, SAE 1050 STL, GMW3044 (HIGH MT S/LP) |
|
2005-2007 |
02 |
| 004 |
11570654 |
NUT, RR SI MKR LP (PART OF 5) (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665) |
N2 |
2005-2007 |
04 |
| 005 |
15114677 |
LAMP, RR SI MKR (INCL HARNESS) (INCLS 4, 6)
| N2 |
2005-2007 |
02 |
|
| 006 |
11519735 |
SCREW, ROUND WA, M4.2X1.41X20, 14.2 THD, 8.38 OD, 6010M, 6138M, O-RING SEAL (PART OF 5)
|
2005-2007 |
04 |
|
| 007 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (PARK ; T/SIG LP)
|
2005-2007 |
02 |
|
| 008 |
|
HARNESS, CHAS WRG (SEE GROUP 02.000 ЖГУТ ПРОВОДОВ/CHASSIS FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2007 |
|
| 009 |
12450108 |
BULB, TRADE #3157KX (PART OF 10) (2.679) (ACDelco #3157KX) (LONGER LIFE KRYPTON)
|
2005-2007 |
02 |
|
| 010 |
25952324 |
LAMP, TAIL (INCLS 9) (IN BUMPER) (INCLS SOCKET)
| N2 (36) |
2005-2007 |
01 |
|
| 010 |
25952325 |
LAMP, TAIL (INCLS 9) (IN BUMPER) (INCLS SOCKET)
| N2 (36) |
2005-2007 |
01 |
|
| 011 |
15034570 |
BRACKET, RR LP WRG HARN J/BLK (128.5MM LONG) |
N257 (06-36) |
2005-2007 |
01 |
| 012 |
15304995 |
BLOCK, RR LP WRG HARN JUNC
| N257 (06-36) |
2005-2007 |
01 |
|
| 013 |
12172671 |
PLUG, RR LIC PLT LP WRG HARN UNUSED CONN CAVITY |
N257 (06-36) |
2005-2007 |
01 |
| 014 |
15246319 |
HARNESS, RR LIC PLT LP WRG (ЗАПАСНОЕ КОЛЕСО CARRIER) (PART OF 15, INCLS 17-20) |
N257 |
2005-2007 |
01 |
| 015 |
25864505 |
CARRIER, SPA WHL (INCLS 14, 17-20 SEE GROUP 07.000 SPARE WHEEL CARRIER FOR DETAILED ILLUSTRATED VIEW) |
N257 |
2006-2007 |
01 |
| 016 |
22549046 |
SCREW, M4.2X1.4X25, 11.1 O.D., 6010M, NZ (RR LIC PLT LP) |
|
2005-2007 |
07 |
| 017 |
|
NUT, RR LIC PLT LP WRG HARN SHLD (PART OF 14, 15) |
|
2005-2007 |
|
| 018 |
05978454 |
LAMP, RR LIC PLT (PART OF 14, 15) (LOCATED ON CARRIER ASM, SPA WHL) |
N257 |
2005-2007 |
01 |
| 019 |
09421330 |
BULB, TRADE#194, 12V, 2CP (PART OF 14, 15) (ACDelco #L194) |
|
2005-2007 |
01 |
| 020 |
88986416 |
SOCKET, RR LIC PLT LP (PART OF 14, 15) (GRAY) (2-WAY FEMALE) (W/LEADS) (2.596) (ACDelco #LS44)
| N2 |
2005-2007 |
01 |
|
| 021 |
12335953 |
HARNESS, T/LP WRG (PART OF 23)
| N257 |
2005-2007 |
01 |
|
| 021 |
12335954 |
HARNESS, T/LP WRG (PART OF 23)
| N2 |
2005-2007 |
01 |
|
| 022 |
11517230 |
БОЛТ, TORX, W/WA, W/ADH, M6X1X20, 16.2 O.D., DOG PT, 10.9, GM6138M (T/LP SOC)
|
2005-2007 |
04 |
|
| 023 |
25784334 |
LAMP, TAIL (INCLS 21, 24, 25) |
N257 (36) |
2005-2007 |
01 |
| 023 |
25784335 |
LAMP, TAIL (INCLS 21, 24, 25) |
N257 (36) |
2005-2007 |
01 |
| 024 |
09441839 |
BULB, 12 VOLTS, 2.1 AMPS, 32 CP, TRADE NO.3057 (PART OF 23) (ACDelco #L3057) |
|
2005-2007 |
06 |
| 025 |
12335952 |
CLIP, T/LP HSG (PART OF 23) |
N257 |
2005-2007 |
04 |
