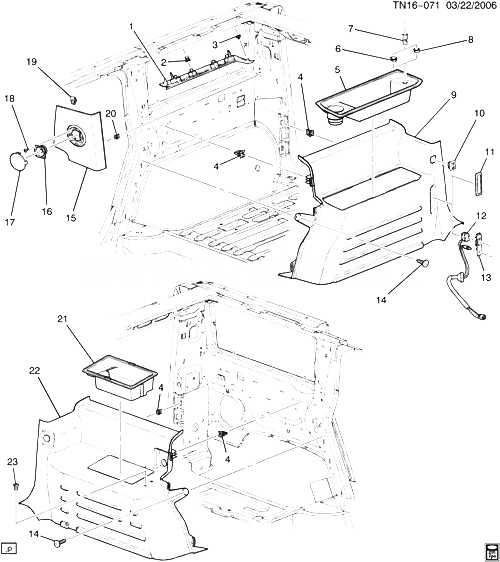

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
10358724 |
MOLDING, BODY SI R/WDO GARN (INCLS 2, 3) (EBONY) |
N2 (06) |
2005-2005 |
01 |
| 001 |
10358727 |
MOLDING, BODY SI R/WDO GARN (INCLS 2, 3) (EBONY) |
N2 (06) |
2005-2005 |
01 |
| 002 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 1)
|
2005-2007 |
08 |
|
| 003 |
|
RETAINER, BODY SI R/WDO G/MLDG (PART OF 1) |
|
2005-2007 |
|
| 004 |
15748479 |
RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 9, 22) |
|
2005-2007 |
14 |
| 005 |
|
TRAY, R/CMPT SI T/PNL (PART OF 9) |
|
2005-2005 |
|
| 006 |
12450047 |
RETAINER, C/LTR HSG (PART OF 9) (BLACK) (21MM) (W/CAP)
| N257 (06) |
2005-2007 |
01 |
|
| 007 |
25774623 |
RECEPTACLE, ACSRY PWR (PART OF 9) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623)
| N257 |
2005-2007 |
02 |
|
| 008 |
25749635 |
RETAINER, ACSRY PWR RCPT (PART OF 9) (EBONY) (W/O CAP)
| N257 (06) |
2005-2006 |
01 |
|
| 009 |
10392648 |
PANEL, BODY SI TR (INCLS 4-8, 10, 11) (EBONY) |
N257 (06) |
2005-2007 |
01 |
| 010 |
15083089 |
SWITCH, DR LK (PART OF 9) (ACDelco #D1475E) |
N2 (06) |
2005-2007 |
01 |
| 011 |
|
PLUG, BODY SI T/PNL HOLE (PART OF 9) |
|
2005-2005 |
|
| 012 |
15058259 |
SWITCH, RR AIR SUSP C/VLV (SEE GROUP 07.000 LEVEL CONTROL SYSTEM FOR DETAILED ILLUSTRATED VIEW) |
N257 (06) (ZM6) |
2005-2005 |
01 |
| 013 |
15124700 |
BEZEL, INFLR AIR SW (EBONY) |
N257 (06) (ZM6) |
2005-2007 |
01 |
| 014 |
15111579 |
RETAINER, BODY SI T/PNL (PEWTER) (SHORT PUSH PIN) (16.742)
| N257 (06) |
2005-2007 |
02 |
|
| 015 |
10358736 |
MOLDING, BODY RR COR UPR GARN (INCLS 16-20) (EBONY) |
N2 (06) |
2005-2005 |
01 |
| 015 |
10358739 |
MOLDING, BODY RR COR UPR GARN (INCLS 16-20) (EBONY) |
N2 (06) |
2005-2005 |
01 |
| 016 |
15054683 |
ДИНАМИК, RDO BODY RR COR UPR GARN MLDG (PART OF 15) (ACDelco #15054683) |
N257 (06) |
2005-2007 |
02 |
| 017 |
|
GRILLE, RDO BODY RR COR UPR GARN MLDG SPKR (PART OF 15) |
|
2005-2005 |
|
| 018 |
|
БОЛТ, RDO BODY RR COR UPR GARN MLDG SPKR (PART OF 15) |
|
2005-2005 |
|
| 019 |
01635216 |
ГАЙКА, U-TYPE, 4.2X1.41, DIM A-15, DIM B-14 DIM C-8.65, 1050, PZOR (PART OF 15) |
|
2005-2007 |
02 |
| 020 |
15748479 |
RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 15) |
|
2005-2007 |
08 |
| 021 |
|
TRAY, R/CMPT SI T/PNL (PART OF 22) |
|
2005-2005 |
|
| 022 |
19150369 |
PANEL, BODY SI TR (INCLS 4, 21, 23) (EBONY) (WITHOUT WELL NUTS BUT HAS HOLES FOR PLUG 19150370) (FOR 1ST DES SEE 15832121) |
N257 (06) (2ND DES) |
2005-2005 |
01 |
| 023 |
|
NUT, SPA WHL CARR BOLT (PART OF 22) |
|
2005-2005 |
|
