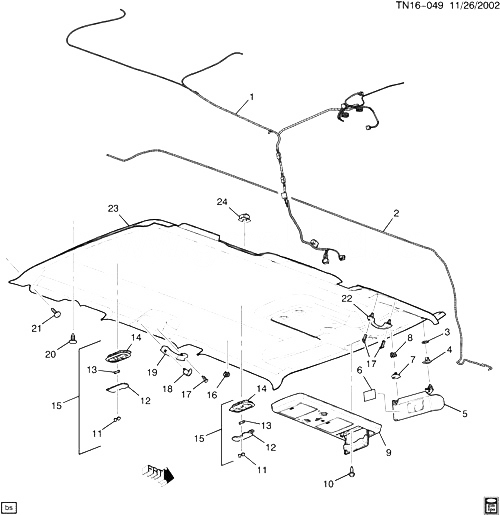

(TN16-049) - 2003-2007 N2(06) ОТДЕЛКА-ИНТЕРЬЕР-ROOF (EXC КРЫША С ЛЮКОМ CF5) HUMMER - H2 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 HARNESS, RF ACSRY WRG (PART OF 23) 2005-2007
002 15192801 HOSE, R/WDO WA PUMP (PART OF 23) N2 (06) (DK6) (EXC CF5) 2003-2007 01
003 CLIP, S/S SUPT (FOR SHIPPING ONLY) 2003-2007
004 BEZEL, S/S ROD (PART OF 5) 2003-2007
005 15938026 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (PART OF 23) (INCLS 4, 6-8) (GRAY) N2 (06) (DK6, DK8, 50I) 2003-2007 01
005 15938027 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (PART OF 23) (INCLS 4, 6-8) (GRAY) N2 (06-36) (DK6, DK8, 50I) 2003-2007 01
006 LABEL, CHILD ST WRNG (PART OF 5) 2003-2007
006 LABEL, INFL RST SYS WRNG (PART OF 5) 2003-2007
007 15877253 RETAINER, S/S (PART OF 5, 23) (GRAY) N2 (06) (DK6) (EXC CF5) 2005-2005 01
008 15877252 RETAINER, S/S (PART OF 5, 23) (GRAY) N2 (06) (DK6) (EXC CF5) 2005-2005 01
009 15222133 CONSOLE, RF (PART OF 23) (GRAY) (LONG CNSL) (USE T/W 19122215 FOR SPECIAL EDITION VEHS) N2 (DK6, 50I) (EXC CF5) 2005-2007 01
010 11515676 SCREW, FL WA HEX HD TAP, M6.3X1.69X20, NO (PART OF 23) 2003-2007 05
011 15166059 PUSHBUTTON, RDG LP SW (PART OF 23) (EBONY) N2 2003-2007 02
012 15032588 LENS, DM ; RDG LP (PART OF 15, 23) (3 BULB STYLE) N2 2003-2007 01
013 12450074 BULB, TRADE #578 (PART OF 15) (ACDelco #578) 2003-2007 03
014 15032587 HOUSING, DM ; RDG LP (PART OF 15) N2 2003-2007 01
015 15166932 LAMP, DM ; RDG (PART OF 23) (INCLS 12-14) (GRAY) N2 2003-2007 01
016 15075507 GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 23) (GRAY) N2 2003-2007 01
017 RETAINER, ASST HDL (PUSH ON) (PART OF 19) 2003-2007
018 HOOK, COAT (PART OF 19, 23) 2003-2007
019 15079241 HANDLE, ASST (INCLS 17, 18) (PART OF 23) (GRAY) (INCLS COAT HOOK) N2 2003-2007 01
019 15079242 HANDLE, ASST (INCLS 17, 18) (PART OF 23) (GRAY) (INCLS COAT HOOK) N2 2003-2007 01
020 11588305 RETAINER, HDLNG T/PNL (PUSH IN) (TO КРЫША С ЛЮКОМ MODULE) N257 (06-36) 2005-2007 02
021 15192013 RETAINER, HDLNG T/PNL (GRAY) (TO BODY) N257 (06) (50I) 2003-2007 10
022 15191516 HANDLE, ASST (INCLS 19) (PART OF 23) (GRAY) (INCLS RETAINER) N257 (06) (50I) 2003-2007 02
023 15222131 PANEL, HDLNG TR (INCLS 1, 2, 5, 7-12, 15, 16, 18, 19, 22, 24) (GRAY) (USED ON VEHICLES WITH 12193603 RELAY, 12110541 6-WAY CONNECTOR ; 12110542 TERMINAL LOCK BUILT PRIOR TO OCT 1, 2004) (FOR 2ND DES SEE 15827926) N257 (06) (DK6, 50I) (EXC CF5) (1ST DES) 2005-2005 01
023 15827926 PANEL, HDLNG TR (INCLS 1, 2, 5, 7-12, 15, 16, 18, 19, 22, 24) (GRAY) (USED ON VEHICLES BUILT ON/AFTER OCT 1, 2004 WITHOUT THE RELAY, 6-WAY CONNECTOR ; TERMINAL LOCK) (FOR 1ST DES SEE 15222131) N257 (06) (DK6) (EXC CF5) (2ND DES) 2005-2005 01
024 25903301 ASPIRATOR, I/S AIR TEMP SEN (PART OF 23) (ACDelco #15-51256) N2 2003-2007 01
