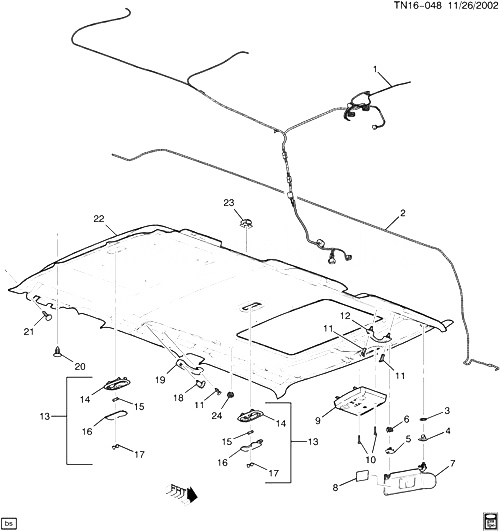

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, RF ACSRY WRG (PART OF 22) |
|
2005-2007 |
|
| 002 |
15192801 |
HOSE, R/WDO WA PUMP (PART OF 22) |
N2 (06) (CF5, DK8) |
2003-2007 |
01 |
| 003 |
|
CLIP, S/S SUPT (SHIPPING ONLY) |
|
2003-2007 |
|
| 004 |
|
BEZEL, S/S ROD (PART OF 7) |
|
2003-2007 |
|
| 005 |
15877252 |
RETAINER, S/S (INCLS 6) (GRAY) |
N2 (06) (CF5, DK8) |
2005-2005 |
01 |
| 005 |
15877253 |
RETAINER, S/S (INCLS 6) (GRAY) |
N2 (06) (CF5, DK8) |
2005-2005 |
01 |
| 006 |
|
RETAINER, S/S (PART OF 5, 22) |
|
2003-2007 |
|
| 007 |
15938026 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (PART OF 22) (INCLS 4, 8) (GRAY) |
N2 (06) (DK6, DK8, 50I) |
2003-2007 |
01 |
| 007 |
15938027 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (PART OF 22) (INCLS 4, 8) (GRAY) |
N2 (06-36) (DK6, DK8, 50I) |
2003-2007 |
01 |
| 008 |
|
LABEL, CHILD ST WRNG (PART OF 7) |
|
2003-2007 |
|
| 008 |
|
LABEL, INFL RST SYS WRNG (PART OF 7) |
|
2003-2007 |
|
| 009 |
|
CONSOLE, RF (SEE GROUP 16.000 КОНСОЛЬ-КРЫША (WITH КРЫША С ЛЮКОМ CF5) FOR DETAILED ILLUSTRATED VIEW) (PART OF 22) (INCLS 10) |
|
2003-2007 |
|
| 010 |
11509231 |
SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (PART OF 9)
|
2003-2007 |
02 |
|
| 011 |
|
RETAINER, ASST HDL (PUSH ON) (PART OF 12) |
|
2003-2007 |
|
| 012 |
15191516 |
HANDLE, ASST (RH FRT HEADLINER) (INCLS 11) (PART OF 22) (GRAY) (INCLS RETAINER) |
N2 (06) (50I) |
2003-2007 |
01 |
| 013 |
15166932 |
LAMP, DM ; RDG (PART OF 22) (INCLS 15-17) (GRAY) |
N257 |
2003-2007 |
01 |
| 014 |
15032587 |
HOUSING, DM ; RDG LP |
N2 |
2003-2007 |
01 |
| 015 |
12450074 |
BULB, TRADE #578 (PART OF 13) (ACDelco #578)
|
2003-2007 |
03 |
|
| 016 |
15032588 |
LENS, DM ; RDG LP (PART OF 13) (3 BULB STYLE) |
N2 |
2003-2007 |
01 |
| 017 |
15166059 |
PUSHBUTTON, RDG LP SW (PART OF 13) (EBONY) |
N2 |
2003-2007 |
02 |
| 018 |
|
HOOK, COAT (PART OF 19) |
|
2003-2007 |
|
| 019 |
15079241 |
HANDLE, ASST (RR HEADLINER) (INCLS 18) (GRAY) (INCLS COAT HOOK) |
N2 |
2003-2007 |
01 |
| 019 |
15079242 |
HANDLE, ASST (RR HEADLINER) (INCLS 18) (GRAY) (INCLS COAT HOOK) |
N2 |
2003-2007 |
01 |
| 020 |
11588305 |
RETAINER, HDLNG T/PNL (PUSH IN) (TO КРЫША С ЛЮКОМ MODULE) |
N257 (06-36) |
2005-2007 |
02 |
| 021 |
15192013 |
RETAINER, HDLNG T/PNL (GRAY) (TO BODY)
| N257 (06) |
2005-2007 |
10 |
|
| 022 |
15211577 |
PANEL, HDLNG TR (INCLS 1, 2, 6, 7, 9, 12, 13, 23, 24) (GRAY) (USED ON VEHICLES WITH 12193603 RELAY, 12110541 6-WAY CONNECTOR ; 12110542 TERMINAL LOCK BUILT PRIOR TO OCT 1, 2004) (FOR 2ND DES SEE 15938020) |
N257 (06) (CF5, DK8) (1ST DES) |
2005-2005 |
01 |
| 022 |
15938020 |
PANEL, HDLNG TR (INCLS 1, 2, 6, 7, 9, 12, 13, 23, 24) (GRAY) (USED ON VEHICLES BUILT ON/AFTER OCT 1, 2004 WITHOUT THE RELAY, 6-WAY CONNECTOR ; TERMINAL LOCK) (FOR 1ST DES SEE 15211577) |
N257 (06) (CF5, DK8) (2ND DES) |
2005-2005 |
01 |
| 023 |
25903301 |
ASPIRATOR, I/S AIR TEMP SEN (PART OF 22) (ACDelco #15-51256)
| N2 |
2003-2007 |
01 |
|
| 024 |
15075507 |
GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 22) (GRAY) |
N2 |
2003-2007 |
01 |
