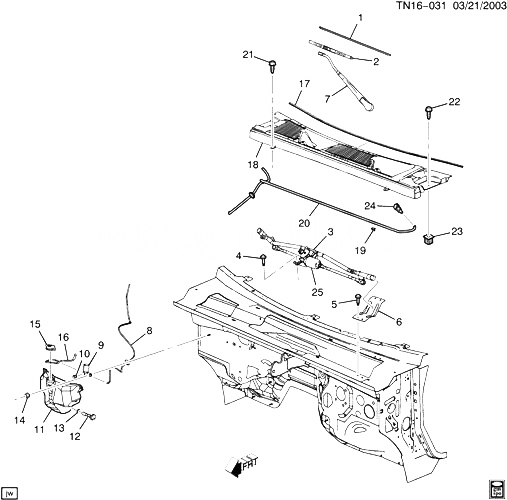

(TN16-031) - 2003-2007 N2(06) СТЕКЛООЧИСТИТЕЛЬ ВЕТРОВОГО СТЕКЛО HUMMER - H2 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88944326 WIPER, W/S (REFILL) (PART OF 2) (WINDSHIELD) N257 2003-2007 02
002 15060730 BLADE, WSW (INCLS WIPER AND BLADE) (INCLS 1) N257 2003-2007 02
003 15910773 MODULE, WSW SYS (INCLS 4, 25) N2 2003-2007 01
004 11517518 БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (PART OF 3) (ACDelco #11517518) 2003-2007 04
005 11517518 БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (WSW SYS MDL) (ACDelco #11517518) 2003-2007 04
006 15073838 SUPPORT, WSW SYS MDL N2 2003-2007 01
007 19120890 ARM, WSW (10.159) N2 2003-2007 01
007 19120891 ARM, WSW (10.159) (VEHICLES BUILT PRIOR 02/01/03 MUST REMOVE KEY FROM SPINDLE END OF ARM) N2 2003-2007 01
008 88944334 HOSE, WSWA SOLV CNTNR N2 2003-2007 01
009 88944337 PUMP, WSWA (INCLS 10) (ACDelco #88944337) N2 (06) 2003-2007 01
010 88944336 GROMMET, WSWA SOLV CNTNR (PART OF 9) N2 (06) 2003-2007 01
011 88944338 CONTAINER, WSWA SOLV (MAY REQUIRE IN-LINE HOSE CONNECTOR FITTING TO BE REMOVED) N2 2003-2007 01
012 88944331 INDICATOR, WSWA SOLV LVL (INCLS 13) N2 2003-2007 01
013 88944332 SEAL, WSWA SOLV LVL SW (PART OF 12) N2 2003-2007 01
014 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (WSWA SOLV CNTNR) 2003-2007 03
015 25731418 CAP, WSWA SOLV CNTNR (W/ISO SYMBOL) (10.154) N2 2003-2007 01
016 88944335 HOSE, WSWA RESVR TO PUMP N2 2003-2007 01
017 SEAL, AIR INL GRL PNL (PART OF 18) 2003-2007
018 25921207 PANEL, AIR INL GRL (CTR) (INCLS 17, 19, 20, 24) N2 (41U) 2003-2007 01
019 15078238 RETAINER, AIR INL GRL PNL (PART OF 18) (BLACK) (25X15.5) (ALSO REPLACES SILVER) (1.269) N2 2003-2007 04
020 15179645 HOSE, WSWA NOZ (PART OF 18) N2 2003-2007 01
021 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (F/END INR S/PNL GUSS) 2003-2007 08
022 11515007 SCREW, TORX, W/RD WA , M4.2X1.4X25, 11.1 OD, 6010M, NO (AIR INL GRL PNL) 2003-2007 02
023 11570654 NUT, AIR INL GRL PNL (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665) N2 2003-2007 02
024 15173510 NOZZLE, WSWA (PART OF 18) (SINGLE FAN SPRAY TYPE) N2 2003-2007 02
025 19120867 MOTOR, WSW (PART OF 3) (10.150) (ACDelco #19120867) N2 2005-2007 01
