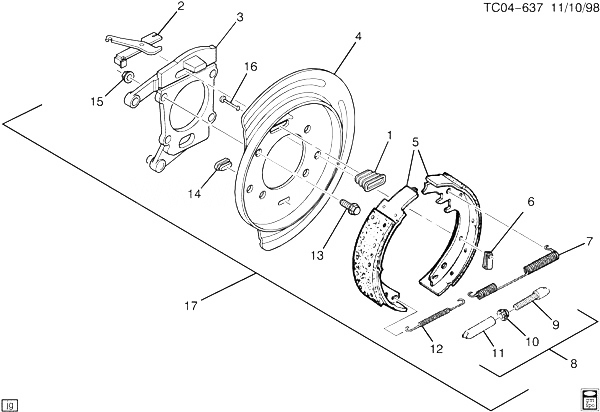

(TC04-637) - 2003-2007 N2 СТОЯНОЧНЫЙ ТОРМОЗ HUMMER - H2 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 BOOT, PARK BRK LVR (PART OF 4) (*KIT1, KIT4) 2003-2007
002 88965732 LEVER, RR PARK BRK N257 (JH6) 2003-2007 02
003 PLATE, RR BRK BKG (*KIT1) 2003-2007
004 SHIELD, RR BRK (INCLS 1, 14) (*KIT1, KIT4) 2003-2007
005 SHOE, PROP SHF PARK BRK (*KIT2) 2003-2007
006 CLIP, RR BRK (*KIT3) 2003-2007
007 SPRING, PARK BRK SHOE RTN (UPR) (*KIT3) 2003-2007
008 15817887 ADJUSTER KIT, RR PARK BRK (INCLS 9-11) N2 (JH6) 2003-2007 02
009 БОЛТ, PARK BRK SHOE ADJR (PART OF 8) 2003-2007
010 NUT, PARK BRK (PART OF 8) 2003-2007
011 SOCKET, RR PARK BRK ADJ (PART OF 8) 2003-2007
012 SPRING, PARK BRK SHOE RTN (LWR) (*KIT3) 2003-2007
013 БОЛТ, PARK BRK (*KIT1) 2003-2007
014 12473092 COVER, PARK BRK LVR OPG (PART OF 4) (*KIT1, KIT4) (5.158) N257 (GT5) 2003-2007 02
015 11516383 ГАЙКА, HFH LK 16X2X18.9 34.2 OD 10 7111M PREV TORQ (PARK BRK) 2003-2007 08
016 PIN, PARK BRK SHOE (*KIT3) 2003-2007
017 15888325 BRAKE, PARK (INCLS 1-16) N257 (LQ4, GT5, JH6) 2003-2005 02
K01 88965731 PLATE KIT, RR PARK BRK ANC BKG (INCLS 1, 3, 4, 13, 14) N257 (JH6) 2003-2005 02
K02 12473088 LINING KIT, PARK BRK SHOE (W/SHOES) (INCLS 5) (5.018) (ACDelco #171-818) N257 (GT5) 2003-2007 01
K03 15817888 SPRING KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #179-2228) N257 (JH6) 2003-2005 01
K03 19138397 SPRING KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #18K1618) (DURASTOP) N257 (06) (LQ4) 2004-2006 01
K03 19138397 SPRING KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #18K1618) (DURASTOP) N257 (36) (LQ4) 2005-2006 01
K03 88982587 SPRING KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #179-2172) N257 (JH6) 2003-2005 01
K04 15949893 SHIELD KIT, PARK BRK ACTR SPH (INCLS 1, 4, 14) N2 (JH6) 2004-2007 02
