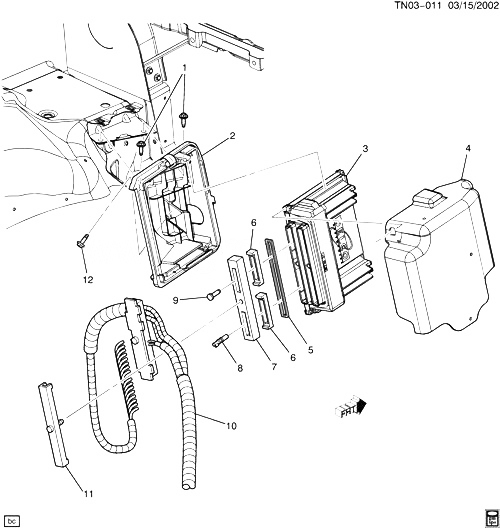

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PCM BRKT)
|
2003-2007 |
03 |
|
| 002 |
15047570 |
BRACKET, PCM |
N257 |
2003-2007 |
01 |
| 003 |
89017750 |
MODULE, PWRT CONT (REMAN) (CODE YHKU, YHKS, YDNF, YDNH, YDPD, YDPF, YHZU, YHZW, YJCN, YJCP, 2723, 2724, YJFW, YJFX, YFYD, YFYF, YFYA, YFYC, YMKH, YKYY, YMWY, YMWZ, YMSZ, YMTA, YNBN, YHZS, YNBR, YHZT) (REQUIRES PROGRAMMING) (ACDelco #89017750) |
N2 |
2004-2007 |
01 |
| 004 |
15071609 |
COVER, PCM |
N257 |
2003-2007 |
01 |
| 005 |
12048086 |
SEAL, WRG CONN (1.800) |
N257 |
2003-2007 |
02 |
| 006 |
|
RETAINER, ECM WRG HARN CONN |
|
2004-2007 |
|
| 007 |
12167308 |
CONNECTOR, MDL-PWRT CONT (INCLS SEAL, COVER, RETS) (W/O LEADS) (80-WAY FEMALE USE TERM 12084912 18 GA ; TERM 12084913 20 GA) |
N257 (06-36) |
2005-2006 |
02 |
| 008 |
12045773 |
TERMINAL, MALE 150 METRI-PACK, 18-20 GA (AIR DRYER) |
|
2003-2007 |
02 |
| 009 |
|
PLUG, WRG HARN CONN (PART OF 10) |
|
2003-2007 |
|
| 010 |
15238932 |
HARNESS, ENG WRG (INCLS 9) |
N257 (06-36) (LQ4) |
2005-2005 |
01 |
| 011 |
12193918 |
COVER, WRG HARN CONN |
N257 |
2003-2007 |
01 |
| 012 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PCM BRKT)
|
2003-2007 |
03 |
|
