| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

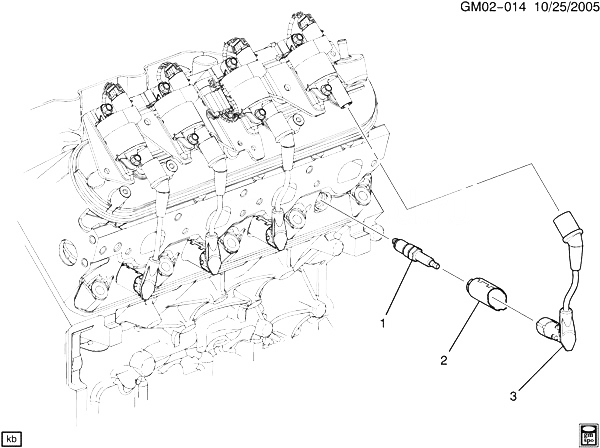

| 001 |
12609877 |
SPARK PLUG, (GAP 0.040) (ACDelco #41-985) (IRIDIUM) |
N257 (06-36) (LQ4, M32) |
2005-2007 |
08 |
| 002 |
15336959 |
SHIELD, SPLG WIRE (ACDelco #8006) |
N257 (06-36) (LQ4) |
2005-2007 |
08 |
| 003 |
12192133 |
WIRE, SPLG (10.5IN) (7MM DIA, 10.5LONG) (W/O HEAT SHLD) (IGN CABLE) (*KIT1) (ACDelco #349V) (USED W/COIL STMPD 12558693)
| N257 (06-36) (LQ4) |
2005-2007 |
08 |
|
| 003 |
12192195 |
WIRE, SPLG (DELPHI, 9.2IN) (7MM DIA, 9.2LONG) (W/O HEAT SHLD) (IGN CABLE) (*KIT1) (ACDelco #350R)
| N2 (LQ4, M32) |
2005-2007 |
08 |
|
| K01 |
88894393 |
WIRE KIT, SPLG (COILS STAMPED 19005218-DELPHI COIL, 7MM DIA, 9.2IN LG) (INCLS 3) (CONTAINS 8 WIRES) (ACDelco #748GG)
| N257 (06-36) (LQ4) |
2005-2007 |
01 |
|
| K01 |
88894394 |
WIRE KIT, SPLG (USED W/COILS STAMPED 12558693-MELCO COIL, 7MM DIA, 10.5IN LG) (INCLS 3) (ACDelco #748HH)
| N257 (06-36) (LQ4) |
2005-2007 |
01 |
|
