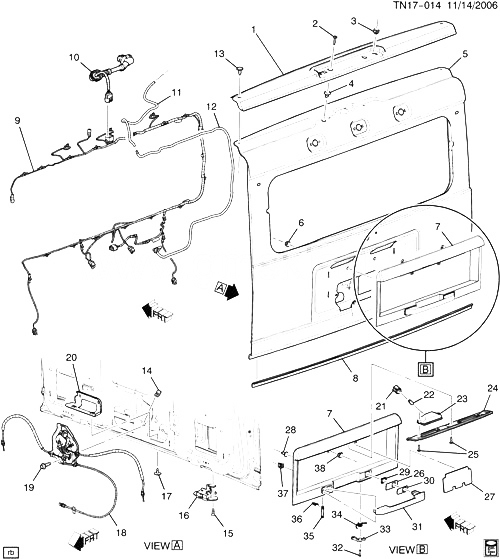

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25894803 |
APPLIQUE, L/GATE (INCLS 3) |
N2 (06) (E52) |
2003-2005 |
01 |
| 002 |
11515007 |
SCREW, TORX, W/RD WA , M4.2X1.4X25, 11.1 OD, 6010M, NO (L/GATE APLQ)
|
2003-2005 |
02 |
|
| 003 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 1) (10.701)
|
2003-2005 |
02 |
|
| 004 |
11609857 |
NUT - M4.2X1.41, SAE 1050 STL, GMW3044 (L/GATE APLQ) |
|
2003-2005 |
02 |
| 005 |
10384904 |
GATE, LIFT
| N2 (06) (E52) |
2003-2005 |
01 |
|
| 006 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RR LIC PLT PKT)
|
2003-2005 |
06 |
|
| 007 |
15135441 |
POCKET, RR LIC PLT (INCLS 21-26, 28-37) (BLACK) |
N257 (06) (EXC R13) |
2003-2005 |
01 |
| 007 |
15135442 |
POCKET, RR LIC PLT (INCLS 21-26, 28-37) (CHROME) |
N257 (06) (R13) |
2003-2005 |
01 |
| 008 |
21994821 |
MOLDING, L/GATE LWR (UPPER BEND FIXTURE MAY NOT BE REQD ON MY 2004 ; UP)
| N2 (06) (E52) |
2004-2005 |
01 |
|
| 009 |
15231078 |
HARNESS, L/GATE WRG (INCLS 12) |
N257 (06) |
2003-2005 |
01 |
| 009 |
15231078 |
HARNESS, L/GATE WRG (INCLS 12) (2.480) |
N257 (06) |
2003-2005 |
01 |
| 010 |
15231077 |
HARNESS, L/GATE JPR WRG (INCLS 11) |
N257 (06) |
2003-2005 |
01 |
| 011 |
15192802 |
HOSE, R/WDO WA NOZ (PART OF 10) (LIFT GATE SI) |
N257 (06) (E52) |
2003-2005 |
01 |
| 012 |
15179529 |
HOSE, R/WDO WA NOZ (PART OF 9) (BODY SI) |
N257 (06) (E52) |
2003-2005 |
01 |
| 013 |
21075686 |
RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (L/GATE APLQ) |
|
2003-2004 |
02 |
| 014 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (E/GATE LAT CONT) |
|
2003-2005 |
03 |
| 015 |
15157917 |
БОЛТ, L/GATE LAT (M8X1.25X30) |
N2 (06) (E52) |
2003-2005 |
04 |
| 016 |
15926026 |
LATCH, L/GATE (INCLS AJAR SWITCH) |
N2 (06) (E52) |
2003-2005 |
02 |
| 017 |
11519881 |
SCREW, ROUNDWA W/FL WA, M6X1X20, 9.5THD, 25.4OD, 9.8, 6280M, MACH, TORX, P-PT (L/GATE O/S HDL BRKT) (8.906) |
|
2003-2005 |
02 |
| 018 |
15926027 |
CONTROL, E/GATE LAT (INCLS CABLES, ACTUATOR, LEVER, LATCH, HANDLES)
| N2 (06) (E52) |
2003-2005 |
01 |
|
| 019 |
11516588 |
BOLT-HEX W/CON WA, M6X1X25, 19 THD, 17 OD, 9.8, 7114M, MACH, 6MM P-PT (E/GATE LAT CONT LVR) |
|
2003-2005 |
03 |
| 020 |
15067121 |
BRACKET, L/GATE O/S HDL PULL |
N2 (06) (E52) |
2003-2005 |
01 |
| 021 |
19120997 |
SOCKET, RR LIC PLT LP (PART OF 7, 23) (2-WAY FEMALE W/O LEADS) (2.697) (ACDelco #LS117) |
N257 (06) |
2003-2005 |
01 |
| 022 |
09421330 |
BULB, TRADE#194, 12V, 2CP (PART OF 7, 23) (ACDelco #L194) |
|
2003-2005 |
02 |
| 023 |
15060514 |
LAMP, RR LIC PLT (LOCATED ON POCKET, RR LIC PLT) (INCLS 21, 22) (PART OF 7) |
N257 (06) |
2003-2005 |
02 |
| 024 |
|
BEZEL, RR LIC PLT LP (PART OF 7) |
|
2003-2005 |
|
| 025 |
22549046 |
SCREW, M4.2X1.4X25, 11.1 O.D., 6010M, NZ (PART OF 7) |
|
2003-2005 |
07 |
| 026 |
|
SEAL, RR LIC PLT PKT (PART OF 7) |
|
2003-2005 |
|
| 027 |
10297058 |
INSULATOR, RR LIC PLT |
N257 (06) |
2003-2005 |
01 |
| 028 |
|
STUD, RR LIC PLT PKT (PART OF 7) |
|
2003-2005 |
|
| 029 |
|
BEZEL, L/GATE LAT REL ADAP HOLE (PART OF 7) |
|
2003-2005 |
|
| 030 |
|
SEAL, L/GATE O/S PULL HDL (PART OF 7) |
|
2003-2005 |
|
| 031 |
|
HANDLE, L/GATE O/S (PART OF 7) |
|
2003-2005 |
|
| 032 |
|
PIN, RR LIC PLT BRKT HGE (PART OF 7) |
|
2003-2005 |
|
| 033 |
|
LEVER, L/GATE O/S HDL (PART OF 7) |
|
2003-2005 |
|
| 034 |
|
SPRING, L/GATE O/S HDL P/BUT LVR (PART OF 7) |
|
2003-2005 |
|
| 035 |
|
PIN, RR LIC PLT BRKT HGE (PART OF 7) |
|
2003-2005 |
|
| 036 |
|
RETAINER, L/GATE O/S HDL (PUSH IN) (PART OF 7) |
|
2003-2005 |
|
| 037 |
15748479 |
RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 7) |
|
2003-2005 |
04 |
| 038 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RR LIC PLT)
|
2003-2005 |
AR |
|
