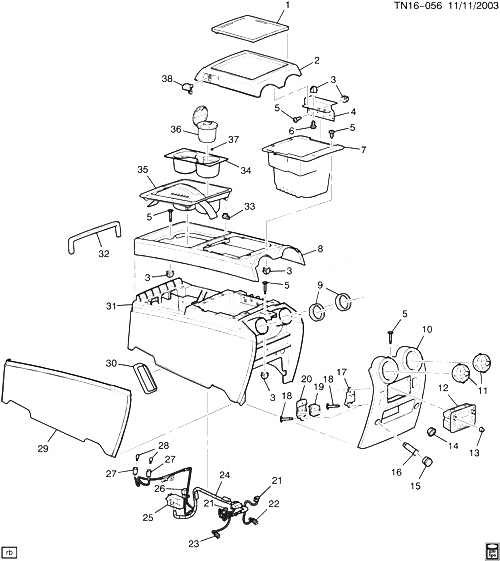

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
MAT, F/FLR CNSL STOR TRAY |
|
2003-2007 |
|
| 002 |
88986340 |
ДВЕРЬ, F/FLR COMPT (INCLS 4, 38) (WHEAT) (INCLS HINGE) |
N257 (50I) |
2003-2005 |
01 |
| 003 |
17988488 |
NUT, F/FLR CNSL COMPT (SILVER) (4.2 X 1.41) (PUSH-IN FOR 12MM SQ HOLE) (10.252) |
N2 |
2003-2006 |
22 |
| 004 |
88986339 |
HINGE, F/FLR CNSL COMPT DR (PART OF 2) |
N2 |
2003-2007 |
01 |
| 005 |
11515007 |
SCREW, TORX, W/RD WA , M4.2X1.4X25, 11.1 OD, 6010M, NO (PART OF 31)
|
2003-2007 |
06 |
|
| 006 |
11515894 |
SCREW, RD WA HD, C/R, M4.2X1.41X20, 6010M, PEOR, 15.5 THD, AB PT, 8.4 OD (PART OF 31)
|
2003-2007 |
02 |
|
| 007 |
|
TRAY, F/FLR COMPT STOR (PART OF 31) |
|
2003-2007 |
|
| 008 |
15079695 |
PANEL, F/FLR CNSL TR (PART OF 31) (SILVER) |
N257 (50I) |
2004-2004 |
01 |
| 008 |
15138572 |
PANEL, F/FLR CNSL TR (PART OF 31) (SILVER) |
N257 (50I) |
2004-2004 |
01 |
| 009 |
15079700 |
SEAL, F/FLR CNSL RR AIR OTLT DEFL (PART OF 31) |
N2 |
2003-2007 |
02 |
| 010 |
88986337 |
PANEL, F/FLR CNSL RR TR (PART OF 31) (SILVER) |
N257 (06) (50I) |
2003-2004 |
01 |
| 011 |
15116581 |
DEFLECTOR, F/FLR CNSL RR AIR OTLT |
N257 (06) |
2003-2004 |
02 |
| 012 |
15850810 |
CONTROL, AM/FM STEREO ; T/PLYR ; CD PLYR RDO (INCLS 13) (ACDelco #15850810)
| N257 (06) |
2003-2005 |
01 |
|
| 013 |
12205116 |
KNOB, RDO VOL CONT (PART OF 12) |
N257 (502, 50D) |
2003-2004 |
02 |
| 014 |
25749635 |
RING, F/FLR RR CNSL COMPT DR STRP (EBONY) (W/O CAP) (9.709)
| N2 |
2003-2007 |
01 |
|
| 015 |
12450047 |
RETAINER, C/LTR HSG (BLACK) (21MM) (W/CAP)
| N257 (06) |
2003-2007 |
01 |
|
| 015 |
25749635 |
RETAINER, C/LTR RCPT (EBONY) (W/O CAP)
| N257 (06) |
2003-2004 |
01 |
|
| 016 |
25774623 |
RECEPTACLE, ACSRY PWR (ACSRY PWR RECEPTACLE ASSEM LABELED 4623)
| N257 |
2003-2007 |
02 |
|
| 017 |
|
COVER, ЗАДНЕЕ СИДЕНЬЕ HTR SW OPG (PART OF 31) |
|
2003-2007 |
|
| 018 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (ЗАДНЕЕ СИДЕНЬЕ HTR SW BRKT) |
|
2003-2007 |
04 |
| 019 |
15083095 |
SWITCH, ЗАДНЕЕ СИДЕНЬЕ HTR
| N257 |
2003-2007 |
02 |
|
| 020 |
15182752 |
BRACKET, ЗАДНЕЕ СИДЕНЬЕ HTR SW |
N257 (502) |
2003-2004 |
02 |
| 021 |
12167130 |
CONNECTOR, SW-HTD ST (PART OF 24) (BLACK) (5-WAY FEMALE) (W/LEADS) (10.485) (ACDelco #PT796) |
N257 (06) |
2003-2004 |
02 |
| 022 |
15305923 |
CONNECTOR, RCPT-ACSRY PWR (PART OF 24) (GRAY) (3-WAY FEMALE) (W/LEADS) (ACDelco #PT1179) |
N257 |
2003-2007 |
AR |
| 023 |
15305923 |
CONNECTOR, RCPT-ACSRY PWR (PART OF 24) (GRAY) (3-WAY FEMALE) (W/LEADS) (ACDelco #PT1179) |
N257 |
2003-2007 |
AR |
| 024 |
15207136 |
HARNESS, F/FLR CNSL WRG (PART OF 31, INCLS 21-23, 25-27) (HAS 7 WIRES WITHIN 24-WAY RR SEAT RDO CONT CONN; FOR 2ND DES SEE 15230829) |
N257 (06) (1ST DES) |
2004-2004 |
01 |
| 024 |
15230829 |
HARNESS, F/FLR CNSL WRG (PART OF 31, INCLS 21-23, 25-27) (HAS 13 WIRES WITHIN 24-WAY RR SEAT RDO CONT CONN; FOR 1ST DES SEE 15207136) |
N257 (06) (2ND DES) |
2004-2004 |
01 |
| 025 |
12085669 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 24) (BLACK) (1-WAY MALE) (W/LEADS) (ACDelco #PT1223) |
N257 (06) |
2003-2004 |
01 |
| 025 |
15305872 |
CONNECTOR, INLINE-TO I/P HARN (SQUARE) (PART OF 24) (BLACK) (6-WAY MALE MP 280) (W/LEADS) (13.100) (ACDelco #PT1013) |
N257 (06) |
2004-2004 |
01 |
| 025 |
15306122 |
CONNECTOR, INLINE-TO I/P HARN (2IN WIDE) (PART OF 24) (BLACK) (16-WAY MALE) (W/LEADS) |
N257 (06) |
2003-2004 |
01 |
| 025 |
15317322 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 24) (GRAY) (22-WAY MALE) (W/O LEADS) |
N257 |
2003-2004 |
01 |
| 025 |
15317325 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 24) (GRAY) (22-WAY FEMALE) (W/O LEADS) |
N257 (06) |
2003-2004 |
01 |
| 025 |
15336219 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 24) (16-WAY FEMALE) (W/O LEADS) |
N257 (06) |
2003-2004 |
01 |
| 025 |
19181245 |
CONNECTOR, INLINE-TO I/P HARN (2IN WIDE) (PART OF 24) (BLACK) (16-WAY MALE) (W/O LEADS) |
N257 (06) |
2003-2004 |
01 |
| 025 |
88986245 |
CONNECTOR, INLINE-TO I/P HARN (GT280) (PART OF 24) (BLACK) (10-WAY MALE) (W/LEADS, GT280) (ACDelco #PT1595) |
N257 (06) (ZM6, Z83) |
2003-2004 |
01 |
| 025 |
88986246 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 24) (14-WAY MALE) (W/LEADS) (2.342) |
N257 (06) |
2003-2004 |
01 |
| 025 |
88986252 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 24) (BLACK) (12-WAY MALE) (W/LEADS) |
N257 (06) |
2003-2004 |
01 |
| 025 |
88986253 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 24) (46.3MM WIDE) (12-WAY FEMALE W/LEADS) |
N257 (06) (ZM6, Z83) |
2003-2004 |
01 |
| 025 |
88986267 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 24) (BLACK) (34.6MM WIDE) (12-WAY FEMALE) (W/LEADS) |
N257 (06) |
2003-2004 |
01 |
| 025 |
88987998 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 24) (YELLOW) (4-WAY MALE) (M/P 280) (W/LEADS) (16.712) (ACDelco #PT2038) |
N257 (06) |
2003-2004 |
01 |
| 026 |
12177258 |
CONNECTOR, INLINE-TO BODY HARN (RR DOOR) (PART OF 24) (17-WAY MALE W/O LEADS) (13.100) |
N257 (06) |
2003-2004 |
02 |
| 026 |
15306039 |
CONNECTOR, INLINE-TO BODY HARN (PART OF 24) (16-WAY MALE W/LEADS) (16.490) (ACDelco #PT1199) |
N257 (06) |
2003-2004 |
01 |
| 026 |
15306186 |
CONNECTOR, INLINE-TO BODY HARN (PART OF 24) (YELLOW) (4-WAY FEMALE) (W/LEADS) (14.865) (ACDelco #PT1344) |
N257 (06) |
2003-2004 |
01 |
| 026 |
15317322 |
CONNECTOR, INLINE-TO BODY HARN (PART OF 24) (GRAY) (22-WAY MALE) (W/O LEADS) |
N257 (06) |
2003-2004 |
01 |
| 026 |
15326018 |
CONNECTOR, INLINE-TO BODY HARN (PART OF 24) (12-WAY MALE W/O LEADS) |
N257 (06) |
2003-2006 |
01 |
| 026 |
15326942 |
CONNECTOR, INLINE-TO BODY HARN (PART OF 24) (12-WAY MALE) (W/O LEADS) |
N257 (06) |
2003-2004 |
01 |
| 026 |
88986250 |
CONNECTOR, INLINE-TO BODY HARN (PART OF 24) (BLACK) (8-WAY MALE) (W/LEADS) (UNSEALED) (ACDelco #PT1570) |
N257 (06) |
2003-2004 |
01 |
| 026 |
88986321 |
CONNECTOR, INLINE-TO BODY HARN (PART OF 24) (16-WAY MALE) (W/O LEADS) (GT150/280) |
N257 (06) |
2003-2004 |
01 |
| 027 |
12167138 |
SOCKET, A/TRNS DIAL IND LP (PART OF 24) (BLACK) (2-WAY FEMALE) (W/LEADS) (USES 09421330/L194 BULB) (2.485) (ACDelco #LS71) |
N257 (06) |
2003-2004 |
02 |
| 028 |
09425542 |
BULB, LAMP #192 (PART OF 31) (ACDelco #L168) |
|
2003-2007 |
01 |
| 029 |
|
CARPET (PART OF 31) |
|
2003-2007 |
|
| 030 |
15079701 |
SEAL, F/FLR CNSL RR AIR DUCT (PART OF 31) |
N2 |
2003-2007 |
01 |
| 031 |
88986338 |
CONSOLE, F/FLR (INCLS 5-10, 17, 24, 28-30, 32) (WHEAT) (LESS REAR PNL) |
N257 (06) (50I) |
2003-2007 |
01 |
| 032 |
|
SEAL, F/FLR CNSL FRT (PART OF 31) |
|
2003-2007 |
|
| 033 |
12338108 |
CLIP, F/FLR CNSL TR PLT (TYPE U SPR CLIP) (PART OF 35) (9.665) (ACDelco #12338108)
| N2 (06) |
2003-2007 |
01 |
|
| 034 |
88986381 |
LINER, F/FLR CNSL CUP HLDR (BLACK)
| N257 (06) (50I) |
2003-2007 |
01 |
|
| 035 |
15137654 |
BEZEL, A/TRNS CONT OPG CVR (INCLS 33) |
N257 (M32, 50I) |
2003-2004 |
01 |
| 036 |
22611384 |
ASHTRAY, F/FLR CNSL (INCLS 37) (BLACK) (TALL STYLE) (PLSTC) (W/O C/LTR) (10.242)
| N2 (DT4) |
2003-2007 |
01 |
|
| 037 |
22611450 |
BUMPER, F/FLR CNSL ASHTRAY DR (PART OF 36) (BLACK) (10.242) |
N257 (06) |
2003-2004 |
01 |
| 038 |
88986341 |
PUSHBUTTON, F/FLR CNSL COMPT DR LAT (PART OF 2) |
N2 |
2003-2005 |
01 |
