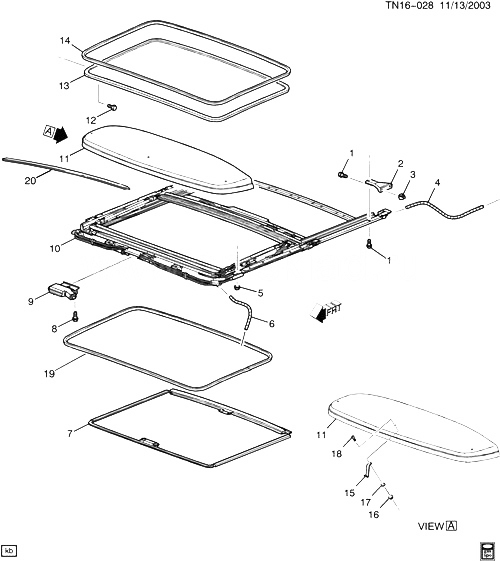

(TN16-028) - 2003-2004 N2(06) КРЫША С ЛЮКОМ (CF5) HUMMER - H2 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11609540 БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (SUN RF MDL) 2003-2004 06
002 15172448 BRACKET, SUN RF MDL N2 2003-2004 02
003 11517769 NUT-PANEL, M6X1, 12.7X19.9 SLOT, .7-1 PANEL, 1050, 7111M, 2/RETENT TABS (SUN RF MDL) 2003-2004 04
004 15129966 HOSE, SUN RF HSG RR DRN N2 (06) 2003-2004 02
005 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (SUN RF MDL) 2003-2004 06
006 15131165 HOSE, SUN RF HSG FRT DRN N2 2003-2004 02
007 25810301 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, SUN RF (GRAY) N2 2003-2004 01
008 88944364 БОЛТ, SUN RF ACTR MOT N2 (06) (CF5) 2003-2004 01
009 88944363 MOTOR, SUN RF ACTR N2 (06) (CF5) 2003-2004 01
010 25810291 FRAME, SUN RF N2 2003-2004 01
011 15174963 DEFLECTOR, SUN RF AIR (INCLS 15-18) (HAS THREE ATTACHMENT CLIPS) (FOR 2ND DES SEE 19178431) N2 (1ST DES) 2004-2004 01
011 19178431 DEFLECTOR, SUN RF AIR (INCLS 15-18) (16.585) (HAS TWO ATTACHMENT CLIPS) (FOR 1ST DES SEE 15174963) N2 (2ND DES) 2004-2004 01
012 БОЛТ, SUN RF WDO (PART OF 13) 2003-2004
013 15781625 WINDOW, SUN RF (INCLS 12, 14) N2 2003-2004 01
014 WEATHERSTRIP, SUN RF WDO (PART OF 13) 2003-2004
015 88980299 ATTACHMENT KIT, SUN RF AIR DEFL (PART OF 11) (INCLS 16-18) (HAS THREE ATTACHMENT CLIPS) (FOR 2ND DES SEE 89044574) N2 (1ST DES) 2004-2004 01
015 89044574 ATTACHMENT KIT, SUN RF AIR DEFL (PART OF 11) (INCLS 16-18) (INCLS BOLTS) (HAS TWO ATTACHMENT CLIPS) (FOR 1ST DES SEE 88980299) N257 (06) (2ND DES) 2004-2004 01
016 NUT, SUN RF A/DFL (PART OF 11, 15) 2003-2004
017 WASHER, SUN RF A/DFL (PART OF 11, 15) 2003-2004
018 БОЛТ, SUN RF A/DFL (PART OF 11, 15) 2003-2004
019 15191528 MOLDING, SUN RF PNL/WDO GARN (GRAY) N2 (06) (CF5) 2003-2004 01
020 15183665 PROTECTOR, SUN RF HSG EDGE N257 (06) (CF5) 2003-2004 01
