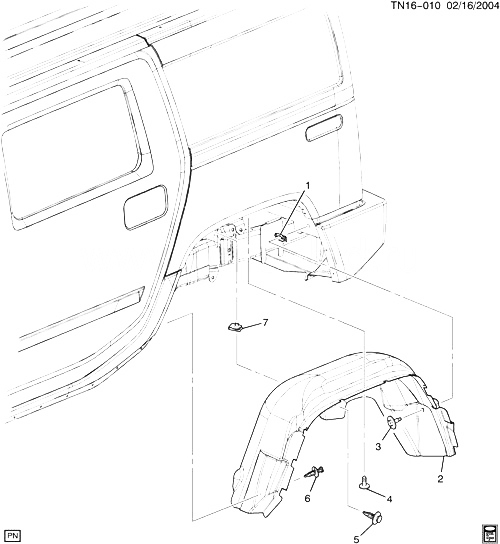

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11517769 |
NUT-PANEL, M6X1, 12.7X19.9 SLOT, .7-1 PANEL, 1050, 7111M, 2/RETENT TABS (RR W/H PNL SIGHT SHLD) |
|
2003-2009 |
02 |
| 002 |
15111879 |
SHIELD, RR W/H PNL SIGHT
| N2 |
2003-2009 |
01 |
|
| 002 |
15111880 |
SHIELD, RR W/H PNL SIGHT
| N2 |
2003-2009 |
01 |
|
| 003 |
11517347 |
БОЛТ, HEX HD, W/FL WA, M6X1X20, 9 THD, 24 O.D., P-PT, 9.8, SN-ZN (RR W/H PNL SIGHT SHLD)
|
2003-2009 |
02 |
|
| 004 |
11515007 |
SCREW, TORX, W/RD WA , M4.2X1.4X25, 11.1 OD, 6010M, NO (RR W/H PNL SIGHT SHLD)
|
2003-2009 |
06 |
|
| 005 |
11561878 |
RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (RR W/H PNL SIGHT SHLD)
|
2003-2009 |
04 |
|
| 006 |
10134407 |
RETAINER, RR W/H PNL SIGHT SHLD (EBONY) (17.8 X 6.3 X 20.4MM) (NYLON) (ROUND PUSH-IN INCLS PUSH BUTTON LOCK) (1.272)
| N257 (06) |
2003-2004 |
02 |
|
| 007 |
11513599 |
ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (RR W/H PNL SIGHT SHLD) (ACDelco #11513599) |
|
2003-2009 |
06 |
