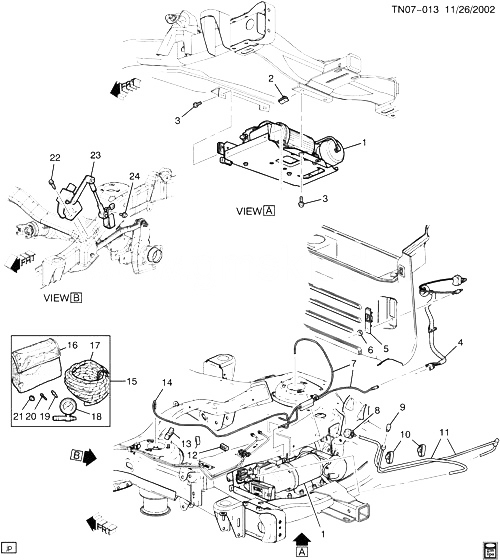

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
COMPRESSOR, AUTO LVL CONT AIR (SEE GROUP 7.000COMPRESSOR ASM FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2004 |
|
| 001 |
89060585 |
MODULE, AUTO LVL CONT |
N257 (06) (ZM6) |
2003-2004 |
01 |
| 002 |
10297656 |
NUT, AUTO LVL CONT AIR CMPR (7.068) |
N257 (06) |
2003-2004 |
02 |
| 003 |
11515767 |
БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (AUTO LVL CONT AIR CMPR) (T/W 12345493)
|
2003-2004 |
04 |
|
| 004 |
15058259 |
SWITCH, RR AIR SUSP C/VLV (INCLS 6) |
N257 (06) (ZM6) |
2003-2004 |
01 |
| 005 |
15187885 |
BEZEL, INFLR AIR SW (WHEAT) |
N257 (06) (ZM6, 50I) |
2003-2004 |
01 |
| 006 |
|
NUT (PART OF 4) |
|
2003-2004 |
|
| 007 |
25903601 |
TUBE, AUTO LVL CONT AIR CMPR
| N257 (06) (ZM6) |
2003-2004 |
01 |
|
| 008 |
|
FILTER (PART OF 11) |
|
2003-2004 |
|
| 009 |
|
CAP (PART OF 11) |
|
2003-2004 |
|
| 010 |
11561434 |
CLIP, RR BRK FRT PIPE (59.4X20.0X36.0) (HOLDS TWO 6.65 DIA TUBES AND ONE 10 DIA TUBE, NYLON 6/6-BLACK) |
N257 (06) (JH6) |
2003-2004 |
01 |
| 011 |
15181857 |
TUBE, AUTO LVL CONT AIR CMPR INL (INCLS 8-10) |
N2 (ZM6) |
2003-2004 |
01 |
| 012 |
15065034 |
CLIP, RR BRK FRT PIPE |
N257 (06) (JH6) |
2003-2004 |
06 |
| 013 |
15050269 |
CLIP, RR BRK FRT PIPE (BLACK) (3-6.35MM, 1-17.5MM) (PUSH PIN W/4 HOLES) |
N257 (06) (JH6) |
2003-2004 |
03 |
| 014 |
15178511 |
TUBE, AUTO LVL CONT AIR CMPR
| N257 (06) (ZM6) |
2003-2004 |
01 |
|
| 015 |
10433823 |
TOOL KIT, ACSRY (INCLS 16-21) (INCLS BAG, HOSE, CHUCK, NEEDLE, NOZZLE) |
N2 (YE2) |
2003-2004 |
01 |
| 016 |
|
BAG, ACSRY TOOL KIT (PART OF 15) |
|
2003-2004 |
|
| 017 |
|
HOSE, INFLR (PART OF 15) |
|
2003-2004 |
|
| 018 |
|
GAGE, TIRE PRESS (PART OF 15) |
|
2003-2004 |
|
| 019 |
|
NEEDLE, INFLR HOSE (PART OF 15) |
|
2003-2004 |
|
| 020 |
|
NEEDLE, INFLR HOSE (PART OF 15) |
|
2003-2004 |
|
| 021 |
|
CHUCK, INFLR HOSE (PART OF 15) |
|
2003-2004 |
|
| 022 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (AUTO LVL CONT SEN)
|
2003-2004 |
04 |
|
| 023 |
15124929 |
ДАТЧИК, AUTO LVL CONT (ALSO ORDER 88964339 HARNESS)
| N2 (ZM6) |
2003-2004 |
01 |
|
| 023 |
15124930 |
ДАТЧИК, AUTO LVL CONT (ALSO ORDER 88964339 HARNESS)
| N2 (ZM6) |
2003-2004 |
01 |
|
| 024 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (AUTO LVL CONT SEN LINK BRKT) (T/W 12345493 REPLCS 25534835)
|
2003-2004 |
02 |
|
