| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15142719 |

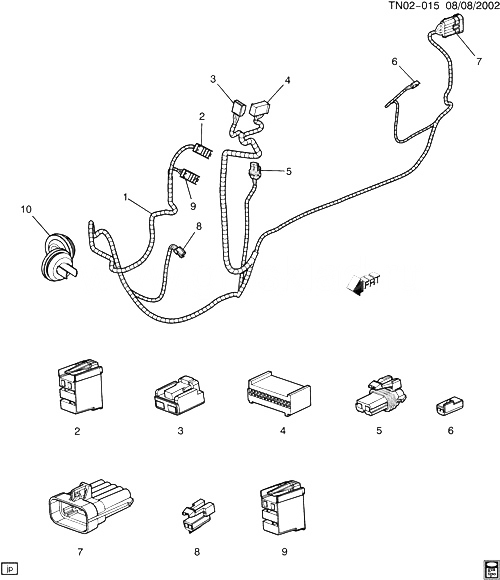

HARNESS, FRT S/D DR WRG (INCLS 2-10) |
N257 (06) |
2003-2004 |
01 |
| 001 |
15292411 |
HARNESS, FRT S/D DR WRG (INCLS 2-10) |
N257 (06) |
2003-2004 |
01 |
| 002 |
15306107 |
CONNECTOR, GND BLK (PART OF 1) (BLACK) (6-WAY F W/LEADS) (2.530) (ACDelco #PT1268) |
N2 |
2003-2007 |
01 |
| 003 |
88986436 |
CONNECTOR, SW-SI WDO ; M/FUNC (PART OF 1) (4-WAY FEMALE W/LEADS) (10.777) |
N257 (06) |
2003-2004 |
01 |
| 004 |
88987996 |
CONNECTOR, SW-SI WDO ; M/FUNC (PART OF 1) (26-WAY FEMALE) (W/O LEADS) (WITH THREE RETAINERS W/LEVERS) |
N257 (06) |
2003-2004 |
01 |
| 005 |
12129487 |
CONNECTOR, MOT-WDO REG (PART OF 1) (GRAY) (2-WAY FEMALE W/O LEADS) (10.783) |
N257 |
2003-2006 |
02 |
| 005 |
88988609 |
CONNECTOR, MOT-WDO REG (PART OF 1) (GRAY) (2-WAY FEMALE) (W/LEADS) (10.783) (ACDelco #PT2072) |
N257 (06) |
2003-2004 |
02 |
| 006 |
12085535 |
CONNECTOR, LP-CTSY (SQUARE) (PART OF 1) (BLACK) (2-WAY FEMALE) (W/LEADS) (SQUARE) (2.535) (ACDelco #PT146)
| N257 (06) |
2003-2004 |
02 |
|
| 007 |
88952463 |
CONNECTOR, MOT-DR LK ACTR (PART OF 1) (10-WAY FEMALE) (W/O LEADS) (9.765) (ACDelco #88952463) |
N257 (06) |
2003-2004 |
01 |
| 008 |
12101825 |
CONNECTOR, SPKR-RDO (PART OF 1) (BLACK) (2-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT217) |
N257 (06) |
2003-2004 |
02 |
| 009 |
15306198 |
CONNECTOR, BLK-I/P WRG JUNC (PART OF 1) (BLACK) (12-WAY FEMALE W/LEADS) (ACDelco #PT1353) |
N257 (06) |
2003-2004 |
01 |
| 010 |
15369323 |
GROMMET, FRT S/D DR WRG HARN (PART OF 1) |
N257 |
2003-2007 |
02 |
