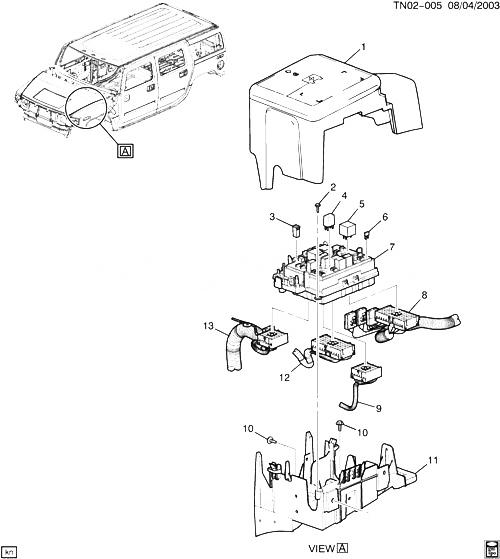

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15811689 |
COVER, ENG WRG HARN J/BLK |
N257 (06) |
2003-2004 |
01 |
| 002 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (ENG WRG HARN J/BLK)
|
2003-2007 |
02 |
|
| 003 |
15319477 |
FUSE, 30AMP, PINK, J-CASE, FEMALE, REGULAR (PART OF 7)
|
2003-2007 |
AR |
|
| 003 |
15319478 |
FUSE, 40AMP, GREEN, J-CASE, FEMALE (PART OF 7) (ACDelco #15319478)
|
2003-2007 |
AR |
|
| 003 |
15319479 |
FUSE, 50 AMP, RED, J-CASE, FEMALE, REGULAR BLOW (PART OF 7) |
|
2003-2007 |
AR |
| 003 |
15319480 |
FUSE, 60 AMP, YELLOW, J-CASE, FEMALE, REGULAR BLOW (PART OF 7) |
|
2003-2007 |
AR |
| 004 |
19115080 |
RELAY, HDLP HIGH BEAM (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| N257 |
2003-2007 |
01 |
|
| 004 |
19115080 |
RELAY, HDLP LOW BEAM (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| N257 |
2003-2007 |
01 |
|
| 004 |
19115080 |
RELAY, СИГНАЛ (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| N257 |
2003-2007 |
01 |
|
| 004 |
19115080 |
RELAY, F/PMP (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| N2 (LQ4) |
2003-2007 |
01 |
|
| 004 |
19115080 |
RELAY, A/C CMPR (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| N257 (06) |
2003-2004 |
01 |
|
| 004 |
19115080 |
RELAY, WSWA PUMP (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| N2 (LQ4) |
2003-2007 |
01 |
|
| 004 |
19115082 |
RELAY, DAYTIME RUNNING LP (5-WAY, HI-PWR, W/RESISTOR, UNSHROUDED, BLACK, MICRO, CODE 7866) (PART OF 7) (STDT 280 MICRO) (1.055) (ACDelco #15-50448)
| N257 |
2003-2007 |
01 |
|
| 005 |
12177236 |
RELAY, STRTR (4 TERM) (PART OF 7) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (LABELED 12177236) (9.778) (ACDelco #D7065C)
| N257 (LQ4) |
2003-2004 |
01 |
|
| 005 |
12177236 |
RELAY, IGN (4 TERM) (PART OF 7) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (LABELED 12177236) (9.778) (ACDelco #D7065C)
| N257 (DL7) |
2003-2004 |
01 |
|
| 005 |
12177236 |
RELAY, PARK LP (4 TERM) (PART OF 7) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (LABELED 12177236) (9.778) (ACDelco #D7065C)
| N257 (06) |
2003-2004 |
01 |
|
| 006 |
12092079 |
FUSE, 10A, MINI, RED (PART OF 7) |
|
2003-2007 |
AR |
| 006 |
88909754 |
FUSE, 15A, MINI, BLUE (PART OF 7) (ACDelco #ATM15-25)
|
2003-2007 |
AR |
|
| 006 |
88909755 |
FUSE, 20A, MINI, YELLOW (PART OF 7) (ACDelco #ATM20-25)
|
2003-2007 |
AR |
|
| 006 |
88909756 |
FUSE, 25A, MINI, CLEAR (PART OF 7) (ACDelco #ATM25-25)
|
2003-2007 |
AR |
|
| 006 |
88909771 |
LT GREEN (PART OF 7) (ACDelco #MAX30-5)
|
2003-2007 |
AR |
|
| 007 |
15786043 |
BLOCK, ENG WRG HARN JUNC (INCLS 3-6) (W/60 AMP J-CASE FUSE)
| N257 (06) |
2003-2004 |
01 |
|
| 008 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2007 |
|
| 009 |
|
HARNESS, FWD LP WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ФАРЫ FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2007 |
|
| 010 |
11609540 |
БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (ENG WRG HARN FUSE BLK BRKT)
|
2003-2007 |
04 |
|
| 011 |
15175348 |
BRACKET, ENG WRG HARN FUSE BLK (USED TO MOUNT U/H BEC)
| N257 |
2003-2007 |
01 |
|
| 012 |
|
HARNESS, ENG WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ДВИГАТЕЛЬ FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2007 |
|
| 013 |
|
HARNESS, CHAS WRG (SEE GROUP 02.000 ЖГУТ ПРОВОДОВ/CHASSIS FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2007 |
|
